Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
21
Edition: May 20, 2005 3646/110 --233.DOC010302
2.4 Installing the compass and putting it into operation
2.4.1 Remove the transportation support with outer sphere, supporting liquid
and distilled water.
-- Undo the 4 screws (Figure 6 /1) at the top and bottom of the enclosure door,
lift out the door and detach the earthing strip (Figure 6/2)
on the inside of the door.
-- Carefully remove the transport packaging with the outer sphere and the two bottles
containing supporting liquid and distilled water from the compass enclosure.
-- Take the outer sphere out of the transport packaging and place it on the
base plate; the outer sphere must be secured to prevent it from tilting
Caution:
Danger of tilting!
1
1
2

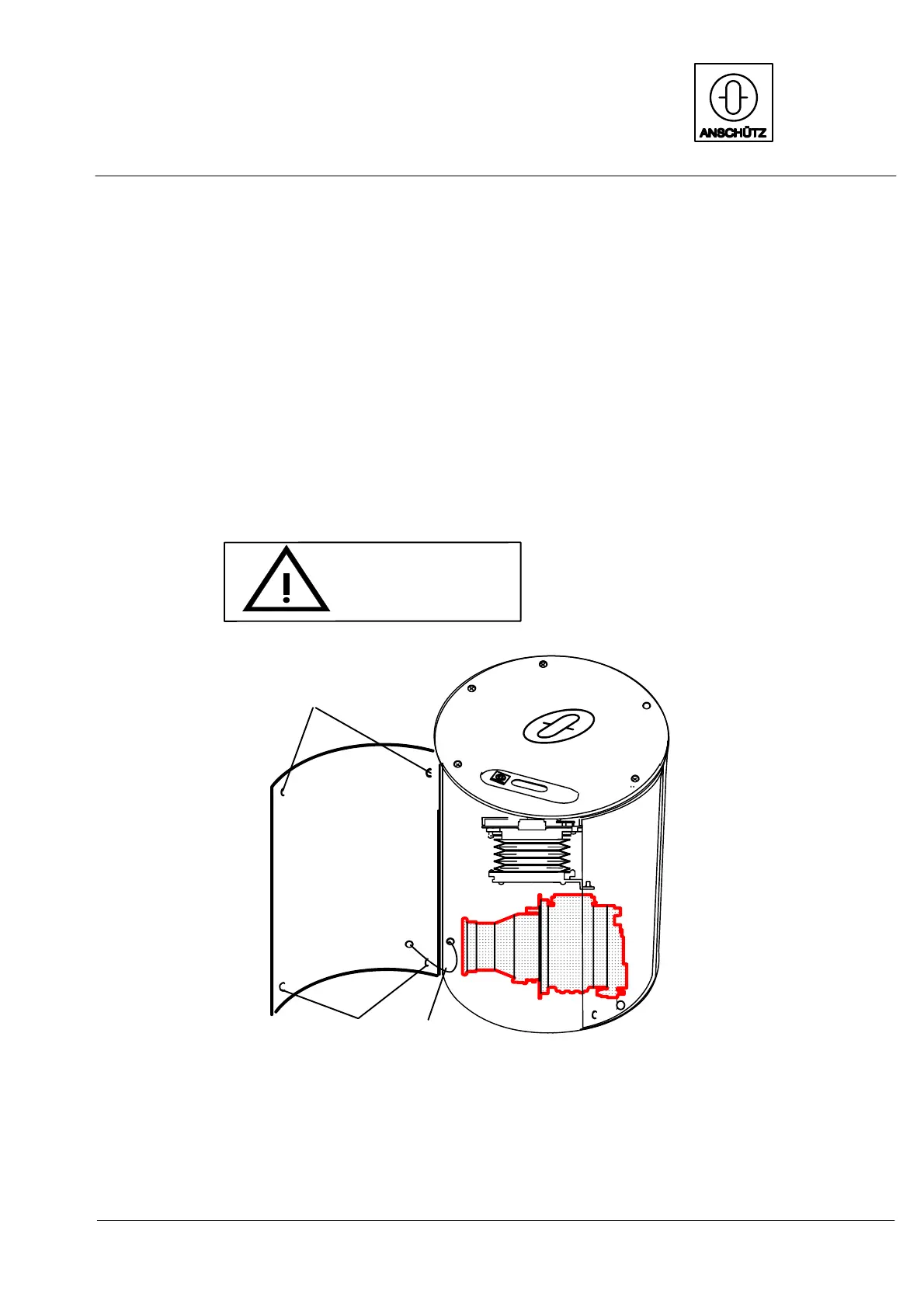

Figure 6: Principle of dismantling the enclosure door
