Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
47
Edition: May 20, 2005 3646/110 --233.DOC010302
2.6.3.1 Installing the Operator Unit Quick--Settling
NOTE: Detailed dimensions can be found in drawing 130 E 606.HP005.
For connecting the Operator Unit Quick Settling, see also Cable and
Connection diagram STD 22 Compact 110--233.HP010.
The Operator Unit Quick Settling is designed for desk mounting.
When installing ensure there is sufficient clearance underneath the operator unit
(minimum 32mm, see drilling scheme)
The Operator Unit Quick Settling can be fixed in a panel up to 17 mm thick.
red
blue
blue
+
yellow
1
2
1
2
3
4
Terminal L1
to STD 22
Compact
Compass

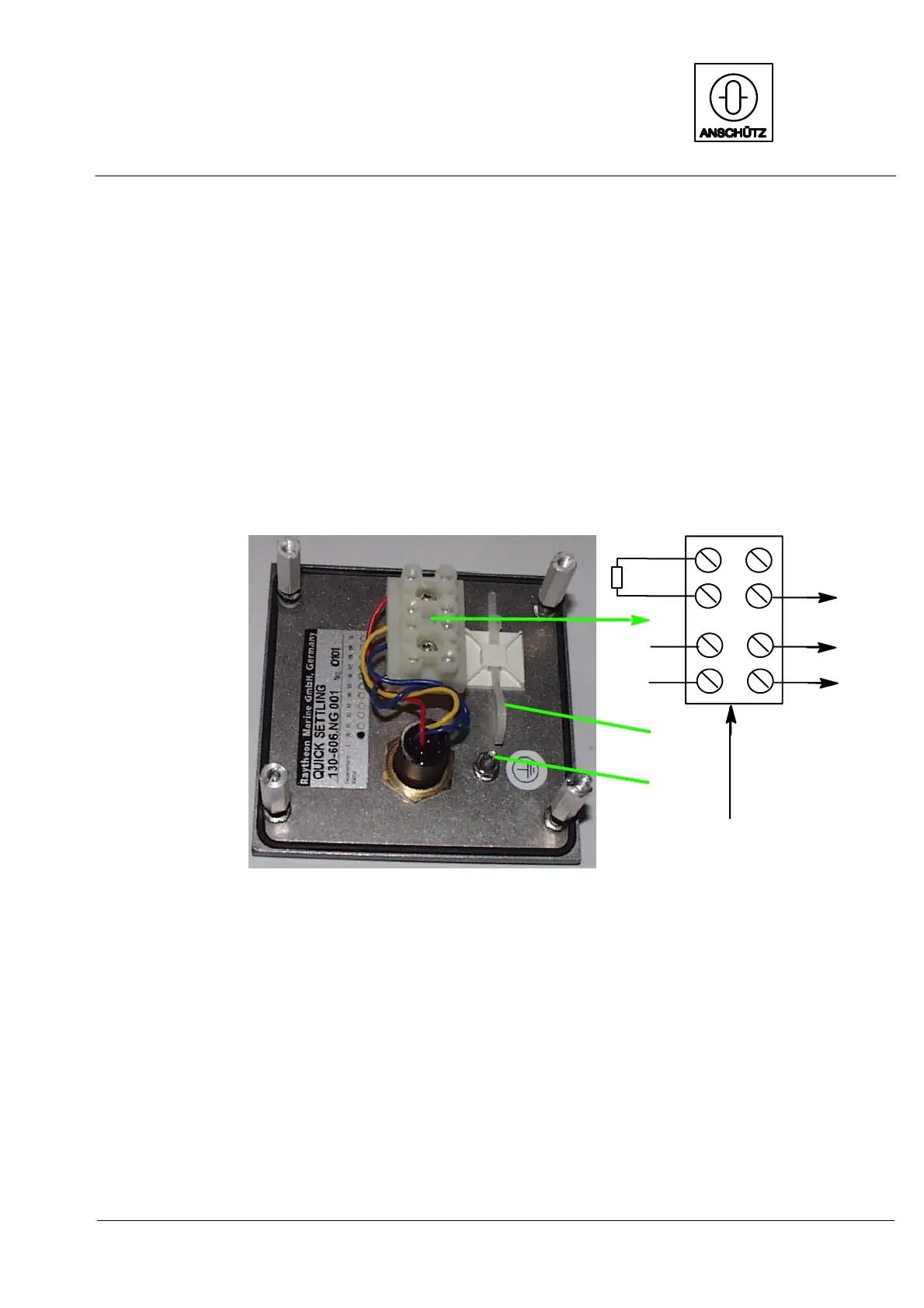

Figure 26: Operator Unit Quick Settling (rear view)
The Operator Unit Quick Settling should be connected to the compass by a cable which
meets the following minimum requirements (see also Figure 27).
-- 4 x 0 , 5
2
mm with screen
-- 1 x 0 , 5
2
mm (for jumper to be installed)
The screening of the cable is connected to earth in the Operator Unit Quick Settling
(Figure 26/2).
The cable is fastened with the strain relief (cable grip) (Figure 26/1) in the Operator Unit
Quick--Settling.
