Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
19
Edition: May 20, 2005 3646/110 --233.DOC010302
Supply voltage
Coursebus
CAN bus
Function “Quick Settling”
Note: The connection cables should be shortened in that
way, that they could be led to the terminal boards
without mechanical stress.
Too long connection cables will lead to EMC problems.
For the cable--type see respective drawing at the appendix.

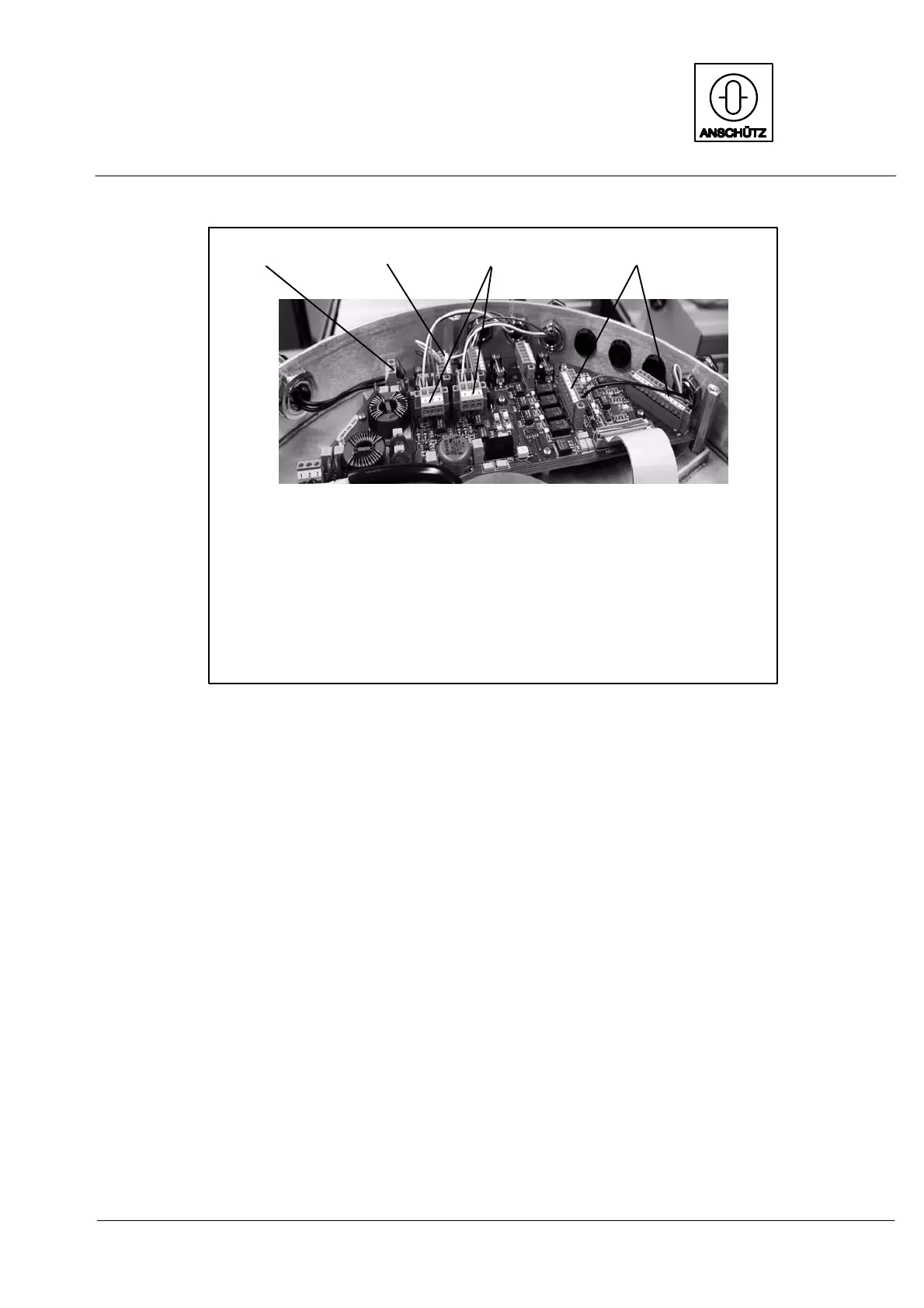

Figure 4: Example of a proper cable connection
-- Place the earthing insert, strain relief and washer in the
cable entry; fit and tighten the counter nut.
-- Strip the cable conductors to a length of about 1.5 cm, lightly twist them and fit cable end
sleeves. Connect the cable conductors according to respective drawings and tables.
Tighten the terminal screws check the connection is secure by pulling gently.
