Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
59
Edition: July 1, 2005 3646/110 --233.DOC010302
2.6.4.7 Setting the information source for Speed Error Correction
Unscrew and remove the cover of the compass housing.
Button B39
Button B38
DIP switch B37
Display
Button B39
Button B38 B37 DIP switch
Display
E10

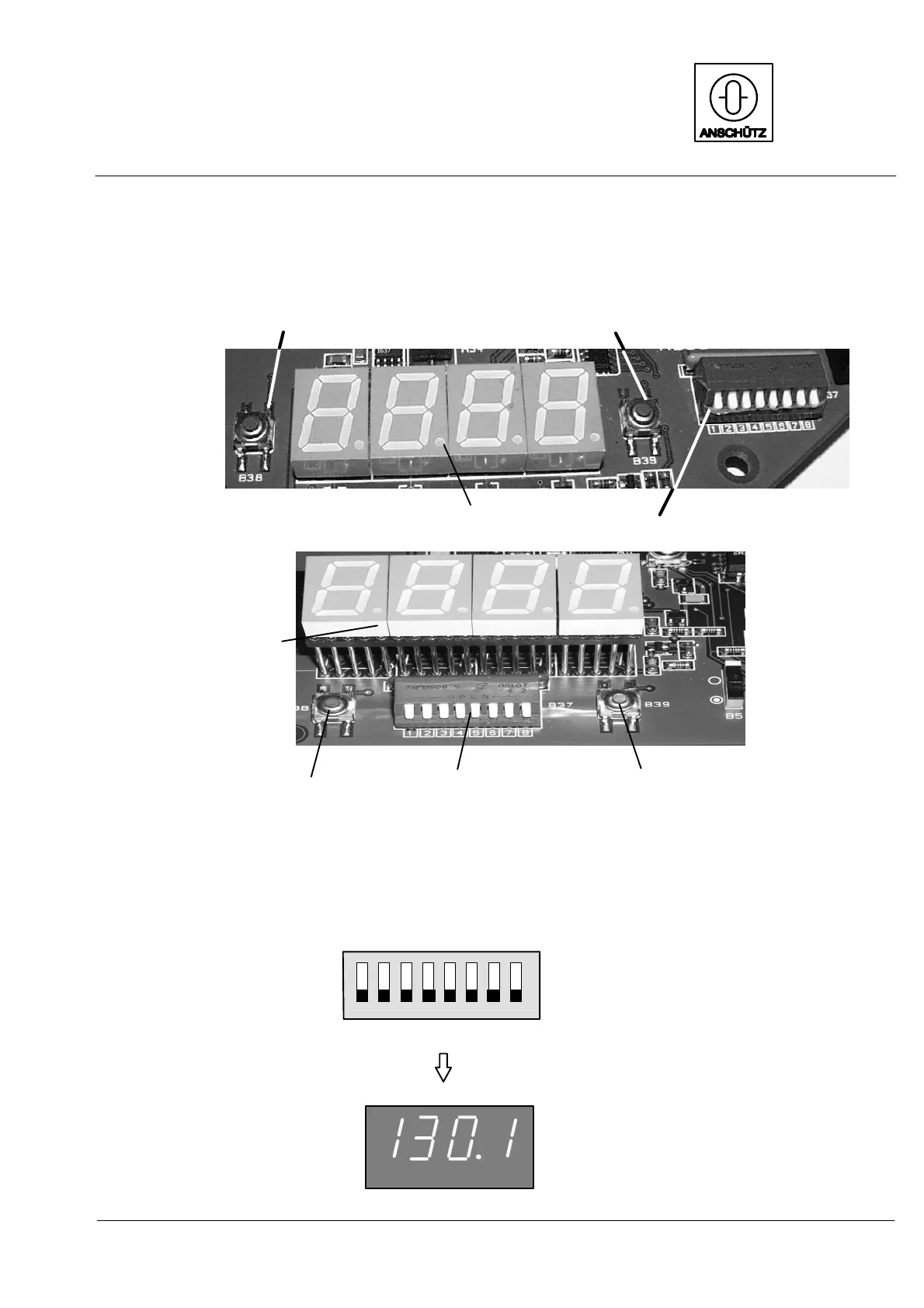

Figure 36: DIP switch B37 and buttons B38/B39
Initial status:
12345678
OPEN
Display
DIP switch B37
OFF
ON
