Installation and Service manual
Compass STD 22
80
Edition: May 20, 20053646/110 --233.DOC010302
3.3.1.1 Assembling the compass enclosure
Note: It is not necessary to install the compass enclosure with reference to the ship
(e.g. in the ship’s forward direction). It can be installed in whatever position is most
convenient for servicing and operation (compass enclosure removable and it must
be possible to open the compass door -- observe the size of tools).
The installation described below is to be regarded as the manufacturer‘s
recommendation.
8 supports
6 screw holes
Compass enclosure
Arrangement of the digital display
Intermediate plate between ship’s
body and compass base plate
appr. 400mm
∅ with smooth s urface.
(not supplied)
Ship’s body

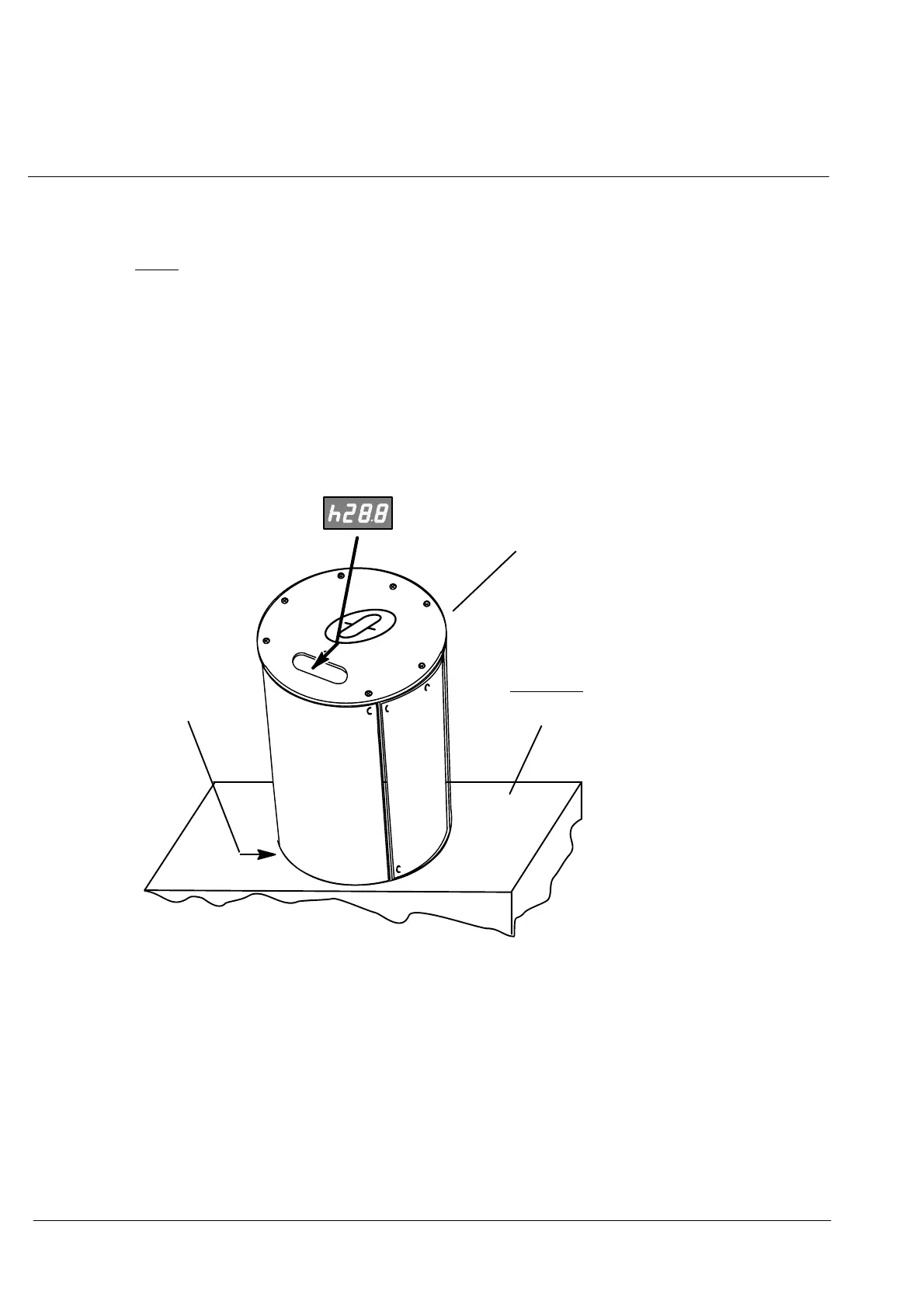

Figure 42: Installation of the compass enclosure
