Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
163
Edition: July 1, 2005 3646/110 --233.DOC010302

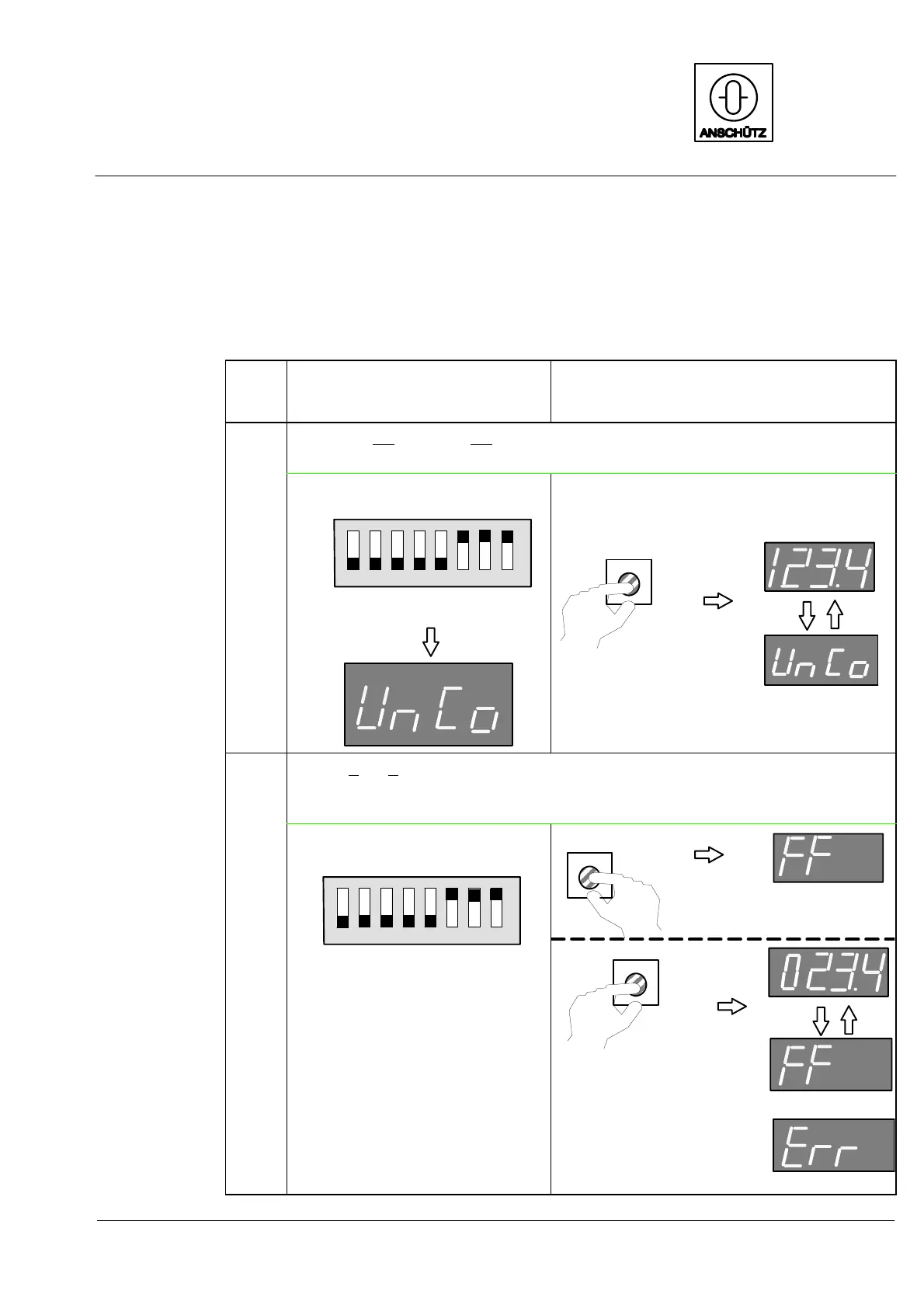

5.1.5 Functional description of DIP switch settings (SEC)
All data stated below should be selected and read out for servicing purposes
only.
In standard operation the following data has no significance.
Seq.
no.
Indications Comments, Notes
1 UnCo = (Uncorrected Compass) = course without speed error correction
value.
Switch B37 (DIP switch)
12345678
OPEN
B38
Displays the
uncorrected
gyro course.
Identical with Seq.no. 6
2 FF = FahrtFehler (Speed error) = the value by which the compass course is
to be corrected (result from SEC), displayed in degrees, display value
approx. max. 10° (see also number 3).
12345678
OPEN
Switch B37 (DIP switch)
B38
1x
B39
The automatic Speed Error
Correction function is defective.
Speed or/and position faulty.
