Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
Compass STD 22 Compact
164
Edition: July 1, 2005
3646/110 --233.DOC010302
Seq.
no.
Comments, NotesIndications

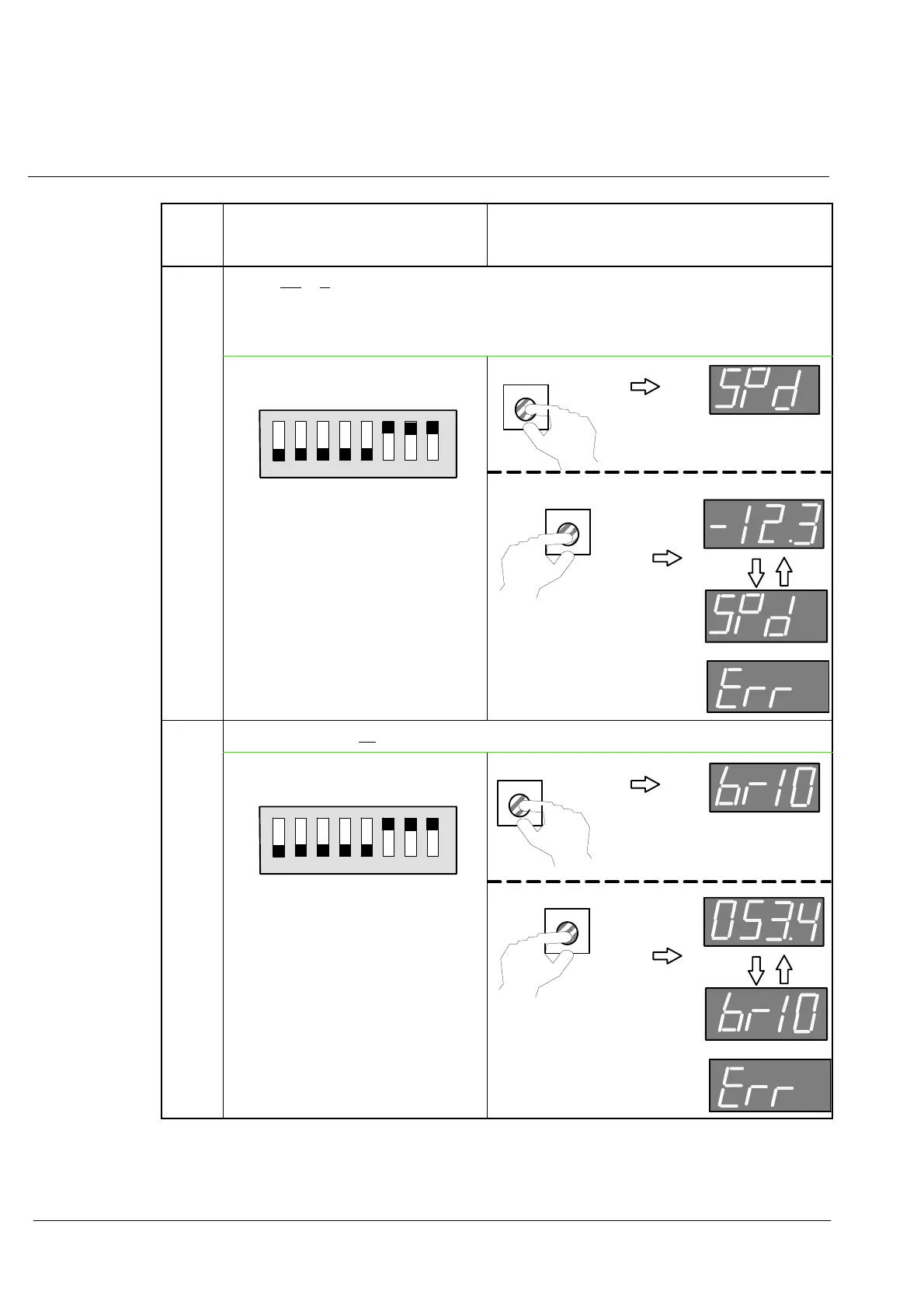

3 SPd = Speed = Ship’s speed. This speed is provided from the connected and
selected Log.
(see also number 5).
Displayed in knots, astern sped (-- knots) is also possible.
12345678
OPEN
Switch B37 (DIP switch)
B38
B39
Connected Log not
providing any speed data.
2x
4 br 10 = Latitude (Breite) at a resolution of
1
/
10
°
.
12345678
OPEN
Switch B37 (DIP switch)
B38
B39
No latitude data available
(GPS--receiver defective).
3x
