Installation and Service manual
Compass STD 22 Compact
22
Edition: May 20, 2005
3646/110 --233.DOC010302
2.4.1.1 Assembling the compass enclosure
Note: It is not necessary to install the compass enclosure with reference to the ship
(e.g. in the ship’s forward direction). It can be installed in whatever position is most
convenient for servicing and operation.
The installation described below is to be regarded as the maker’s recommendation.
8 supports
6 fastening holes
Compass enclosure
Arrangement of the digital display
Intermediate plate between ship’s
body and compass base plate
appr. 400
mm∅ withasmooth
surface
(not supplied)
Ship’s body

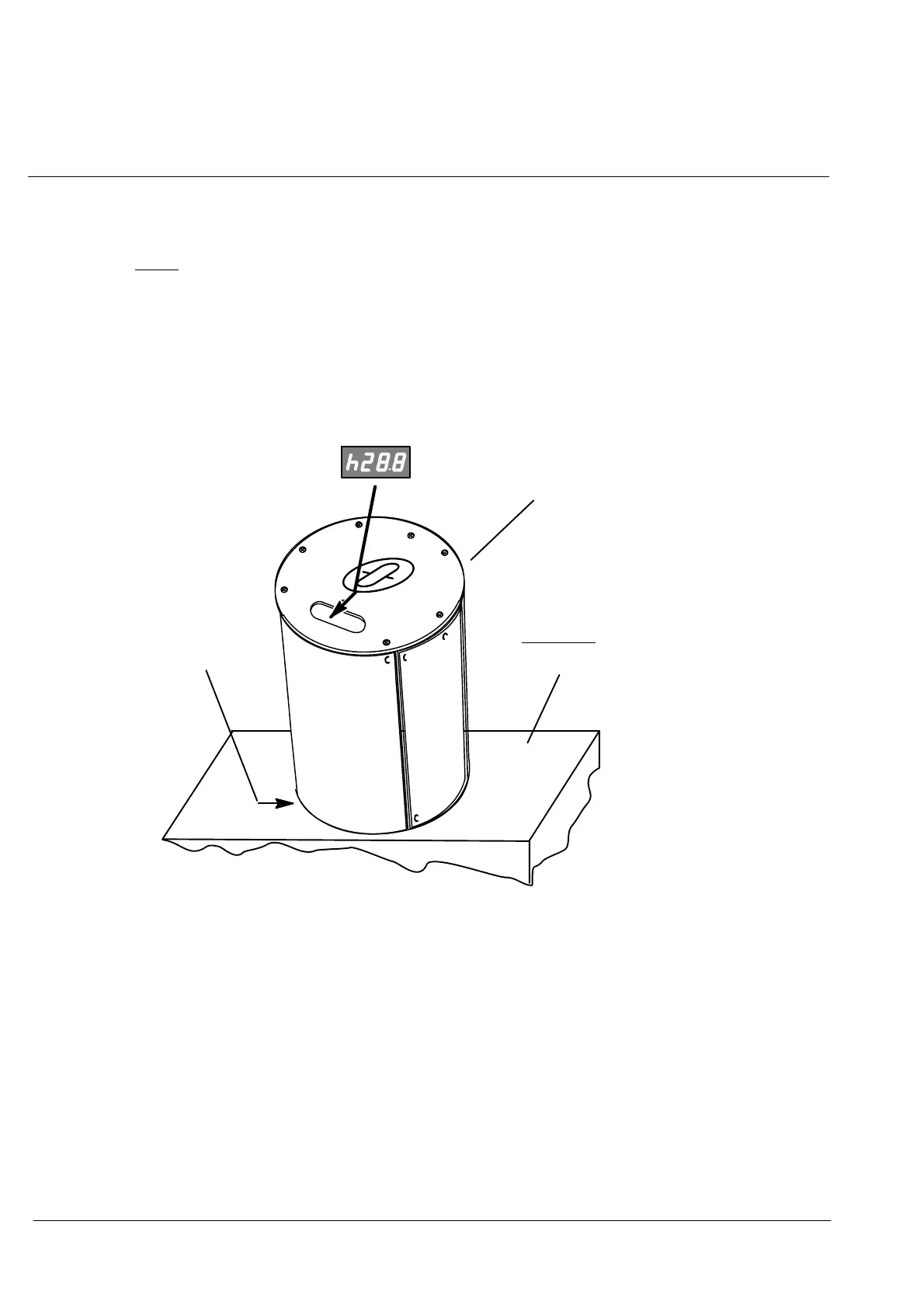

Figure 7: Installation of the compass enclosure
