Installation and Service manual
Compass STD 22 Compact
44
Edition: May 20, 2005
3646/110 --233.DOC010302
Caution:
Before connecting the c able, the AC/DC Converter must be
disconnected from the power supply and safeguarded against
reconnecting until it is set into operation.
Take care to ensure that a common earth is used for all components of the STD 22or
STD 22 Compact Gyro
Compass.
To connect the AC/DC Converter to the ship‘s mains, use a cable which meets following
minimum requirements:
2 x 1,5mm
2
(with screen, single--side connected to the housing)
Plastic
cover
Adhesive cable tie
mounts
Tie wrap

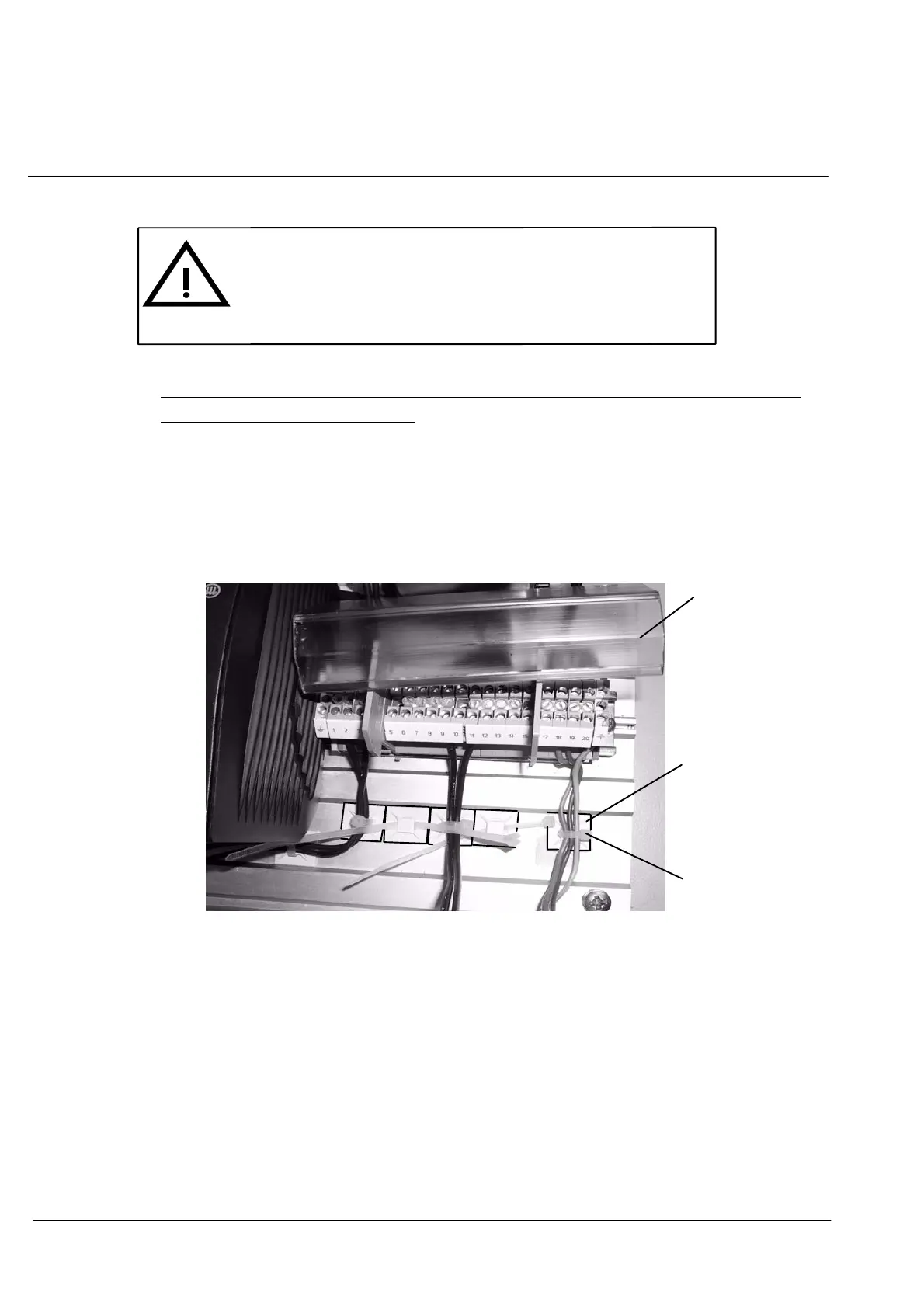

Figure 24: AC/DC Converter (Terminal board)
