Installation and Service manual
Compass STD 22
Compass STD 22 Compact
190
Edition: May 20, 2005
3646/110 --233.DOC010302

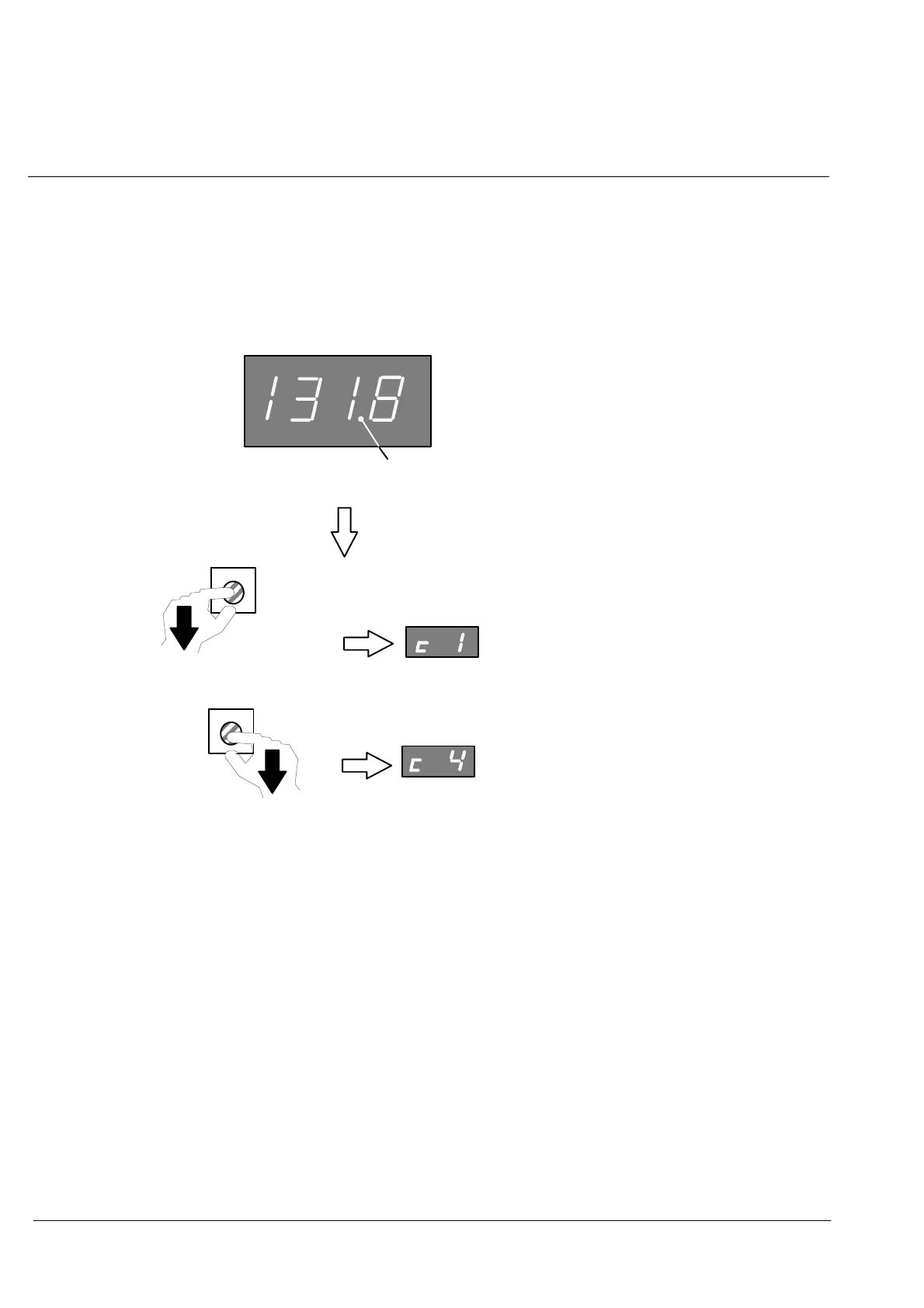

7.2 Warnings
Warning indicate a malfunction during operational use.
The heading continues to be displayed.
A warning is indicated by a flashing decimal point.
B39
B38
Warning 4
Examples of
warning:
flashing
Warning 1
Figure 70: DIP switch B37 and button B38/B39
