3.3.1.2 Installation of the gyrosphere
Special tool required:
Suction cup
Installation procedure:

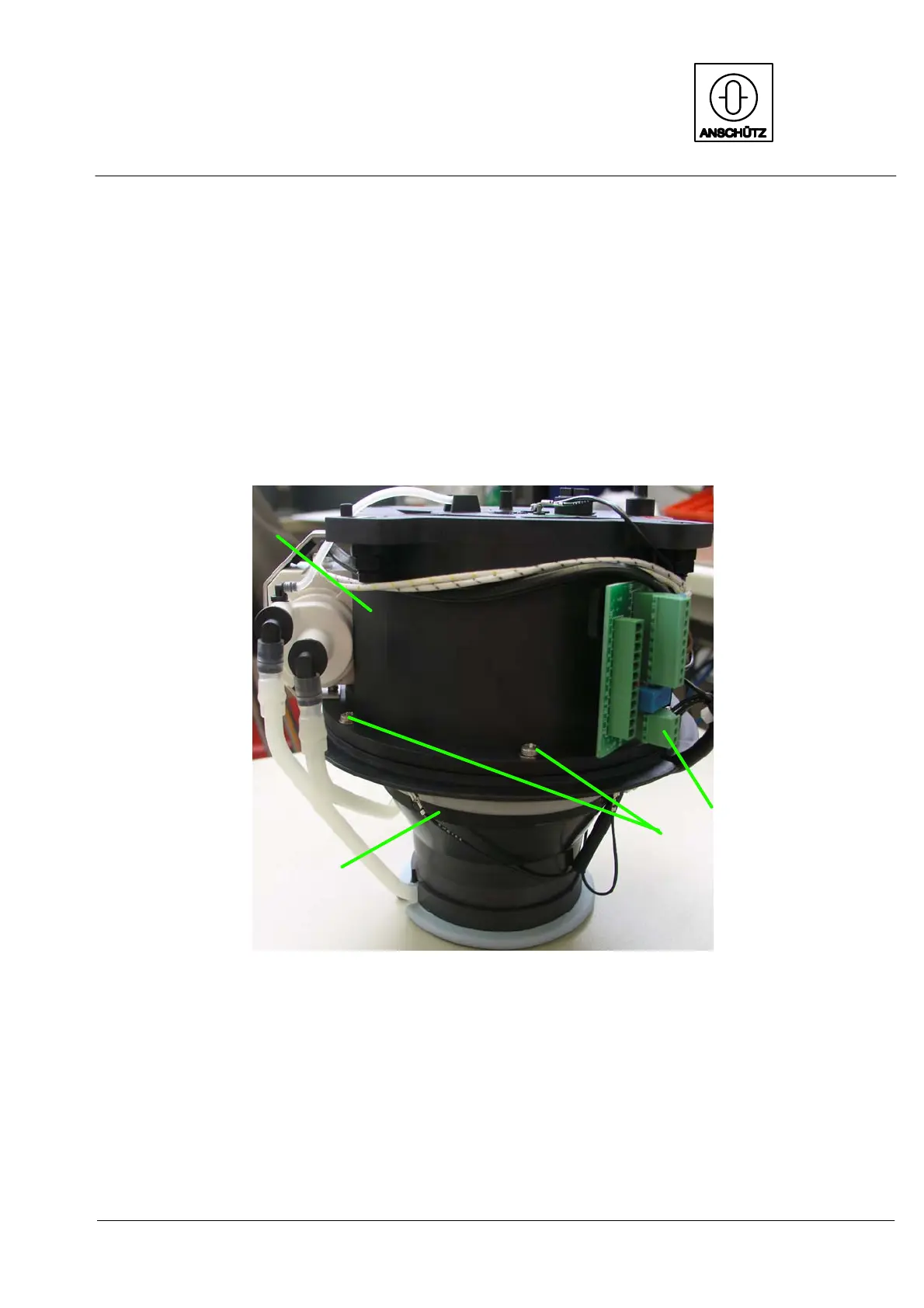

-- Undo the six screws (Figure 44/1) fastening the upper and lower halves of the outer
sphere (Figure 44/2 and 3).
-- Remove plug B3 (Figure 44/4) from the plug plate.
1
3
2
4
Figure 44: Outer sphere
-- Remove the upper half of the outer sphere (Figure 44/2). Take the gyrosphere
(Figure 45/2) out of the transportation box and carefully insert it using the suction cup
(Figure 45/3) in the lower outer sphere (see Figure 45).
