Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
84
Edition: May 20, 20053646/110 --233.DOC010302
2
3
1
Remove he upper half
of the outer sphere
Insert the gyrosphere into
the lower outer sphere

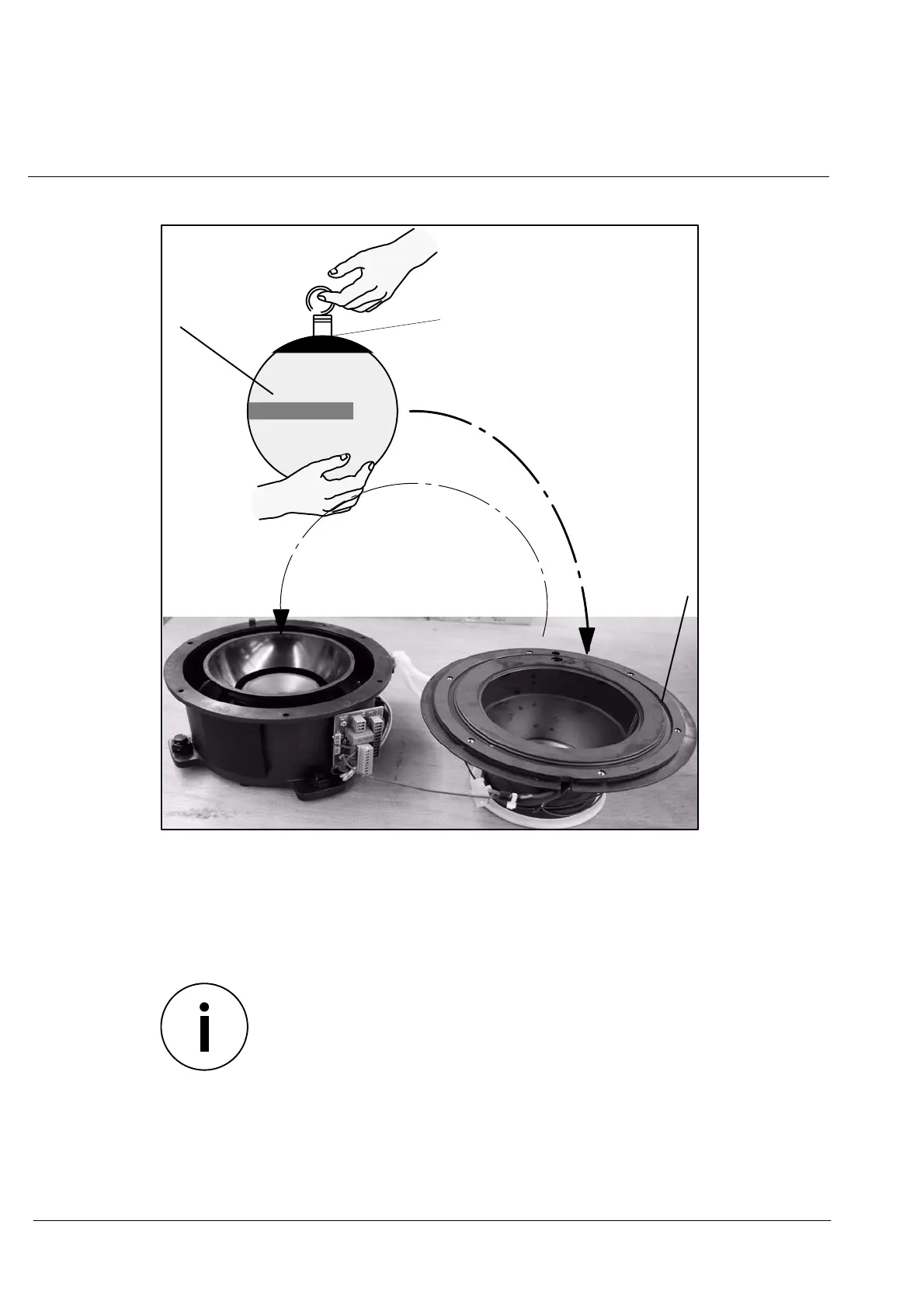

Figure 45: Principle of separating the upper and lower halves of the outer sphere
– inserting the gyrosphere
-- Replace the upper half of the outer sphere on the lower half.
Check that there i s a proper seal between the two halves of
the outer sphere (see Figure 45/1).
-- Retighten the six screws (see Figure 44/1).
-- Insert plug B3 (Figure 44/4) again.
