Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
Compass STD 22 Compact
140
Edition: Sept. 13, 2005
3646/110 --233.DOC010302
Serial
No.
Comments, InformationIndications
8

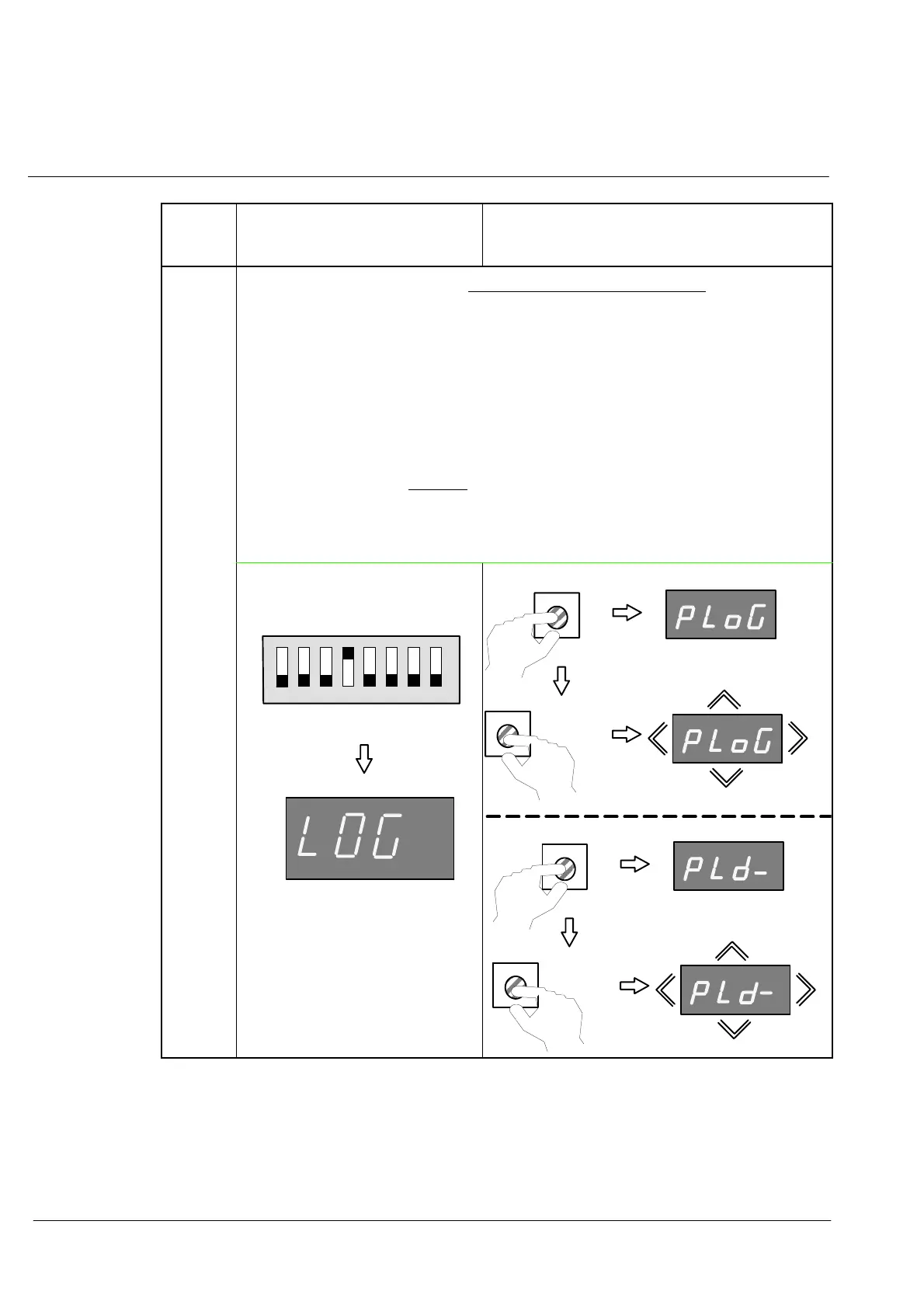

Set the speed source for SEC (STD22 Compact only)
This setting is used to select the source of the s peed information for
automatic Speed Error Correction.
PLoG = Pulse Log
PLd-- = Puls Log (polarity of the input interface inverted)
PLd = Puls Log (polarity of the input interface not inverted)
uhu. = NMEA Log (means water speed in general)
ubu.u = means NMEA Log specified with speed through the water
ubu.G = means NMEA Log specified with speed over ground
GLoG = GPS--receiver speed
The indications in the flashing
display are selected.
If the setting does not correspond to the connected device, the course
correction relay responds and gives an appropriate warning only to devices
which are connected to this alarm output.
Switch B 37 (DIP switch)
1 2345678
OPEN
B38
2X
B39
1X
B38
1X
B39
1X
