Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
41
Edition: May 20, 2005 3646/110 --233.DOC010302
2.6 Installation and commissioning of optional features
2.6.1 Installation and commissioning of the Additional Output Box 143--103
Step/SSC Module
Filter

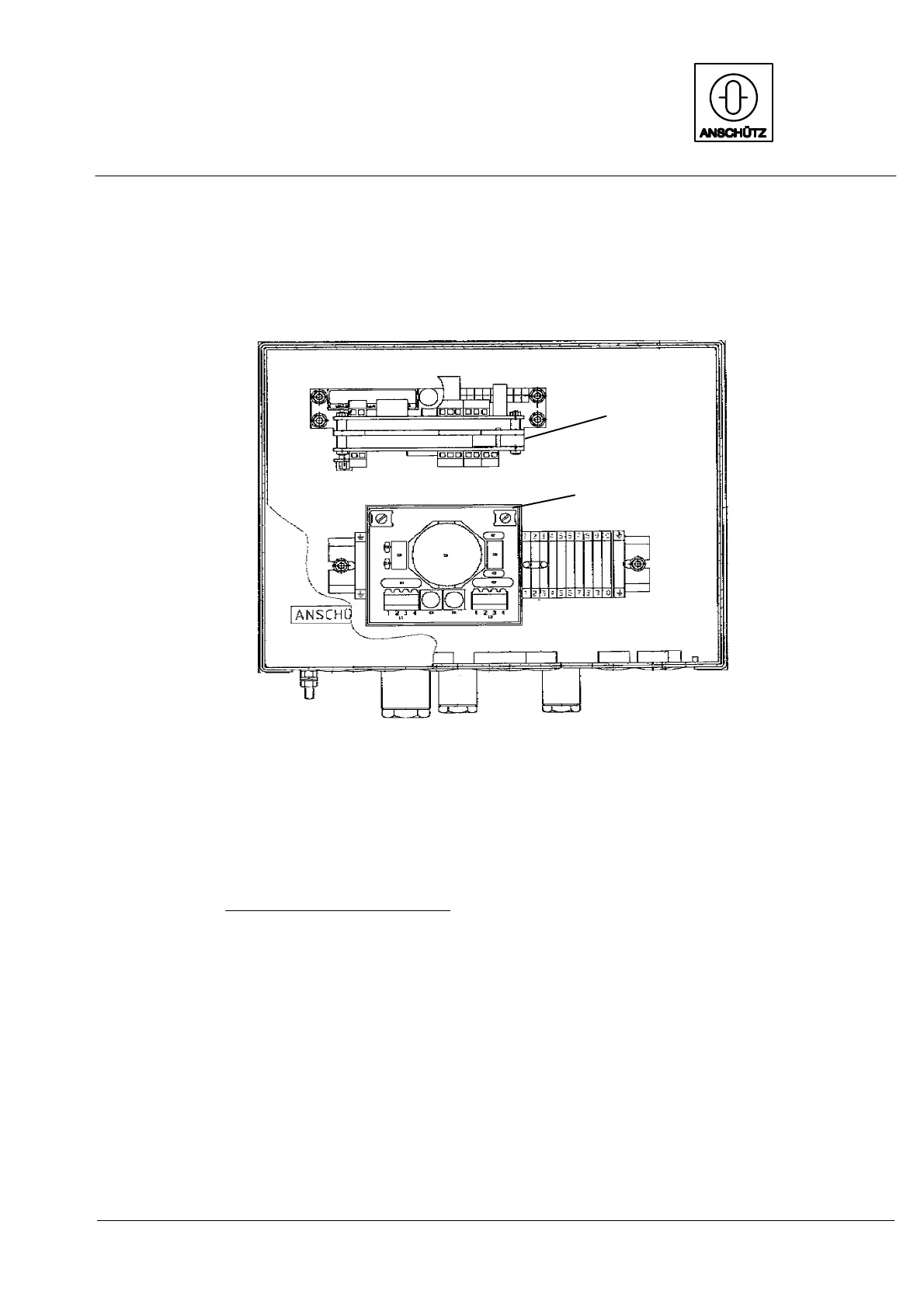

Figure 21: Additional Output Box 146--103 (device open)
Install the Additional Output Box as shown in dimensional drawing 146--103HP005.
Ensure that it is proper connected to the ship‘s earth.
Connecting the power supply:
24VDC at terminal L1, terminals 3 (+) und 4(--) o f the mains filter.
The power supply c an be taken directly from the ship‘s supply (24VDC) or from
terminals 6, 7, 8 or 9 (+) und 11, 12, 13 or 14 (--) of the AC/DC--Converters (if supplied)
(see also section 2.6.2).
