Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
25
Edition: May 20, 2005 3646/110 --233.DOC010302
2.4.1.2 Installation of the gyrosphere
Special tool required:
Suction cup
Installation procedure:
-- Undo the six screws (Figure 9/1) fastening the upper and lower halves of the outer
sphere (Figure 9/2 and 3).
-- Remove plug B3 (Figure 9/4) from the plug plate.
1
3
2
4

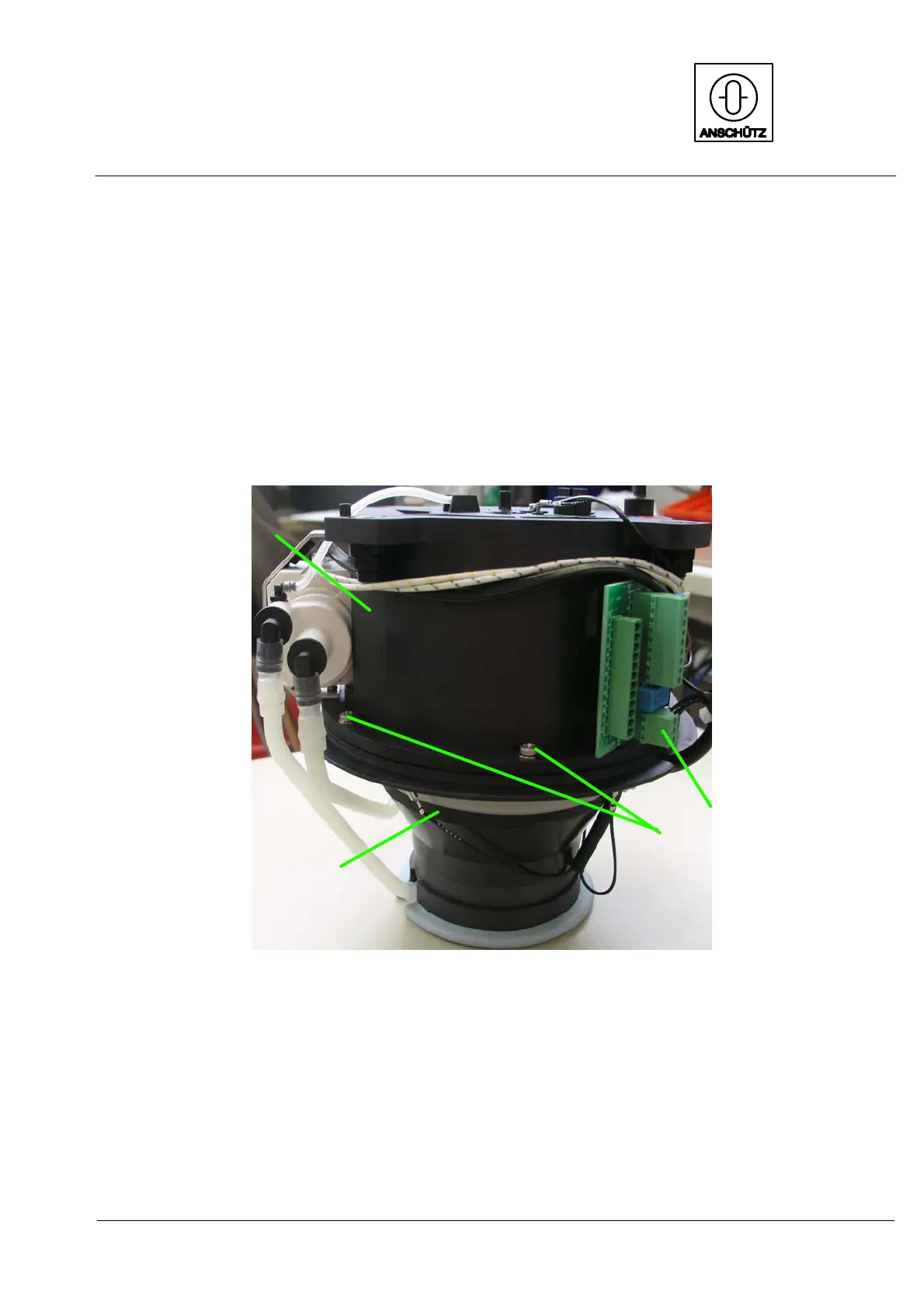

Figure 9: Outer sphere
-- Remove the upper half of the outer sphere (Figure 9/2).
Take the gyrosphere (Figure 10/2) out of the transportation box and carefully insert it
using the suction cup (Figure 10/3) in the lower outer sphere (see Figure 10).
