Installation and Service manual
Compass STD 22 Compact
26
Edition: May 20, 2005
3646/110 --233.DOC010302
2
3
1
Remove he upper half
of the outer sphere
Insert the gyrosphere into
the lower outer sphere

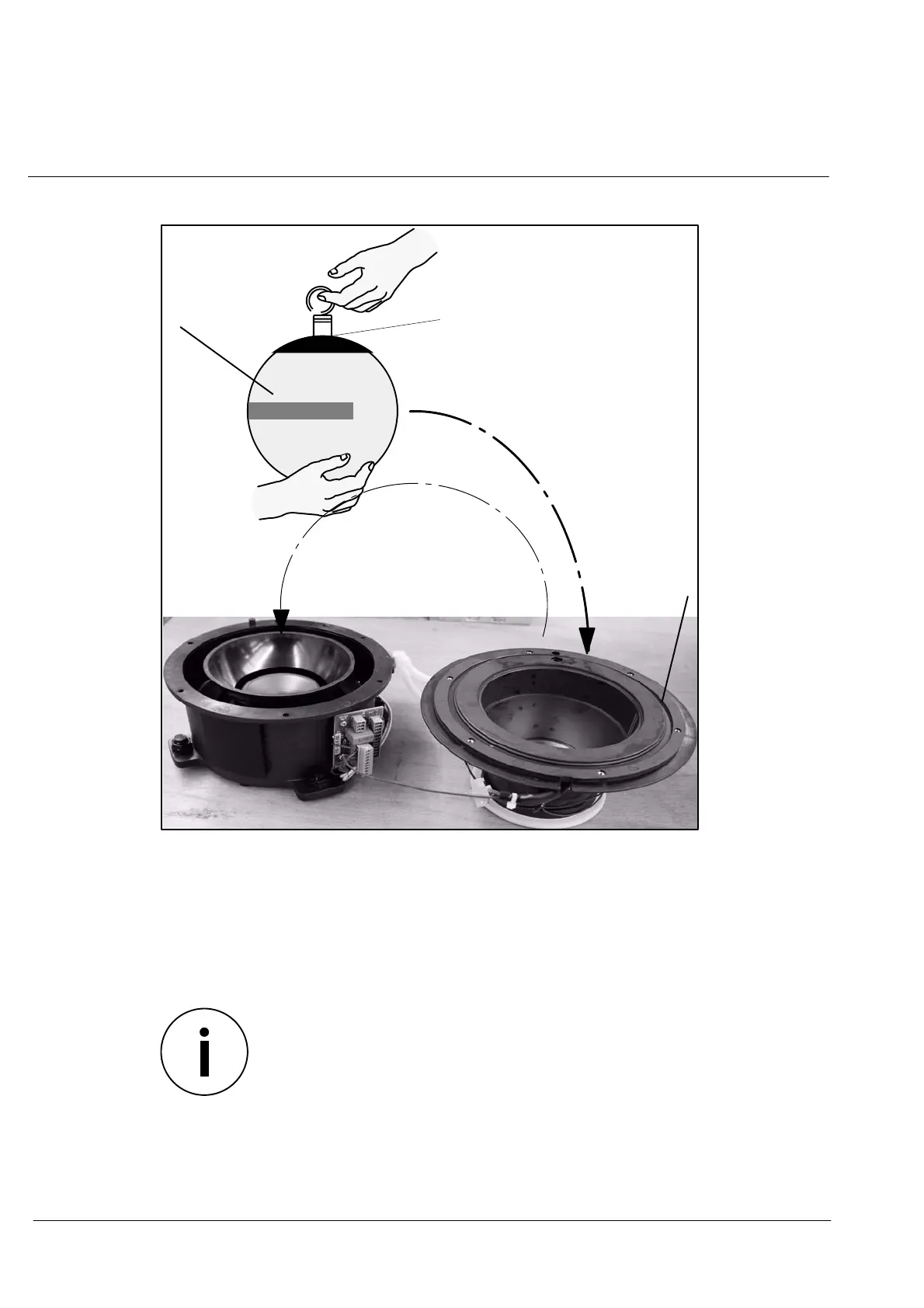

Figure 10: Principle of separating the upper and lower halves of the outer sphere
inserting the gyrosphere
-- Replace the upper half of the outer sphere on the lower half.
Check that there i s a proper seal between the two halves of
the outer sphere (see Figure 10/1)!
-- Retighten the six screws (see Figure 9/1).
-- Insert plug B3 (Figure 9/4) again.
