Installation and Service manual
Compass STD 22 Compact
38
Edition: May 20, 2005
3646/110 --233.DOC010302
Plug B5
Input signals

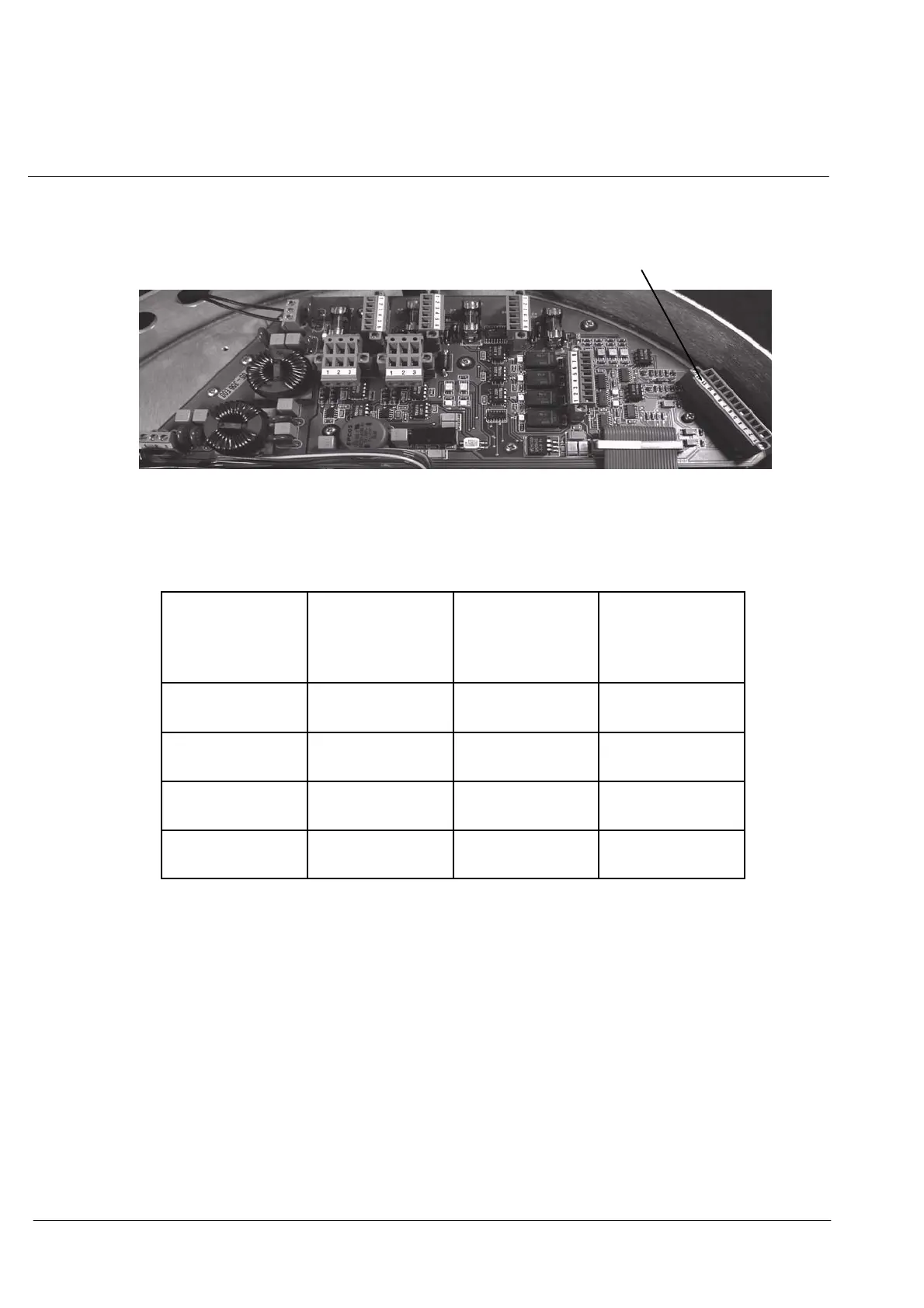

Figure 18: Connection of signal inputs for QS and SEC
SET QS INPUT
see also
section 2.6.3.1
Plug B5 Terminal 2
Terminal 3
PULSLOG
INPUT
Plug B5 Terminal 4
Terminal 5
PULSLOG DIR.
INPUT
Plug B5 Terminal 6
Terminal 7
GPS--receiver
INPUT
Plug B5 Terminal 12
Terminal 11
Rx+
Rx--
NMEA LOG
INPUT
Plug B5 Terminal 10
Terminal 9
Rx+
Rx--
