Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22 Compact
39
Edition: May 20, 2005 3646/110 --233.DOC010302
2.5.1.4 Connecting the power supply cable
The STD 22 Compact Compass operates at 24VDC.
This voltage can be generated directly using an AC/DC converter (see s ection 2.6.2) or
fed directly from the 24VDC ship‘s mains to the compass.
Te r m i n a l L1
+24VDC power supply
+24 V0V

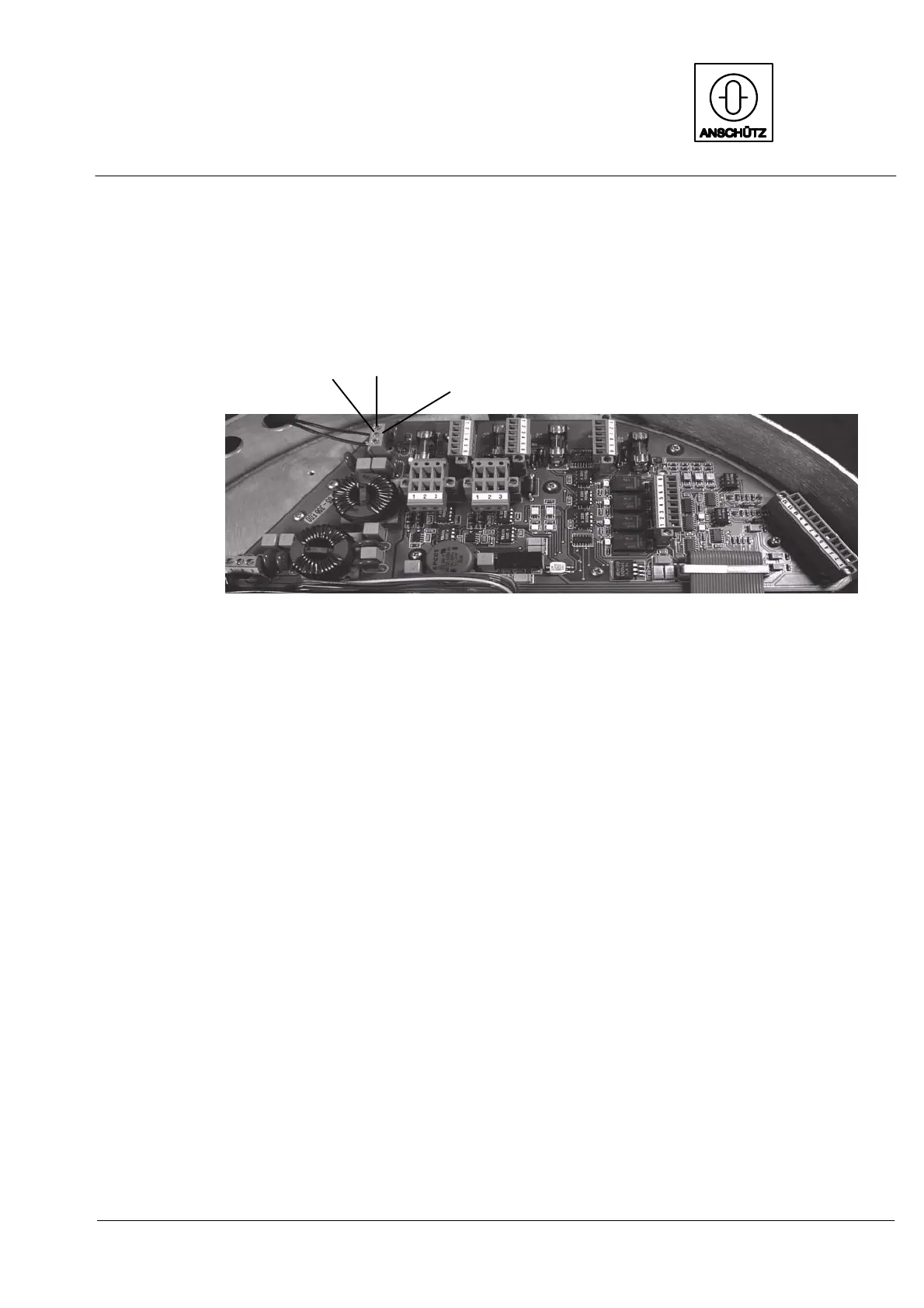

Figure 19: Connection of the +24VDC power supply
The 3--core cable that is used should have a conductor cross--section of ≥2.5mm
2
At terminal L1 (see Figure 19) connect a power supply of
with +24VDC at terminal 1
0V at terminal 2
