Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
87
Edition: May 20, 2005 3646/110 --233.DOC010302
3.3.1.4 Inserting the outer sphere in the compass enclosure
(see Figure 48)
-- Carefully insert the gyrosphere in the compass enclosure:
Pay attention to the two locking pins on the closure.
-- Using both hands, hold the outer sphere and guide it under the snap closures
(Figure 48/1) on the pendulum joint (Figure 48/2).
1
1
2

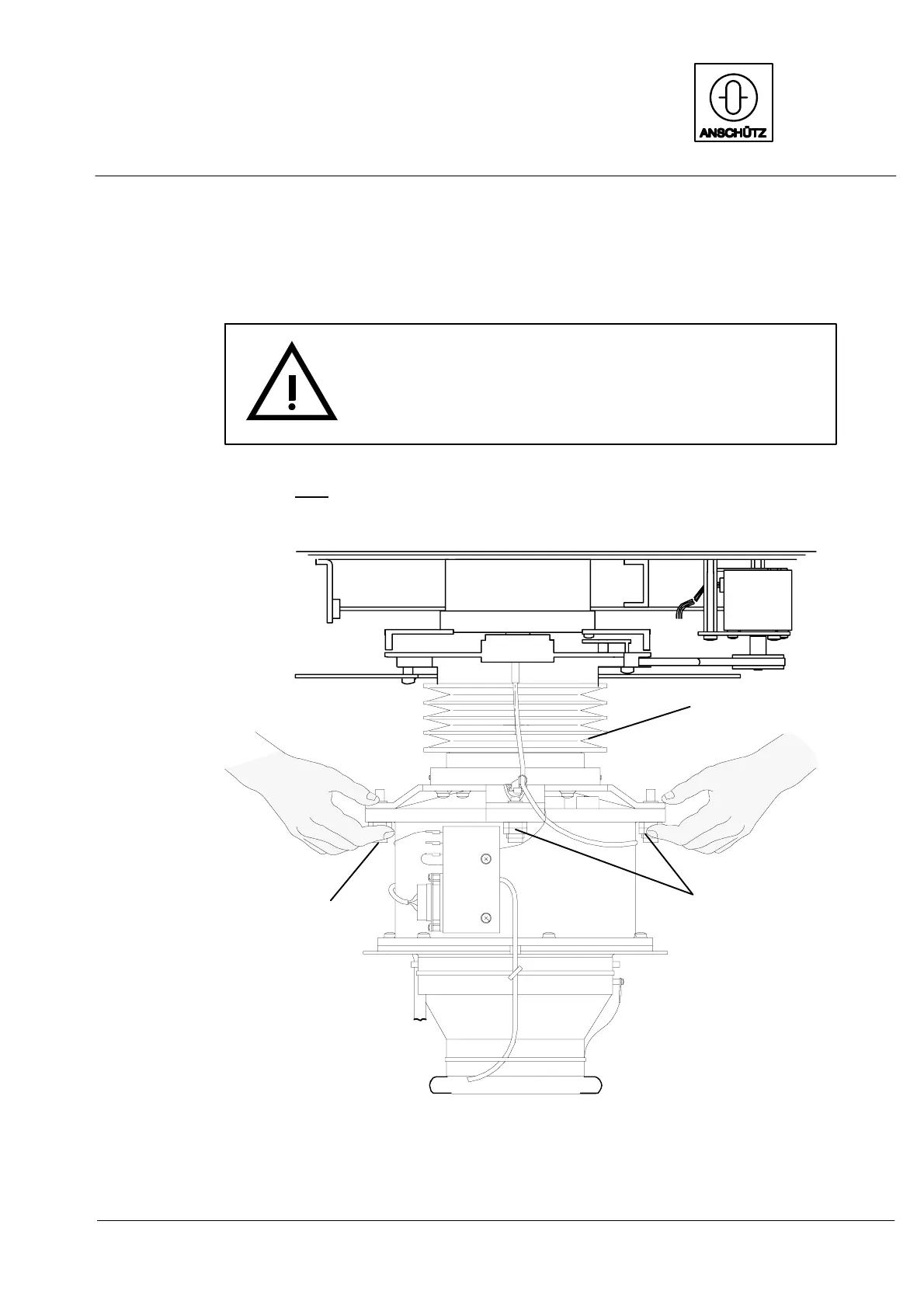

Figure 48: Principle of inserting the outer sphere in the compass enclosure
