Installation and Service manual
Compass STD 22
Compass STD 22 Compact
184
Edition: July 1, 2005
3646/110 --233.DOC010302
1
1
2

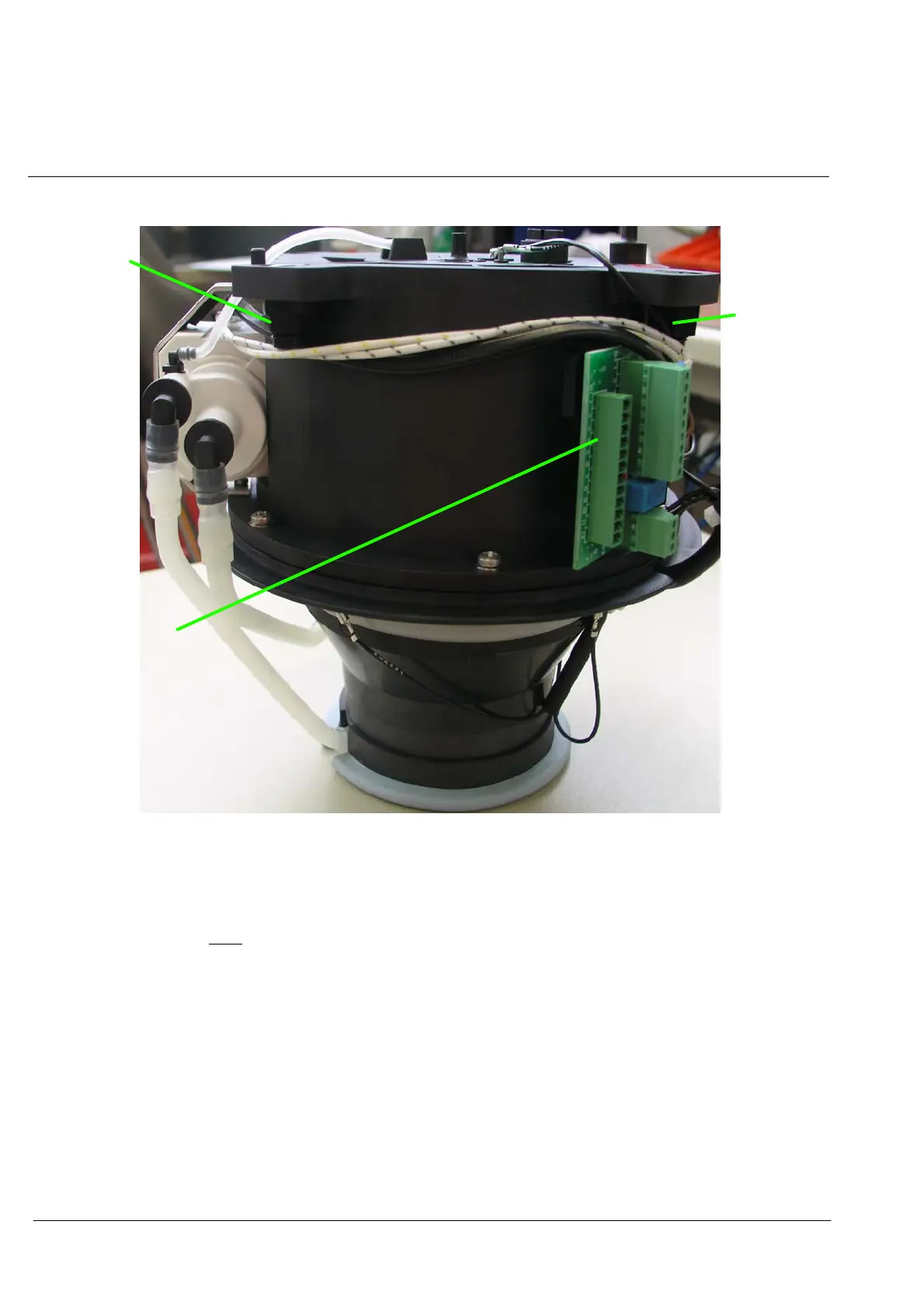

Figure 66: Dismantling the outer sphere
-- Place both
hands (see Figure 66/1 ) under 2 of the 4 snap closures and release them by
pressing with the thumbs.
-- Carefully turn the outer sphere through 90 ° and repeat the process with the other two
snap closures. The outer sphere is now free and can be removed.
-- Still holding the outer sphere with both hands, lower it slightly (this releases the locking
device), carefully remove it from the c ompass enclosure and set it down.
