Compass

STD 22

Installation and Service manual

Compass STD 22 Compact

Edition: May 20, 2005 3646/110 --233.DOC010302

2.5.1.1 Connecting the course receiver in the STD 22 Compact Gyro Compass

(see also Cable and Connection Diagram 110--233.HP010)

Three outputs are provided on the Connection PCB of the gyro compass for course

data:

Output 1 (also Channel 1) for NMEA or Course bus (RS 422)

Output 2 (also Channel 2) for NMEA or Course bus (RS 422)

Output 3 for Course bus only (RS 422)

The setting of output data for Output 1 and Output 2 is described in section 2.6.4.6

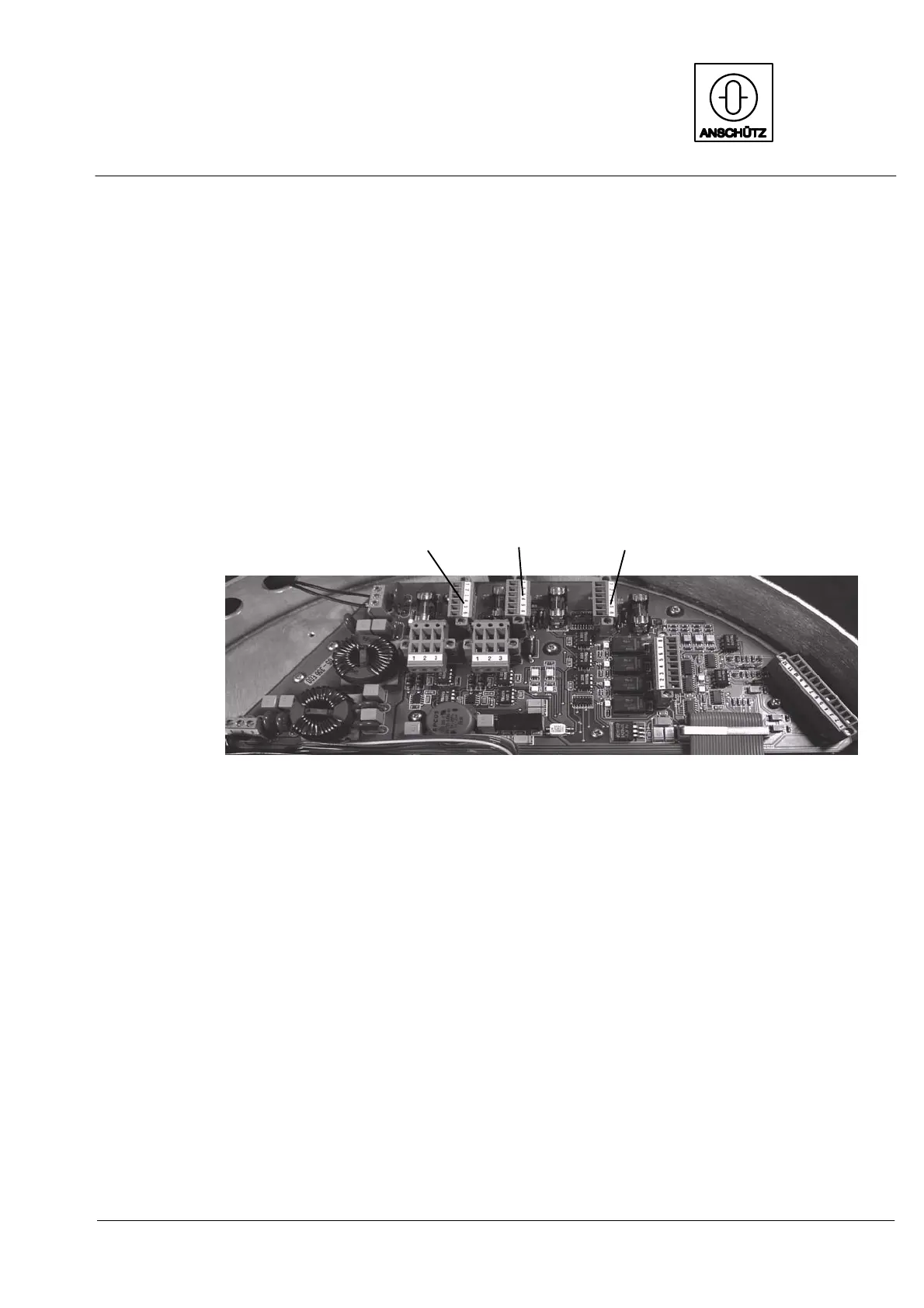

Plug B2

Output 1

(Channel 1)

Plug B3

Output 2

(Channel 2)

Plug B4

Output 3

Figure 16: Course receiver connections
