Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
103
Edition: May 20, 2005 3646/110 --233.DOC010302

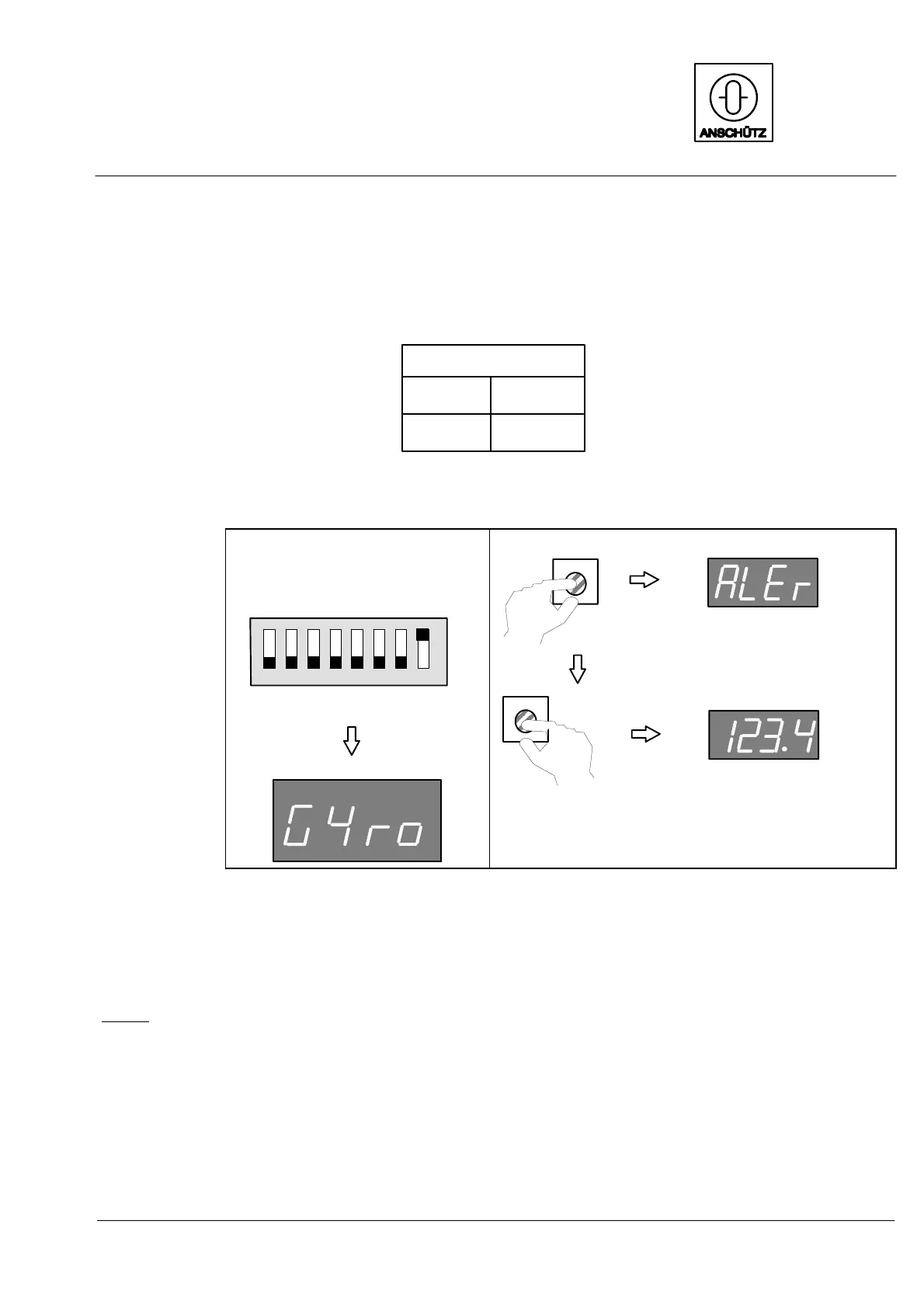

3.4.3.4 Reading the alignment error
The alignment error must be entered in the table provided for that purpose on the inside
of the cover.
Alignment Error
123.4
Figure 63: Table at the cover (inner side)
Switch B 37 (DIP switch)
12345678
OPEN
OFF
ON
B38
2X
B39
1X
DIP switch “8” in “OFF” position.
NOTE
: It is essential to enter this value, because the alignment error will be needed if the sensor
electronics are replaced, in order to determine the reference course for the new PCB.
DIP switch “8” in “ON” position.
The STD 22 Compass is ready for use.
Replace the cover of the compass and screw it tight.
