Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22 Compact
60
Edition: Sept. 13, 2005
3646/110 --233.DOC010302

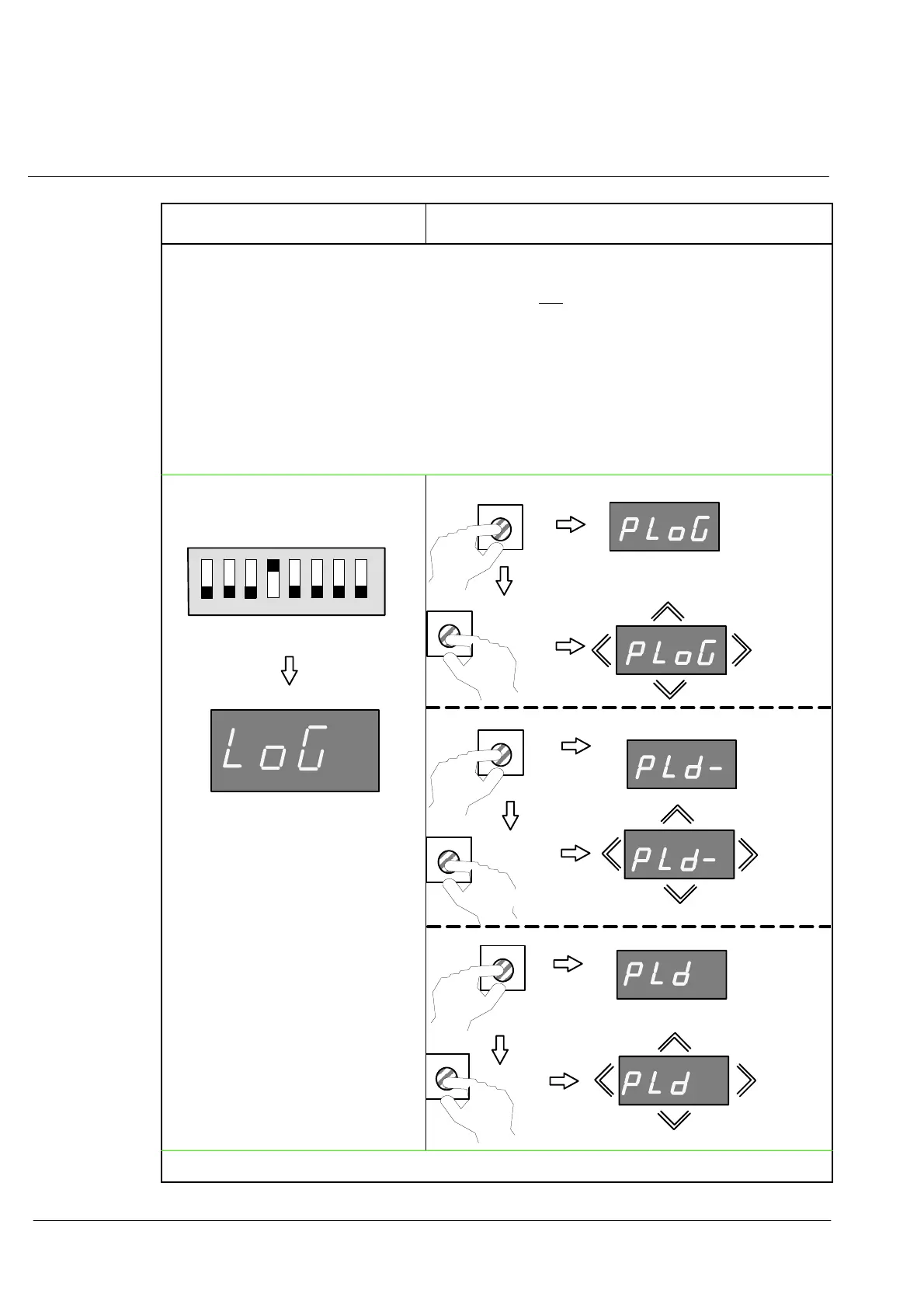

Indications Comments, Information
PLoG = Pulse--Log
PLd-- = Puls--Log (polarity of the input interface inverted)
PLd = Puls--Log (polarity of the input interface not
inverted)
uhu. = NMEA--Log (means water s peed in general)
ubu.u. = means NMEA Log specified with speed through the water
ubu.G = means NMEA Log specified with speed over ground
GLoG = GPS--receiver--Speed
The indications in the flashing display are selected.
If the setting does not correspond to the connected device, the course correction relay
responds and gives an appropriate warning only to devices which are connected to
this alarm output.
Switch B37 (DIP switch)
12345678
OPEN
OFF
ON
B38
1X
B39
1X
B38
2X
B39
1X
3X
B39
1X
B38
continued on next page
