Installation and Service manual
Compass STD 22 Compact
48
Edition: May 20, 2005
3646/110 --233.DOC010302
Plug B5
Input signals
Plug B6
Status---and
Control signals

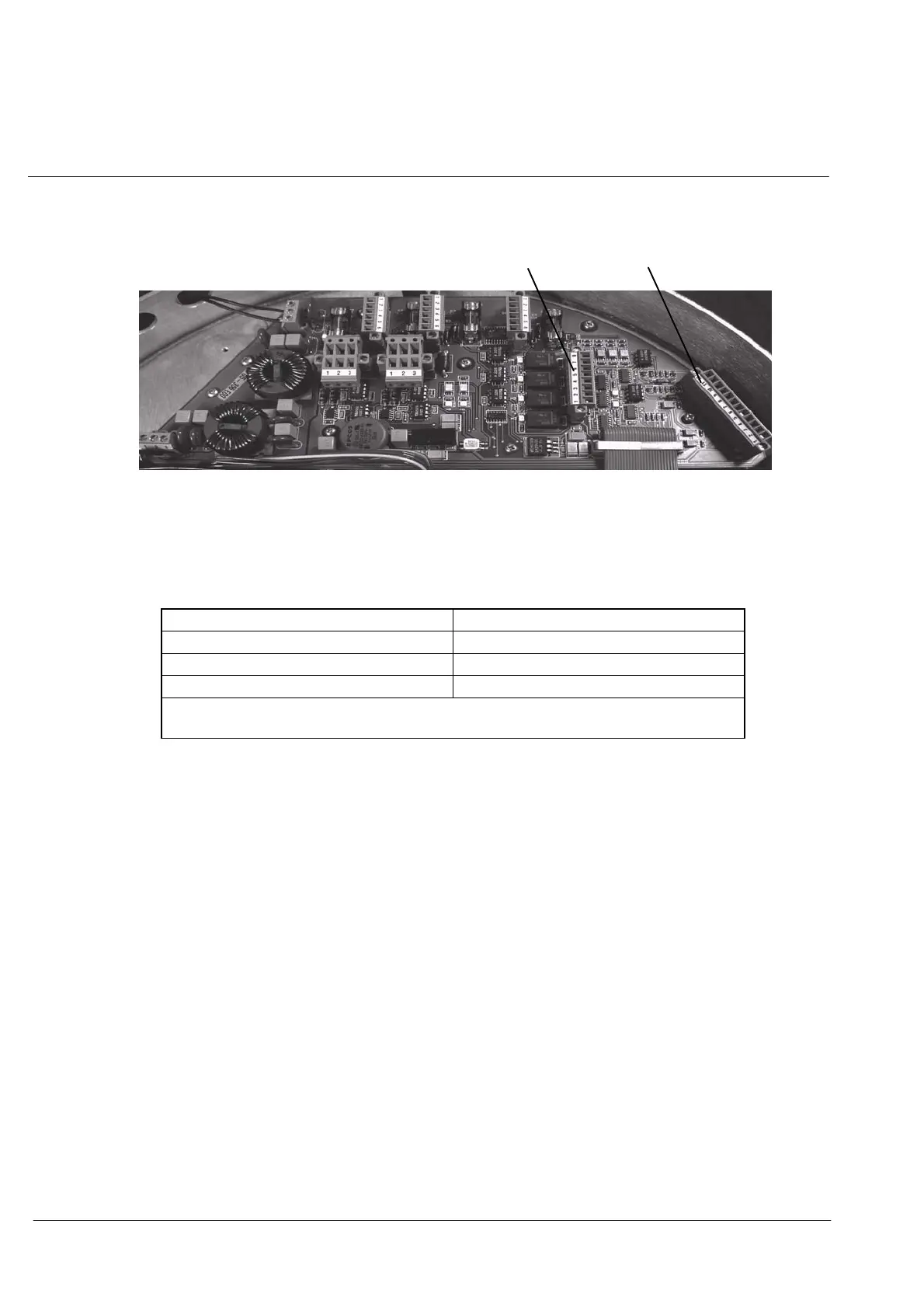

Figure 27
: Connecting the Operator Unit Quick Settling in the STD22 Compact Gyro
Compass
Operator Unit Quick--Settling
STD 22 Compact Gyro Compass
Terminal L1, connection 1 Plug B5, connection 3
Terminal L1, connection 2 Plug B5, connection 2
Terminal L1, connection 3 Plug B6, connection 2
STD 22 Compact Gyro Compass:
jumper from plug B6, Pin 1 to plug B5, Pin 1 (24VDC)
