Installation and Service manual

Compass STD 22

108

Edition: July 1, 20053646/110 --233.DOC010302

OPEN

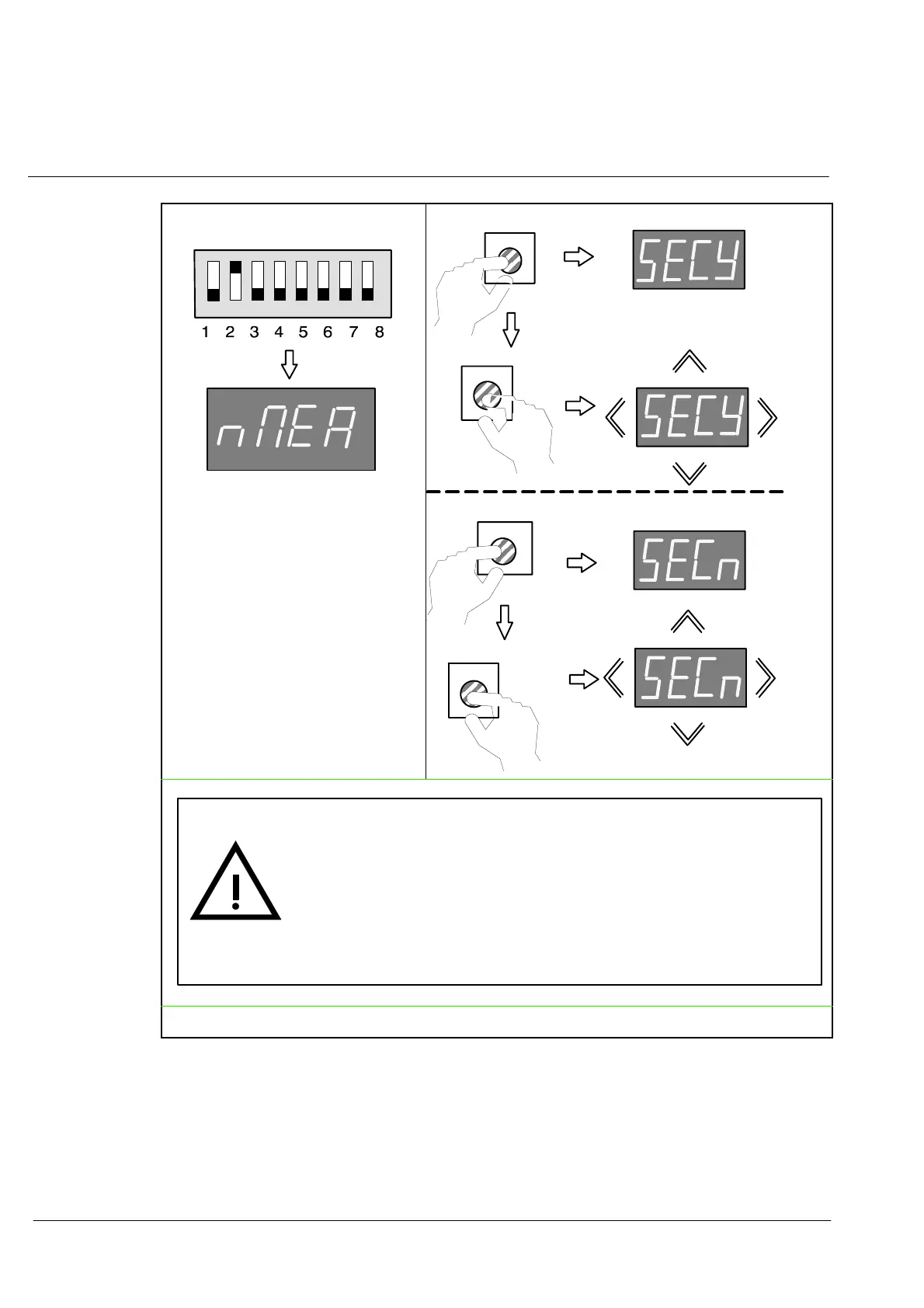

Switch B37 (DIP switch)

B38

B39

In some system configurations it is necessary to take off heading

information from the compass direct -- additional to the heading

information on the CAN bus. This heading information is

uncorrected (without SEC)!

Corrected heading information (with SEC) can be taken off in these

system configurations from the distribution unit only.

On adjustment SECY:

continued on next page
