Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
143
Edition: Sept. 13, 2005 3646/110 --233.DOC010302
Serial
No.
Comments, InformationIndications

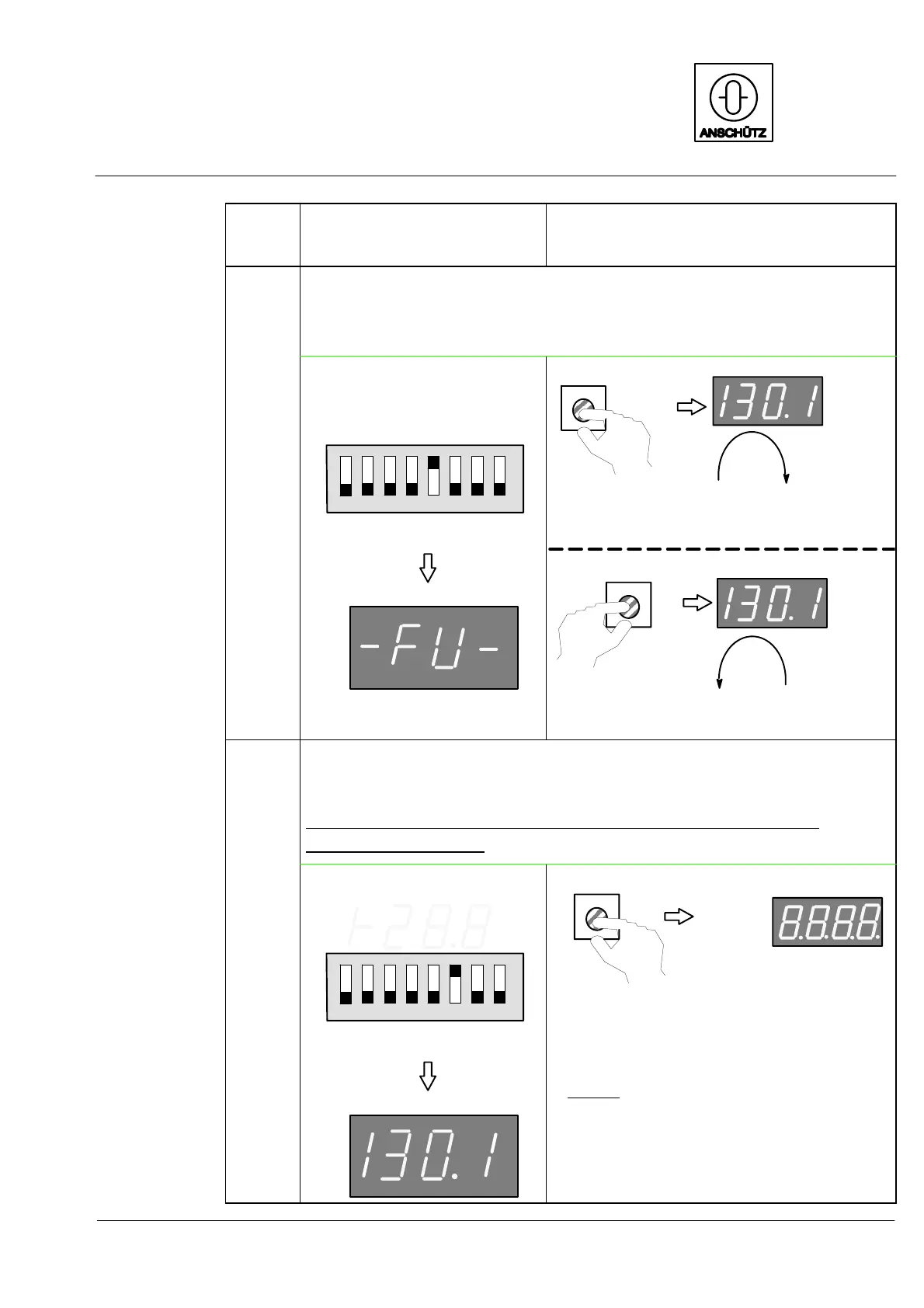

9 Check connected course receivers (check of follow--up function) and check
of RoT.
The check of RoT is only possible at RoT--Indicators which are connected to
the Distribution Unit.
Switch B 37 (DIP switch)
1 2 345 67 8
OPEN
B38
B39
1X
130.1
129.9
129.8
129.7
129.6
Outer sphere turns cw
130.1
130.2
130.3
130.4
130.5
Outer sphere turns ccw
1X
10 Check the fan, the display and the follow-up.
DO NOT PERFORM DURING HEATING STAGE!
The current course is displayed on the connected
course
receivers.
Switch B 37 (DIP switch)
1 2345678
OPEN
B39
1X
NOTE: If this function is activated during
the heating stage inadvertently,
the compass must switched
OFF and --ON again.
