Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Installation and Service manual
Compass STD 22
Compass STD 22 Compact
160
Edition: Sept. 13, 2005
3646/110 --233.DOC010302
Serial
No.
Comments, InformationIndications

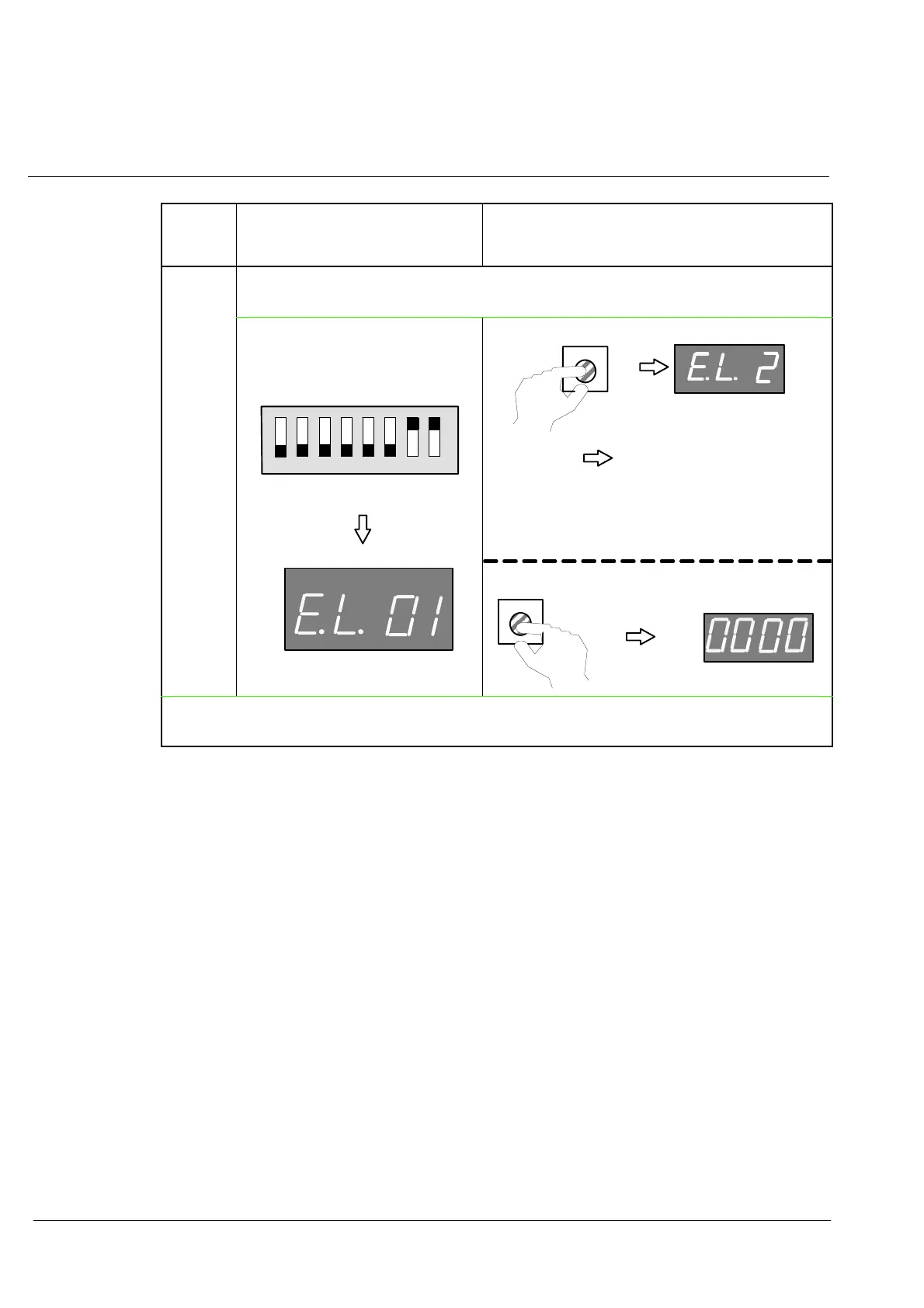

13 Error logbook.
Indication of errors and warnings, stating the frequency of occurrence.
Switch B 37 (DIP switch)
1 234 56 78
OPEN
B38
1X
B39
1X
B38 2x↓ E.L. 3
B38 3x↓ E.L. 4
B38 4x↓ E.L. 5
B38 5x↓ E.L. 6
B38 6x↓ E.L. 7
.............................24
Number of errors/warnings occurring
To delete error logbook: press button B39 for approximately 10 seconds.
the actual indicated line is deleted.
