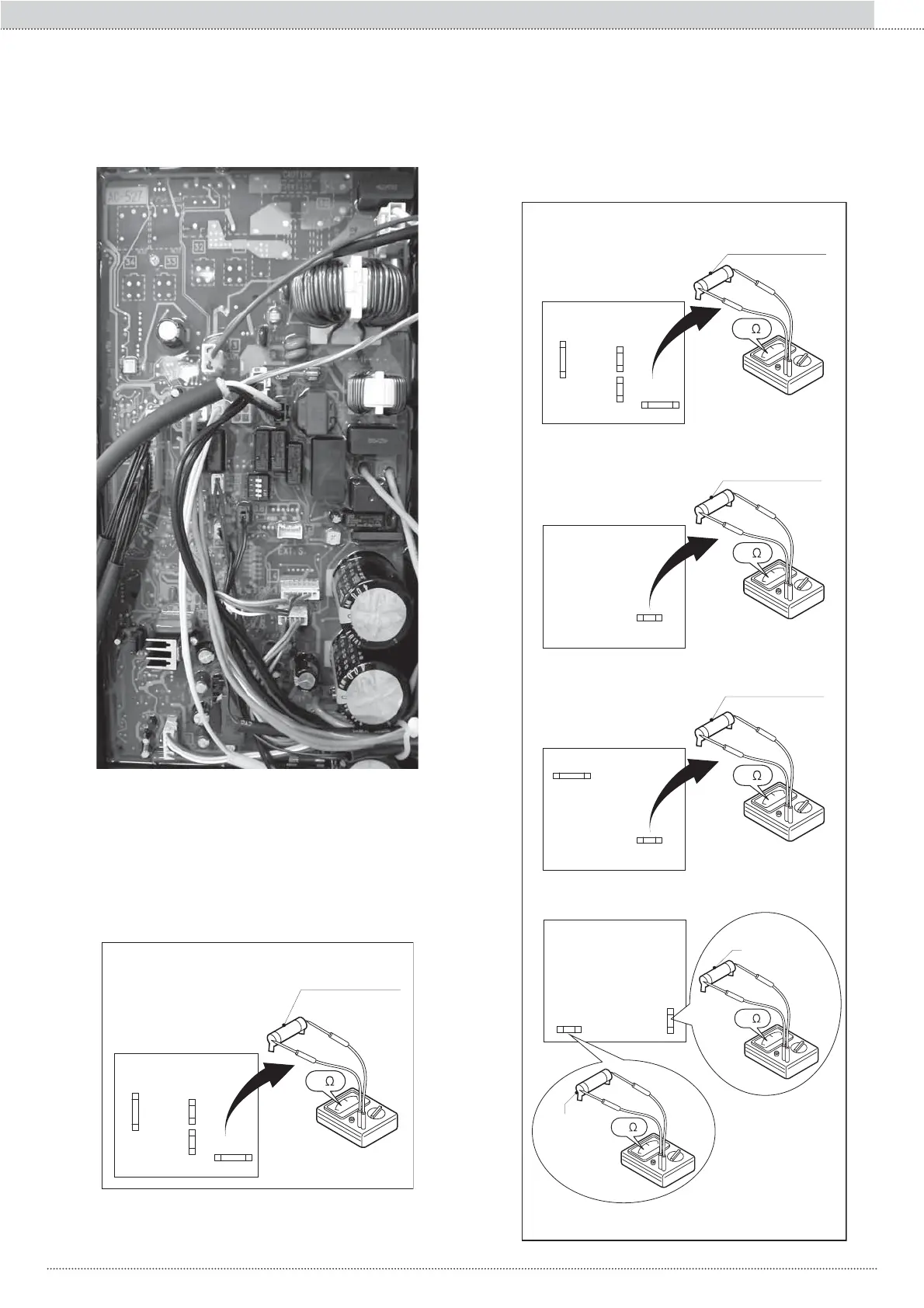

Check the following phases on the PCB MAIN:
Fuses for continuity of current
in the PCB MAIN boards
PCB MAIN
Fuse CF1
Fuse CF6 Fuse CF3
Fuse CF4
0
Fig. 1
Fuse CF1-CF6 (250V T 15A)
Fuse CF3-CF4 (250V T 3A)
Model XXXX
MODEL 116
Fuses for continuity of current
in the PCB MAIN boards
PCB MAIN
Fuse CF1
Fuse CF6 Fuse CF3
Fuse CF4
0
Fig. 1
Fuse CF1-CF6 (250V T25A)
Fuse CF3-CF4 (250V T3A)
MODEL 105
PCB MAIN
0
Fuse CF2
(250V T3,15A)
MODEL 110
PCB MAIN
0
Fuse CF2-CF7
(250V T3,15A)
MODEL 105
Fuse CF7
Fuse CF2
PCB MAIN
0
0
Fuse CF2
(250V T5A)
Fuse CF1
(250V T30A)
107
