• 6. "USER INTERFACE"
Display in main screen
Permanent start-up Intermittent start-up
Clock or Water Outlet Temperature.
The writing Off, if control is disabled (closed Remote On/Off).
-
Been active warning (alarm) -
Heating operation (set) Heating operation forced by control (DHW)
Cooling operation (set) -
Heat pump OFF -
Defrosting -
State of attenuation of environmental comfort Active maximum frequency limit (Night mode)
N° 1
Pump 1 (HP)
Pump 2 (System)
N° 2
'HKXPLGL¿HUUXQQLQJ -
N° 3
Domestic hot water production (DHW) -
N° 4
Electric heater running as DHW integration Electric heater running as antilegionnaires integration
N° 5
Auxiliary generator running -
N° 6
Frost protection function 1 Frost protection function 2
N° 7
Water operation at set point 2 (for fan coil) -
Clock setting
-
The keypad display shows the machine allows the integrated manage-
ment of the heat pump and the heat system. Below are its main functions
and the access methods to the individual parameters enabling customisa-
tion of operation with different engineering types and/or use of the system.
The keypad is positioned in the heat pump, under the side cover for ac-
cess to the electrical connections of the same
Indoor air temperature (°C)
Temperature of outlet water (°C)
Outdoor air temperature (°C)

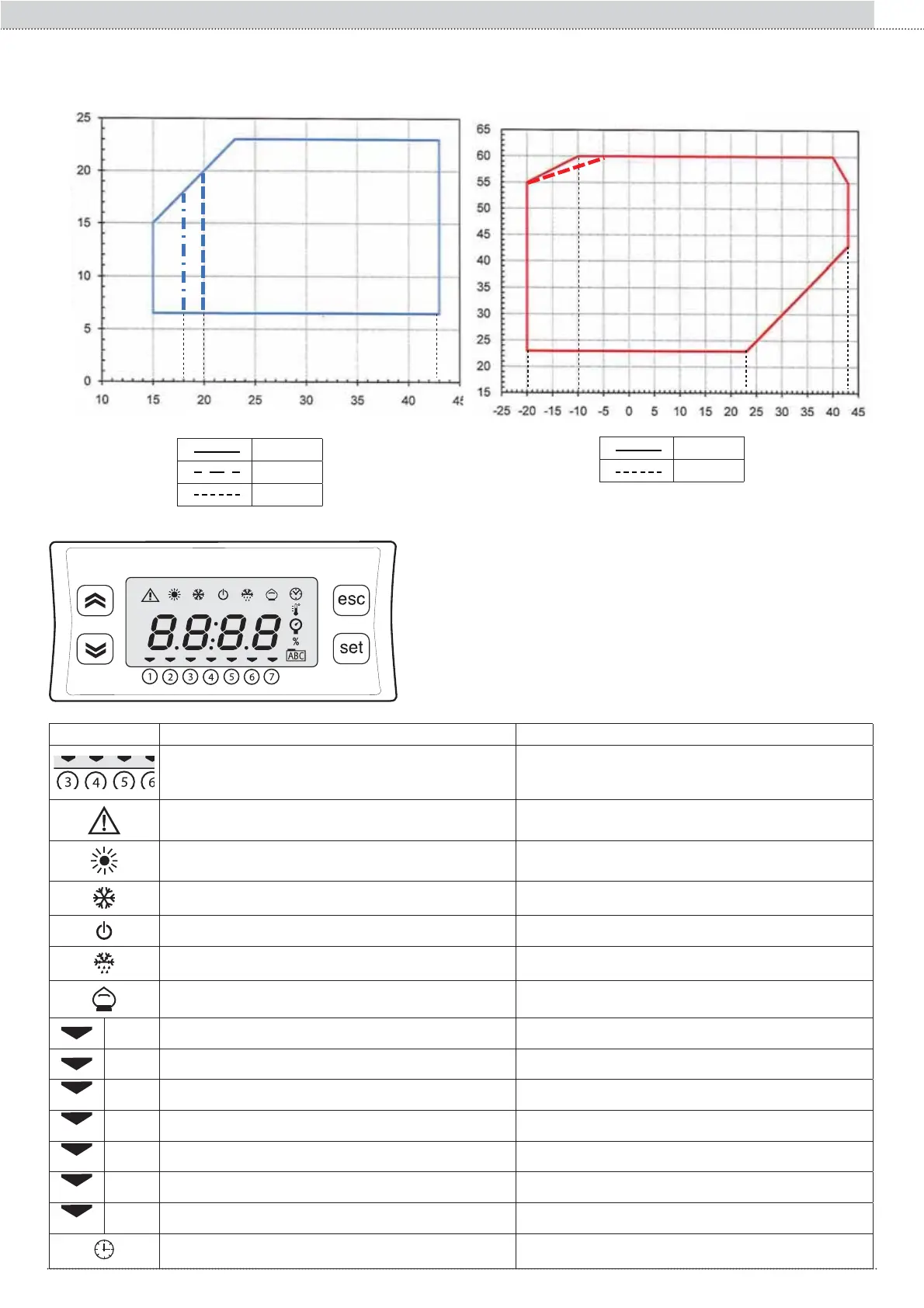

Operating range
Temperature gradient on the water from 5K to 10K.
Maximum temperature of the inlet water heating 55°C.
Maximum temperature of the produced water in heating 60°C.
Maximum temperature of the produced water in cooling 23°C.
HeatingCooling
105-116
110
105
110
116
65
Section I :: User
