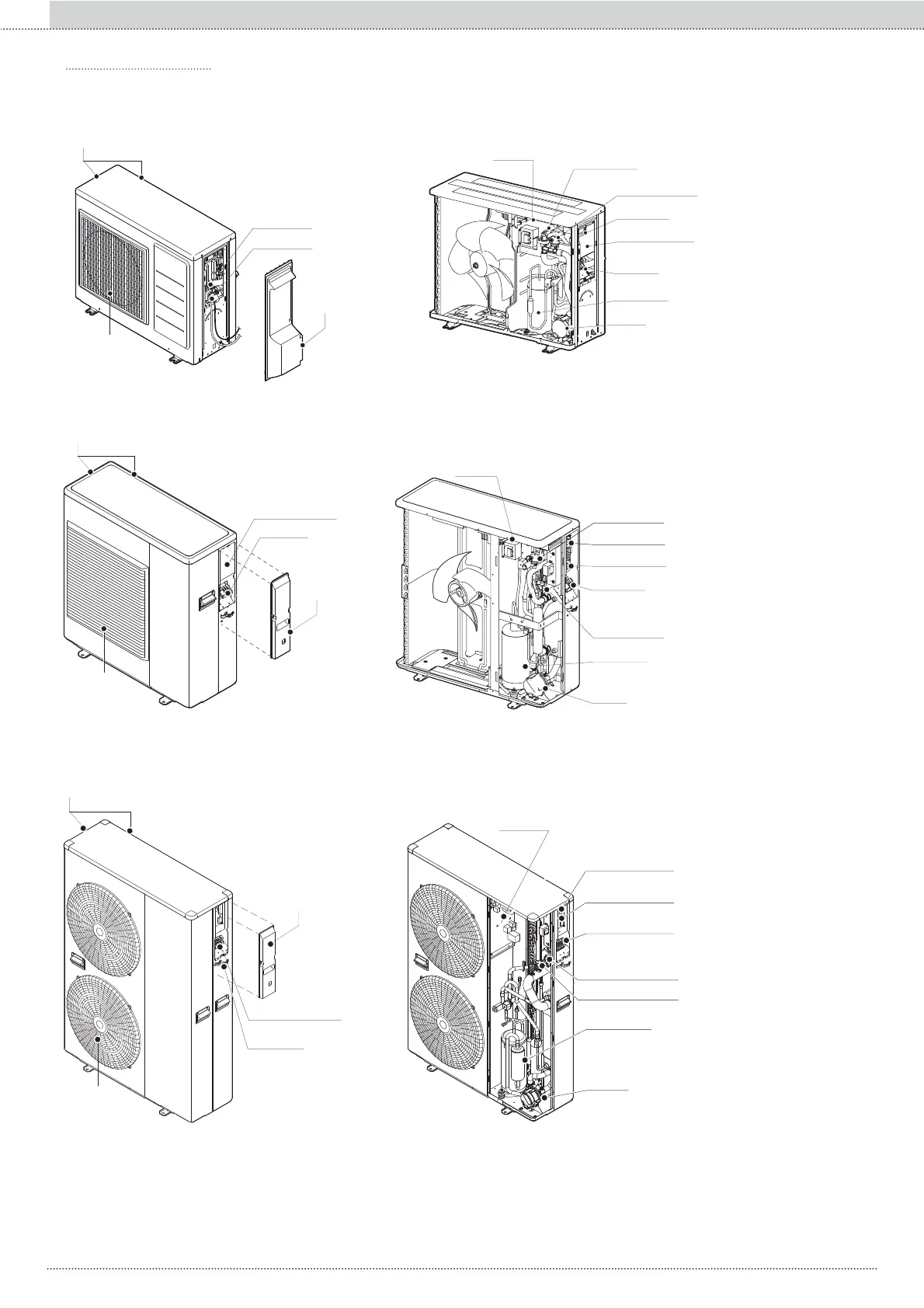

9.3 MAIN COMPONENTS
The heat pump has various safety parts and an internal circulator (Pump1) for quick installation
with the aid of a few external components.
The expansion tank is charged to the installer.
Air intake, found on the left
and on the back
Terminal board
Cable gland
Air ow
Electrical
panel cover
THAITY 105
SMART - MT
Air vent valve
Terminal board
Pump
Compressor
Safety valve
PCB MAIN
PCB Terminal Blo
c
THAITY 110
Air intake, found on the left
and on the back
Electrical panel
cover
SMART - MT
Air Vent Valve
PCB Terminal block
Pump
Compressor
Safety valve
Serial number
Terminal board
Air Flow
PCB MAIN
Terminal board
THAITY 116
PCB Terminal Block
Terminal board
Pump
Compressor
Safety valve
SMART-MT
Air intake, found on
the left and on the back
Air Flow
Terminal board
Cable gland
Electrical
panel cover
PCB (MAIN)
Air vent valve
