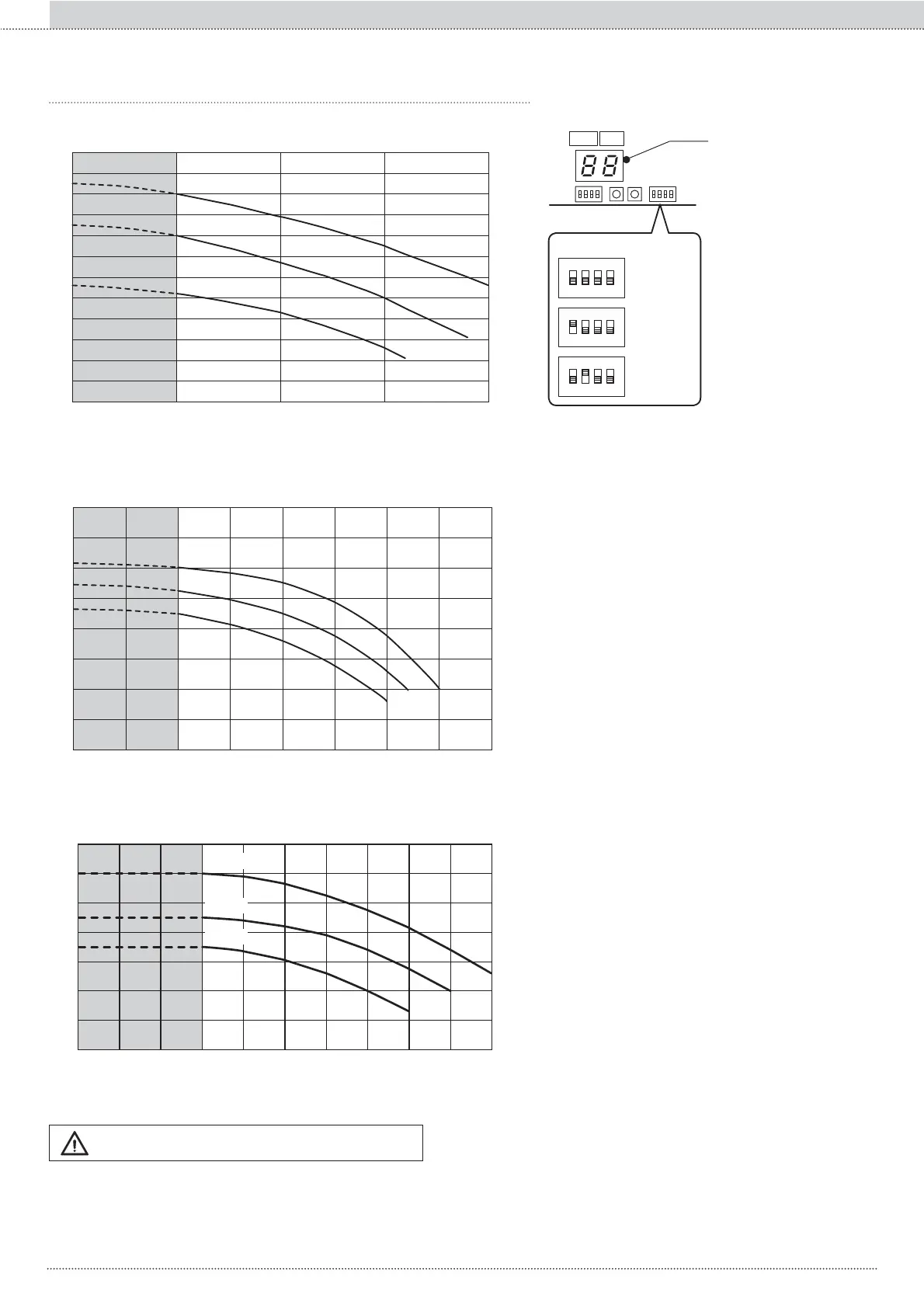

9.4 PORTATE E PRESSIONI DISPONIBILI ALL’USCITA DELLA POMPA DI CALORE
ATTENZIONE
• La portata non deve essere inferiore a 5 l/m (mod. 105), 6 l/m (mod. 110), 15 /m (mod. 116)
0
10
20
30
40
50
60
70
80
90
100
110
120
kPa
0 5 10 15 20
(L/min)
Velocità 3
Velocità 2
Velocità 1
THAIY 105
0
10
20
30
40
50
60
70
80
010520
15
25 30 35 40
(L/min)
Velocità 3
Velocità 2
Velocità 1
THAIY 110
0
20
40
60
80
100
120
140
(L/min)
01020304050
Velocità 3
Velocità 2
Velocità 1
THAIY 116
PCB DISPLAY
SW3
ON
4
3
2
1
OFFON
4
3
2
1
OFFON
4
3
2
1
OFF
SW3
Velocità 3
(Massima)
Velocità 2
(Media)
Velocità 1
(Minima)
Il circolatore dispone
di tre velocità.
La velocità è selezionabile
attraverso i dip switch 1 e 2
di SW3 sulla PCB-TERMI-
NAL BLOCK.
Di fabbrica è selezionata la
Velocità 3 (Massima).
kPa
kPa
34
Sezione II :: Installazione e manutenzione
