Ricoh A-P4 - Page 110

2. Rear lower cover ( x4) (See ‘Covers and Common Units – Rear Covers’.)
3. Rear upper cover ( x4) (See ‘Covers and Common Units – Rear Covers’.)
4. Tray lift motor (See ‘Tray Lift Motor’.)

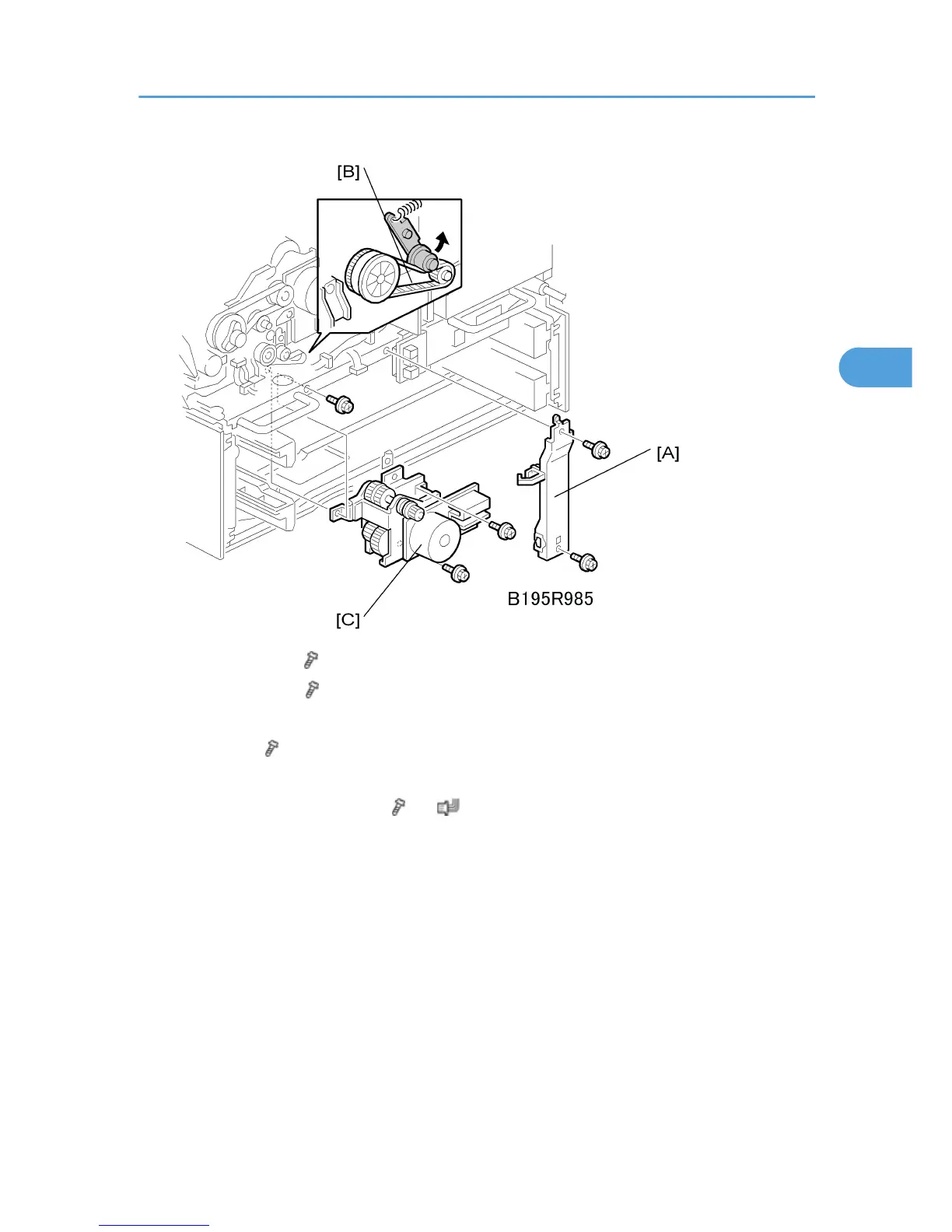

5. Support [A] ( x2, harnesses x2)
6. Timing belt [B] (Raise arm to release tension on belt.)
7. Feed/development motor [C] ( x3, x2)
Paper Feed
109
3
