Ricoh A-P4 - Drive Layout

3 Large Capacity Tray (LCT)
4 Paper tray unit
5 Two-Tray Finisher
6 Bridge unit

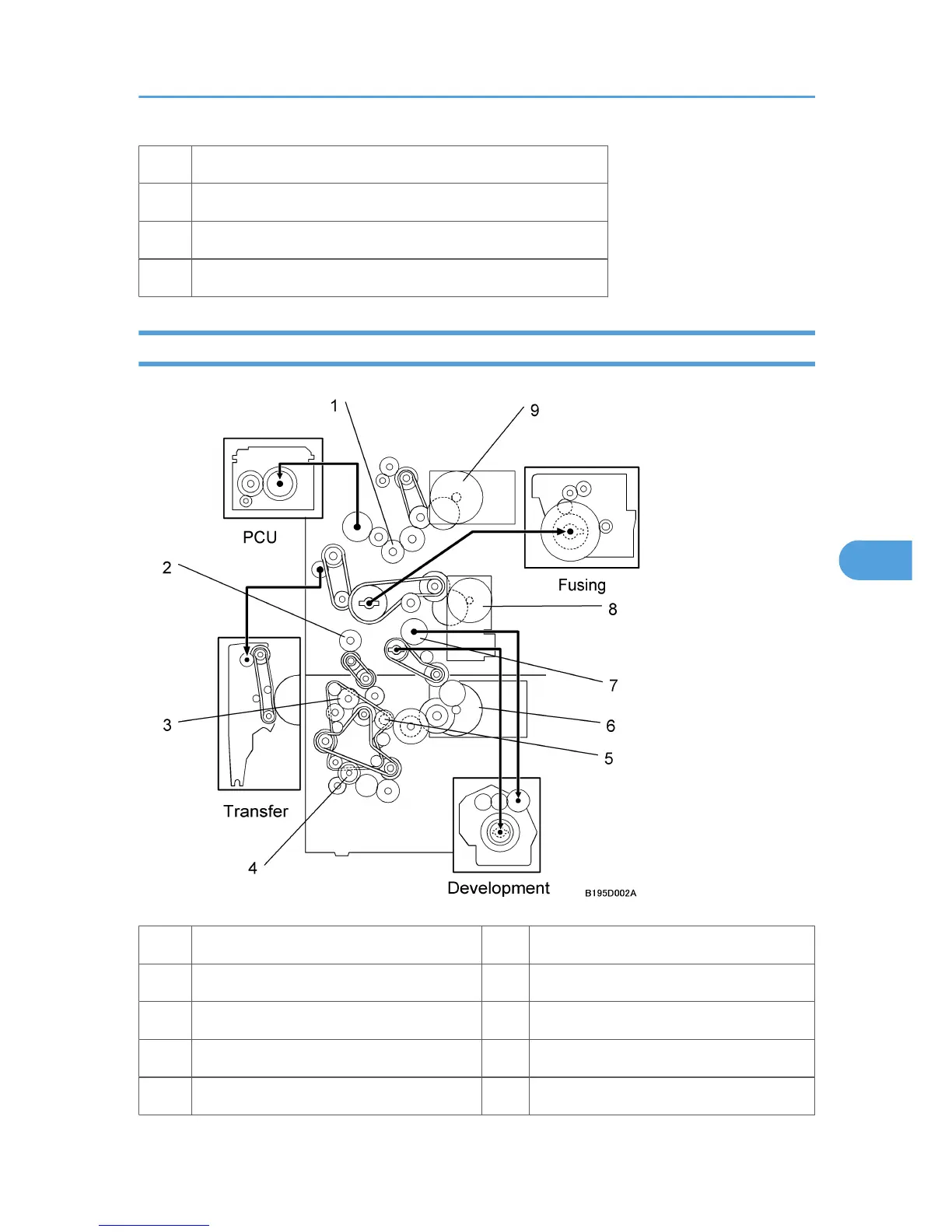

Drive Layout
1 Transfer Belt Contact Clutch 6 Paper Feed/Development Motor
2 Registration Clutch 7 Development Clutch
3 Upper Paper Feed Clutch 8 Main Motor
4 Lower Paper Feed Clutch 9 Fusing/Exit Motor
5 Relay Clutch
Machine Overview
301
6
