Ricoh A-P4 - Paper End Sensor, Pick-Up Solenoid

Paper End Sensor, Pick-Up Solenoid

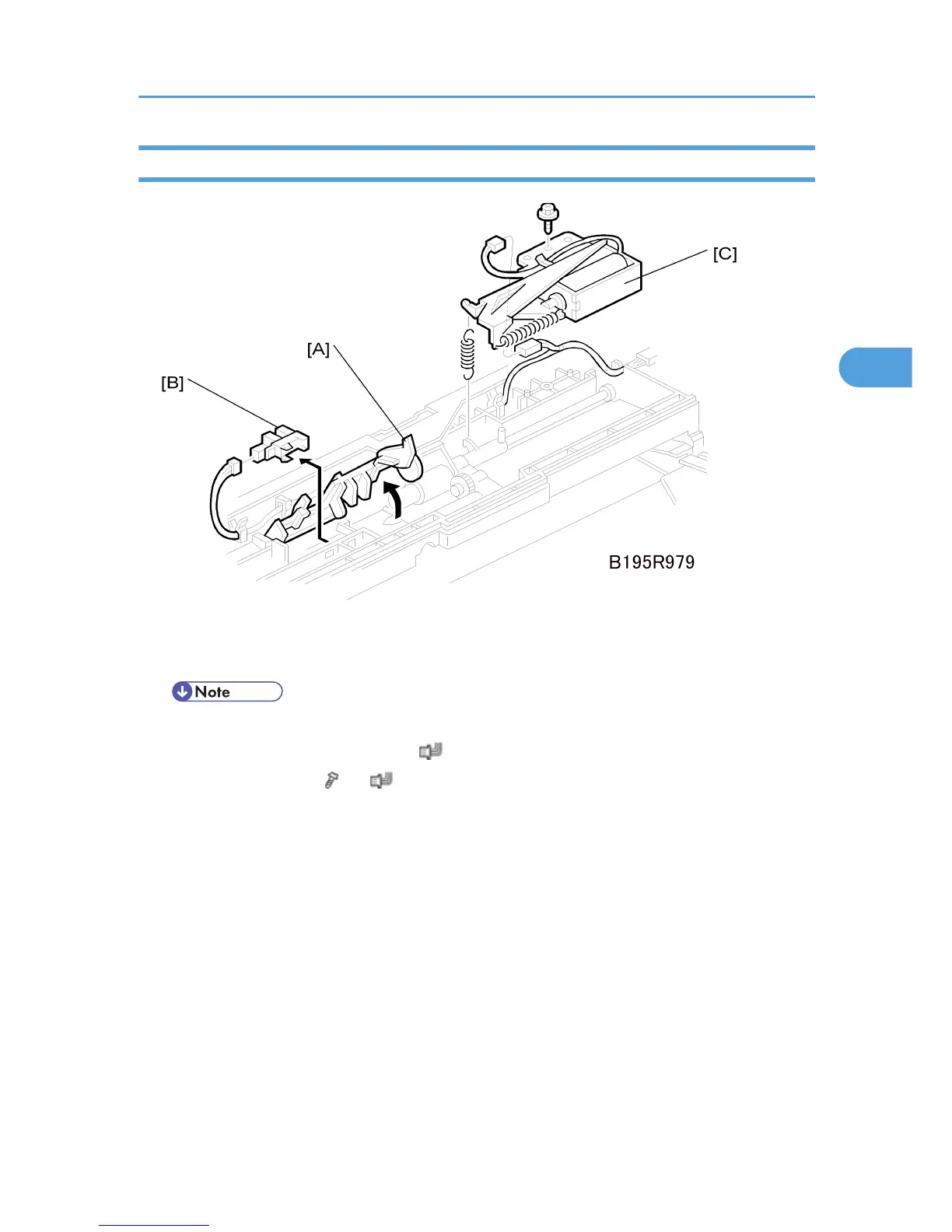

1. Upper cover (See ‘Covers’.)
2. Lift the paper end feeler [A].
• Before reinstalling the upper cover, return the paper end feeler to its original position.
3. Replace the paper end sensor [B] ( x1).
4. Pick-up solenoid [C] ( x1, x1, spring x1)
