1-BIN TRAY UNIT INSTALLATION
SM 3-27 B089/B093
Installation

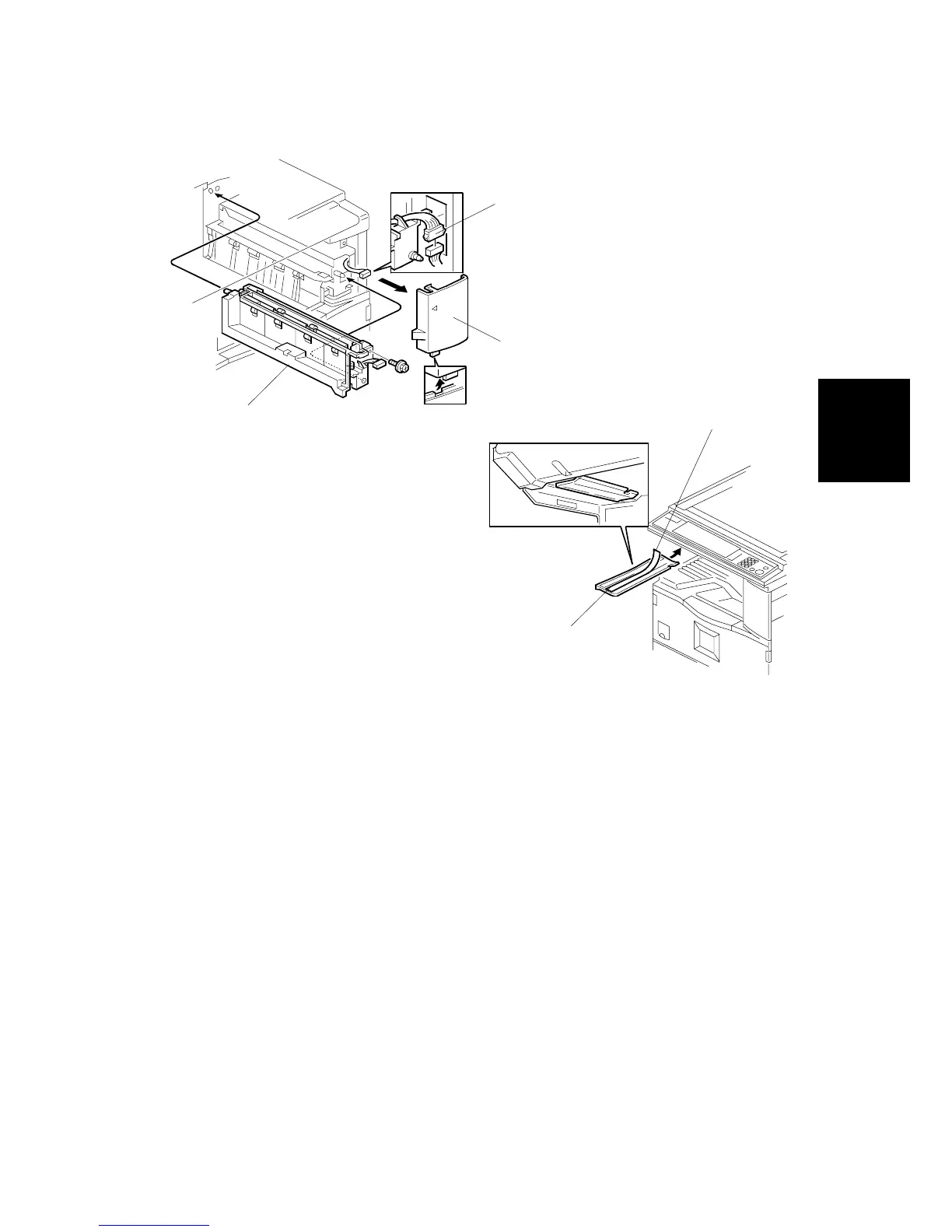

3. If the front right cover [A] is installed, remove it.
4. Install the 1-bin tray unit [B] ( x 1).
5. Connect the connector [C].
6. Reinstall the front right cover.
7. Peel off the backing [D] of the double-sided tape attached to the paper guide
[E]. Then attach the paper guide to the underside of the scanner unit as shown.
B413I103.WMF
B413I500.WMF
[D]
[E]
[B]
[C]
[A]
To Next Page
