BRIDGE UNIT INSTALLATION
SM 3-39 B089/B093
Installation
3.11.2 INSTALLATION PROCEDURE
CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.

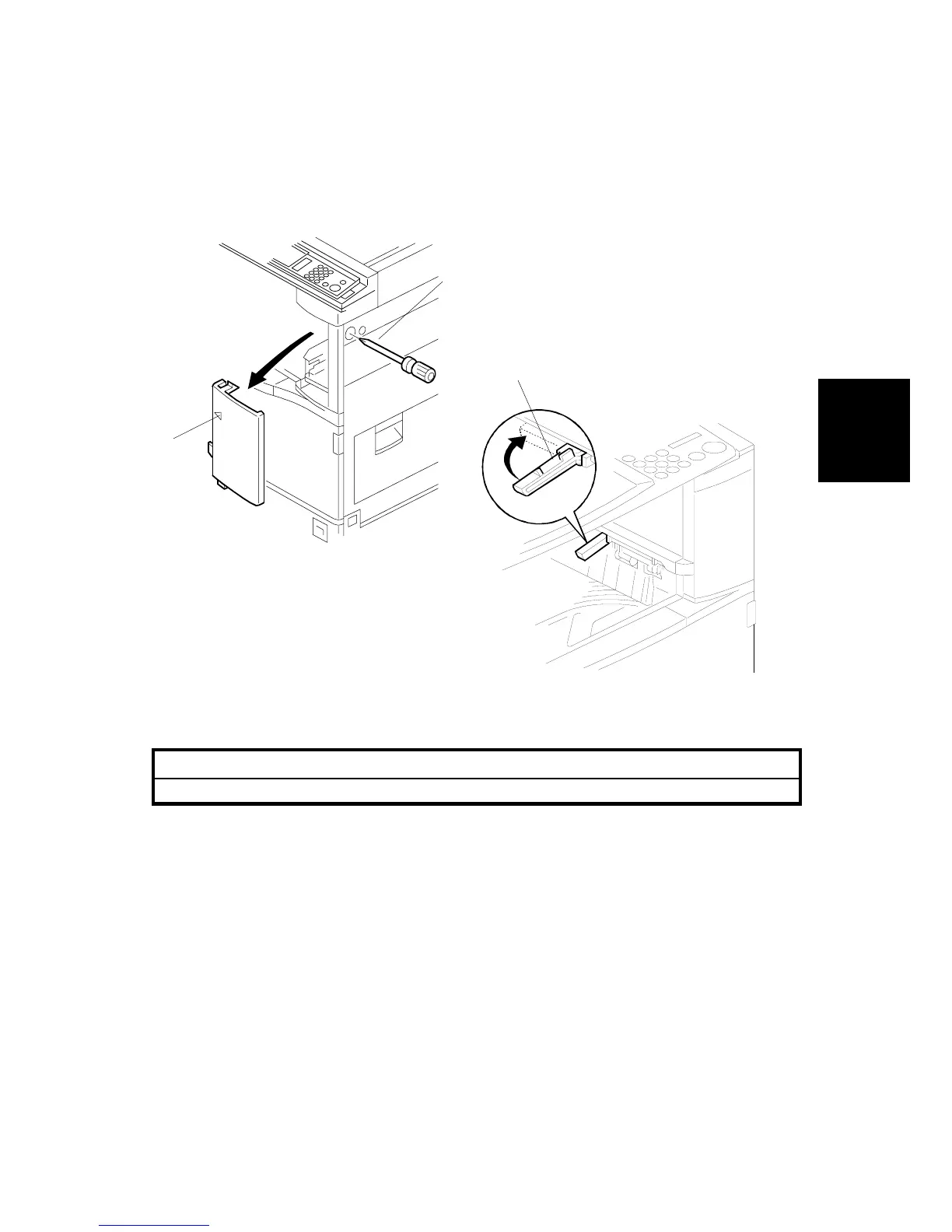

2. Loosen the screw [A] and remove the front right cover [B].
3. If the sensor feeler [C] is out, fold it away into the machine.
