Function and Name of Each Part
18
Function and Name of Each Part

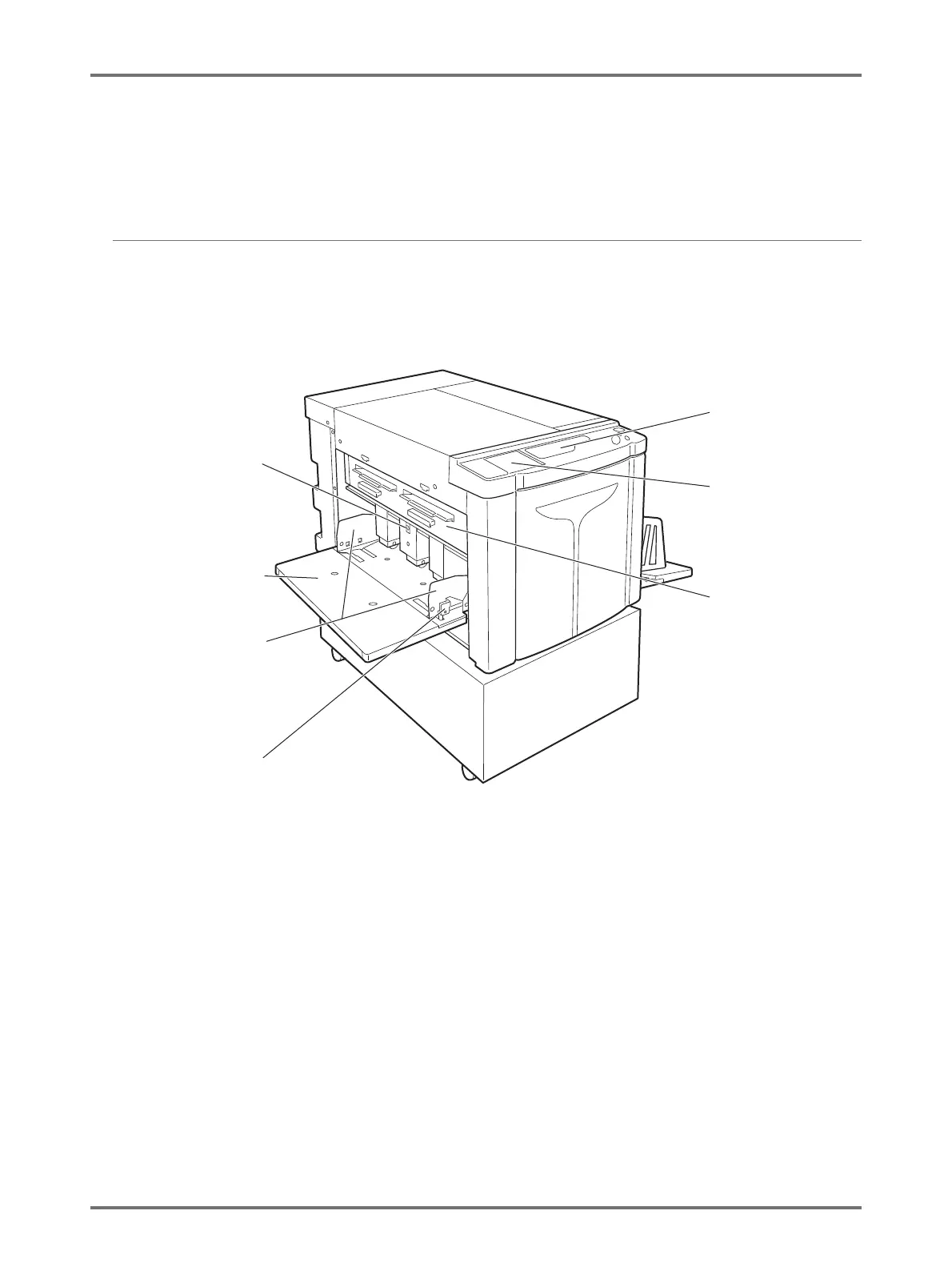

Paper Feed Tray Side
Sub Control Panel
(

p.22)
Main Control Panel
(

p.20)
Master Disposal Box
(

p.112)
Holds discarded
masters.
Feed Tray Ascent/
Descent Button
(

p.27)
Lowers or raises the
Paper Feed Tray when
changing or adding
paper.
Paper Feed Tray (

p.26)
Holds paper.
Feed Tray Paper Guides
(

p.26)
Holds and guides
paper. Adjusts to the
size of the paper.
Feed Tray Paper
Guides Lock Lever
(

p.26)
Locks the Feed Tray
Paper Guides.
