Chapter 6 Configure the Redundant I/O System

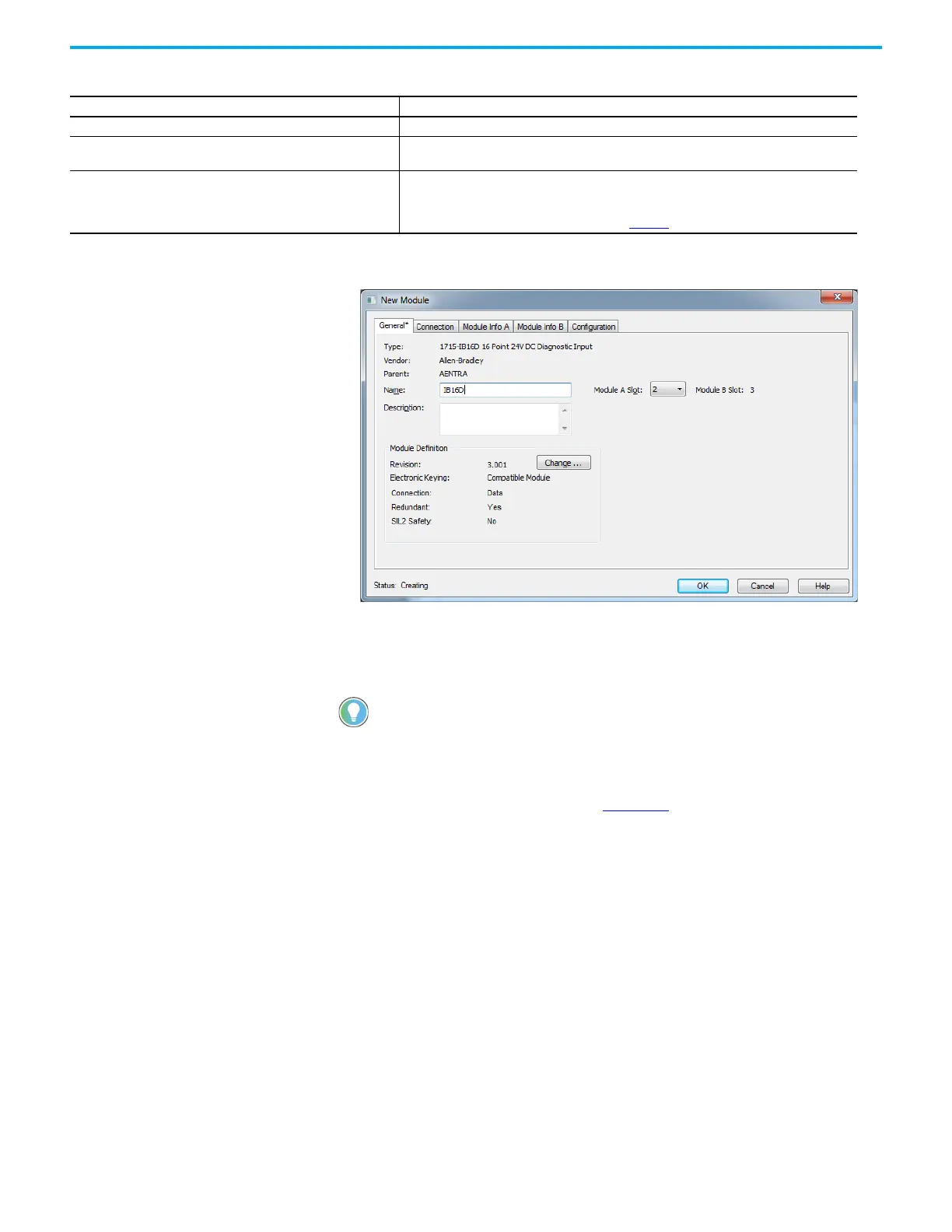

The Module Properties dialog box appears.
4. Verify Redundant is Yes for Duplex mode.
Note the additional module slot on the Module Properties dialog box.
5. Click OK.
6. Click the Connection tab.
The Connection tab appears. See page 169.
7. Click the Module Info A tab.
The Module Info A tab appears.
Connection Leave as ‘Data’ - Listen Only is not supported.
Redundant
Yes for Duplex mode.
No for Simplex mode.
SIL 2 Safety
Choose No if SIL 2 operation is not required.
Choose Yes to enable SIL 2 operation. The safety pull-down menu appears only if using Add-on
Profile version 2.01.007 or later. Two new tabs are available for SIL 2 configuration if you choose
Yes. For information on SIL 2 configuration, see Chapter
.
Table 30 - Module Definition Parameters for Digital Input Module Duplex Mode
Parameters Description
See Online Help in the application for more information on how to set Module
Definition parameters.
