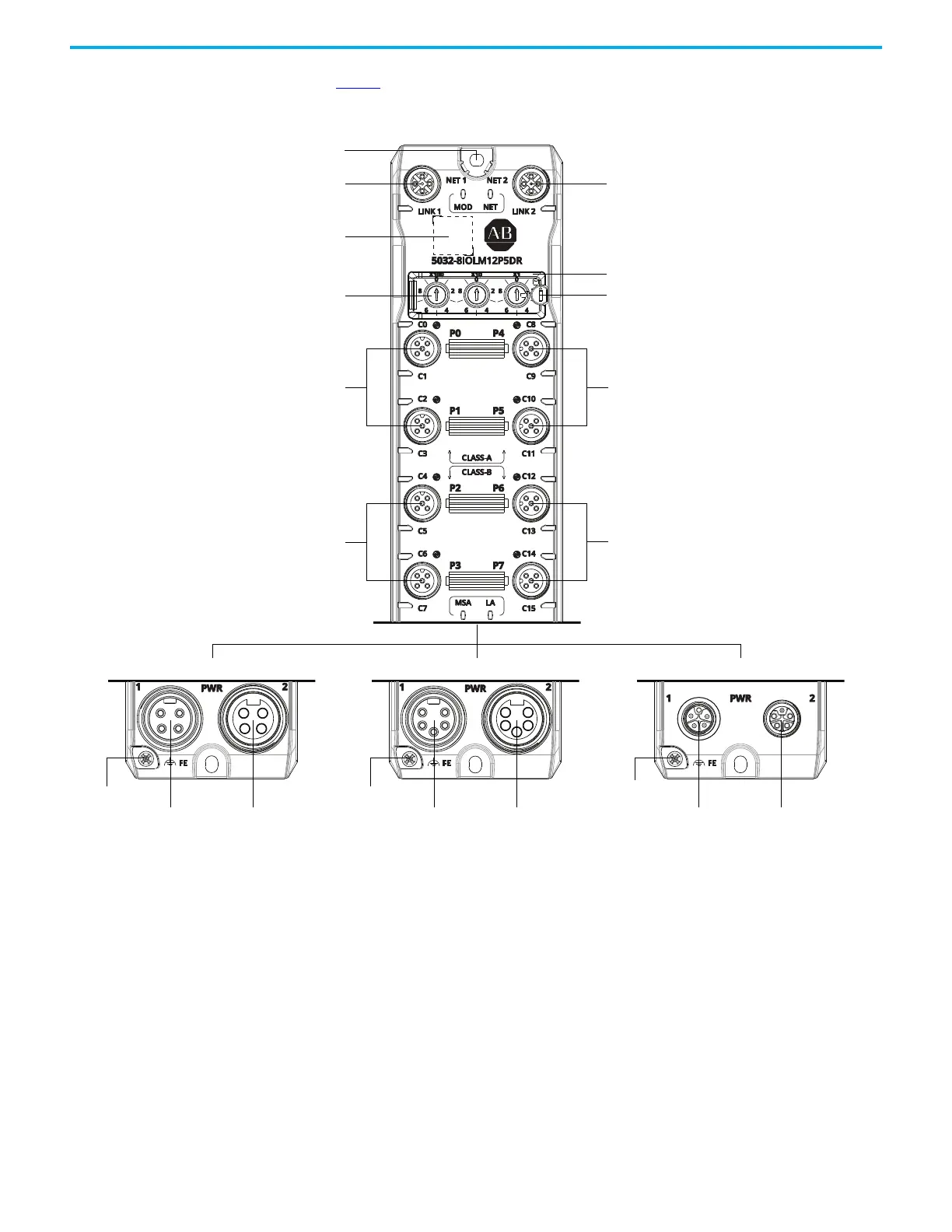

5032-8IOLM12DR 5032-8IOLM12P5DR 5032-8IOLM12M12LDR
4-pin mini power
connector (male)
4-pin mini power
connector (female)
5-pin mini power
connector (male)
5-pin mini power
connector (female)
M12, L-coded power
connector (male)
M12, L-coded power
connector (female)
M12, A-coded
I/O connectors (Class A)
M12, A-coded I/O
connectors (Class A)
M12, D-coded network
connector (Link 1)
M12, D-coded network
connector (Link 2)
M12, A-coded I/O
connectors (Class B)
M12, A-coded I/O
connectors (Class B)
Network address switches
Functional Earth A
(1)
Functional Earth B
(2)
Functional Earth B
(2)
Functional Earth B
(2)
(1) Functional Earth A grounds the module EtherNet/IP communication circuitry, which is designed to mitigate the effect of noise on the network. The module requires a solid earth ground connection, either through a
metal screw to a grounded metal panel or through a wire.
(2) Functional Earth B grounds the module I/O and power circuitries to mitigate the effect of noise on the network. Functional Earth B is internally connected to pin 5 of power connectors in 5032-8IOLM12P5DR and
5032-8IOLM12M12LDR. The module requires a solid earth ground connection, either through the 5-pin mini or M12 L-coded power patchcord, or through a wire to the screw point.
(3) The QR Code contains a link to the product webpage that provides details on the product such as lifecycle status and documentation.
Removable IP switch cover
QR Code
(3)
IP switch cover lock
