Appendix C
IO-Link Master Module and IO-Link Device Tag
Definitions
When you create an IO-Link master module or IO-Link device, the Studio 5000 Logix Designer
application creates a set of tags that you can view in the Tag Editor. Each configured feature
on your module or device has a distinct tag that is available for use in the controller ladder
program.
Tag Name Conventions The tag names use defined naming conventions. The conventions are as follows:
Example module tag name = Name:I.Pt01.Data
• Name = Name of the module
•I = Tag type
• Pt01 = Module channel number
• Data = Tag function
In this example, Data represents the input data that is returned to the controller.

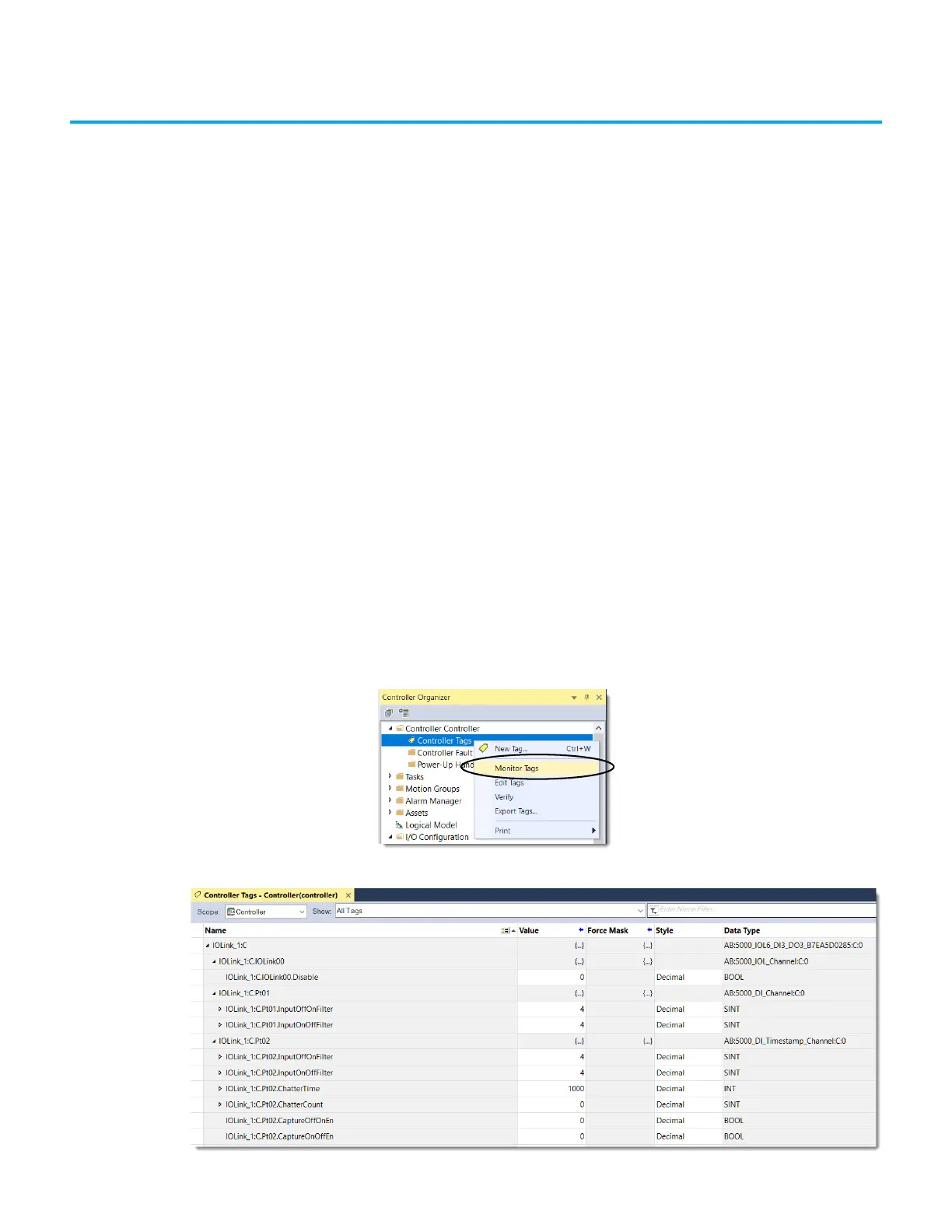

Access the Tags You view tags from the Tag Editor.
1. Open your Studio 5000 Logix Designer application project.
2. Right-click Controller Tags and select Monitor Tags.
3. Open the tags as necessary to view specific tags.
