Chapter 5 Configure the IO-Link Master Module
XX - Digital Input, Fallback
This view is available when the channel is configured as “Digital Input, Fallback”. You can
perform certain tasks only when the project is online.
This view is a combination of the views for “IO-Link” and “Digital Input”. For more information,
see the following:
• XX - IO-Link
on page 50
• XX - Digital Input on page 51
XX - Digital Input, Timestamp, Fallback
This view is available when the channel is configured as “Digital Input, Timestamp, Fallback”.
You can perform certain tasks only when the project is online.
This view is a combination of the views for “IO-Link” and “Digital Input, Timestamp”. For more
information, see the following:
• XX - IO-Link
on page 50
• XX - Digital Input, Timestamp on page 51

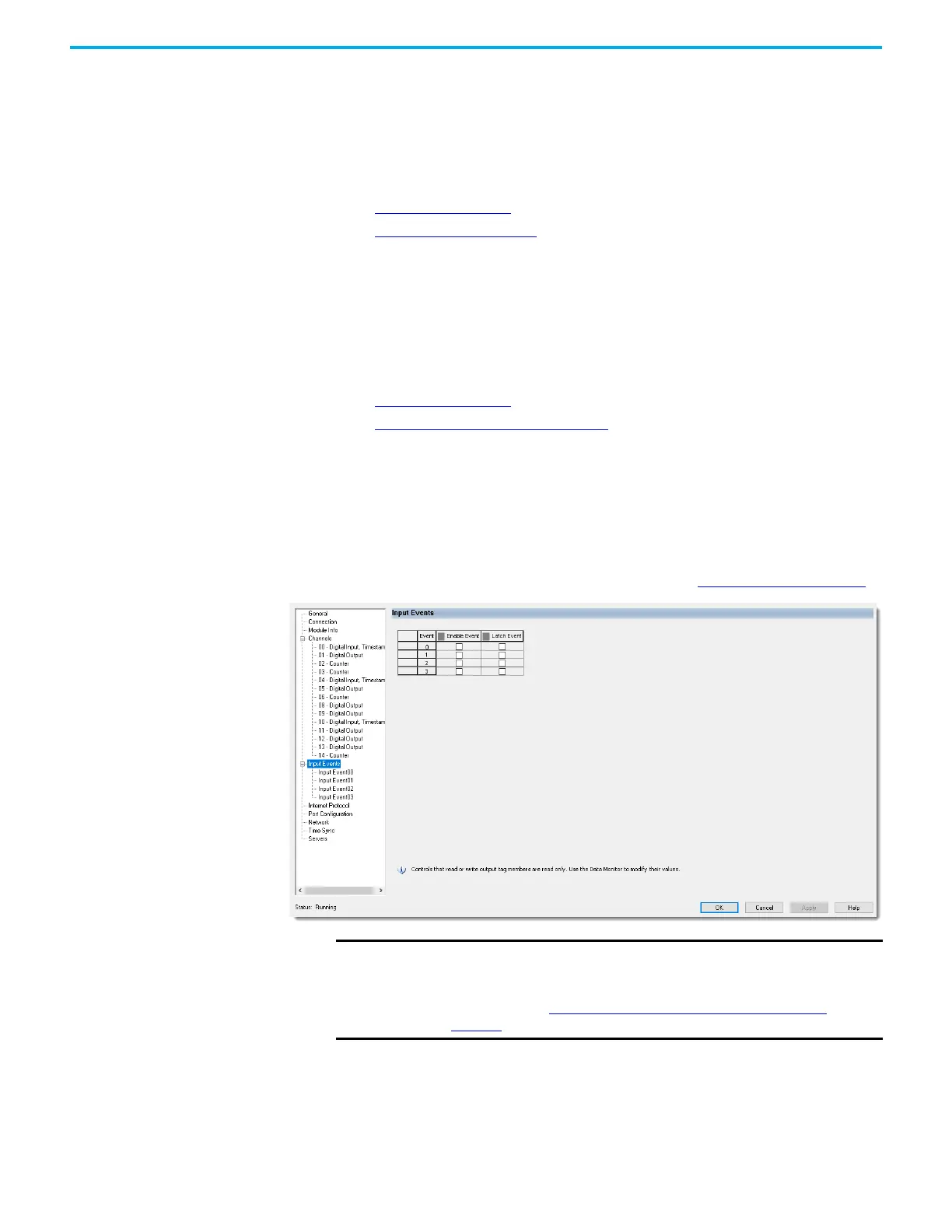

Input Events View
The Input Events view shows an overview of the configuration values for all input events. You
can perform certain tasks only when the project is online.
This view is only available when you select the “Data with Events” or “Data with Events and
Ethernet Status” connection type in the Module Definition. See Module Definition
on page 45.
IMPORTANT You cannot configure events on the Input Events view. The parameters
that are displayed in this view are read-only.
You must use the Event Output tags to configure an event. For more
information, see Event Output Tags for IO-Link Master Module
on
page 104.
