82 Rockwell Automation Publication 5032-UM001A-EN-P - April 2023
Appendix A Troubleshoot Your IO-Link Master Module
Use the Studio 5000 Logix
Designer Application for
Troubleshooting
The Studio 5000 Logix Designer application indicates the presence of fault conditions.
Fault conditions are reported in the following ways:
• Warning Signal in the I/O Configuration Tree
• Status and Fault Information in Module Properties
• Diagnostics in Studio 5000 Logix Designer Application
• Studio 5000 Logix Designer Application Tag Editor
Warning Signal in the I/O Configuration Tree
As shown in Figure 5, a warning icon appears in the I/O Configuration tree when a fault occurs.

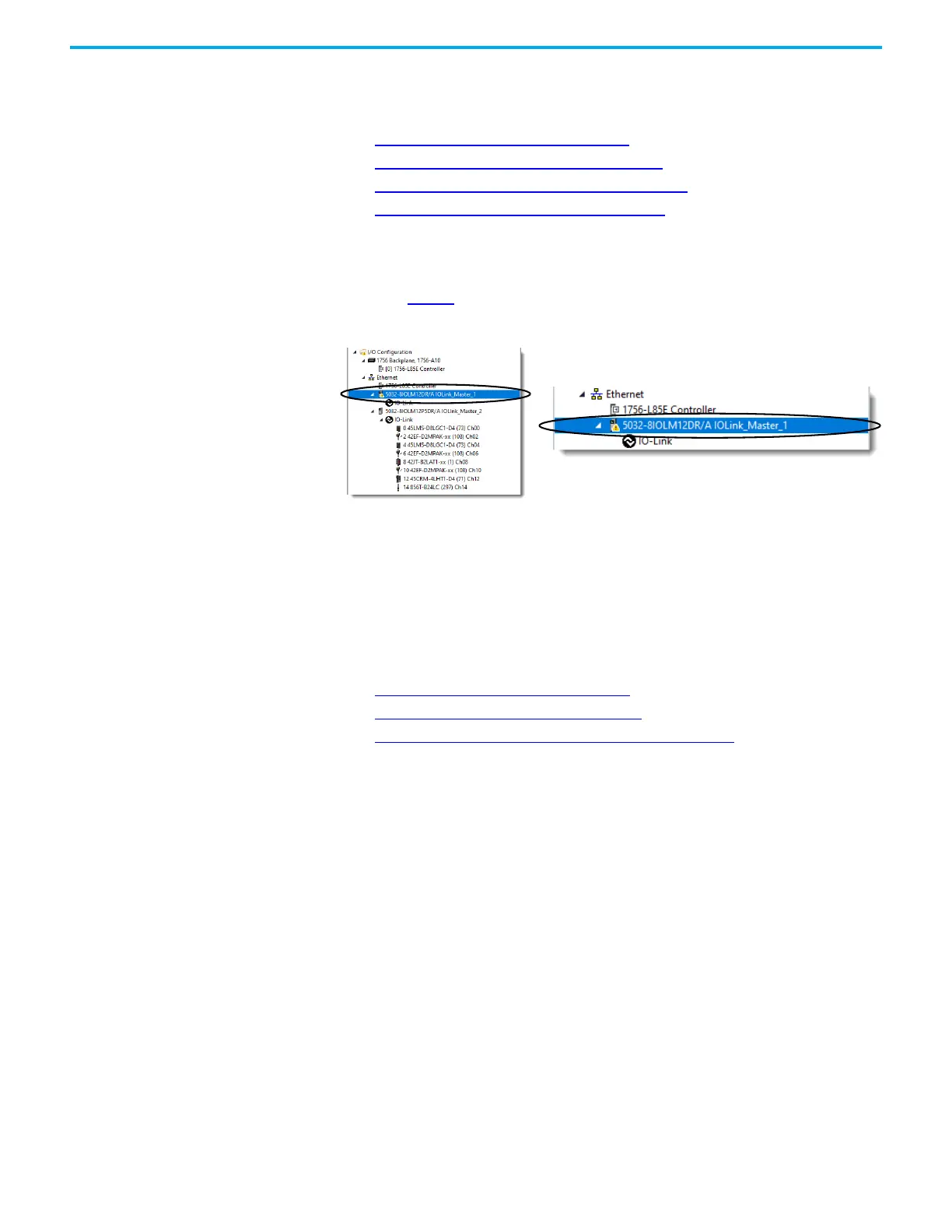

Figure 5 - Warning Icon in I/O Configuration Tree
Status and Fault Information in Module Properties
The Module Properties window in the Studio 5000 Logix Designer application includes a series
of views for the IO-Link master module. The numbers and types of views depend on the
module configuration.
Each view includes options to configure the module or monitor the status of the module. The
following are ways to monitor the state of a module for faults:
• Module Status on Module Properties Window
• Module Fault Descriptions on Connection View
• Module Fault Information and Diagnostics on Module Info View
