Appendix E
IO-Link Connectivity

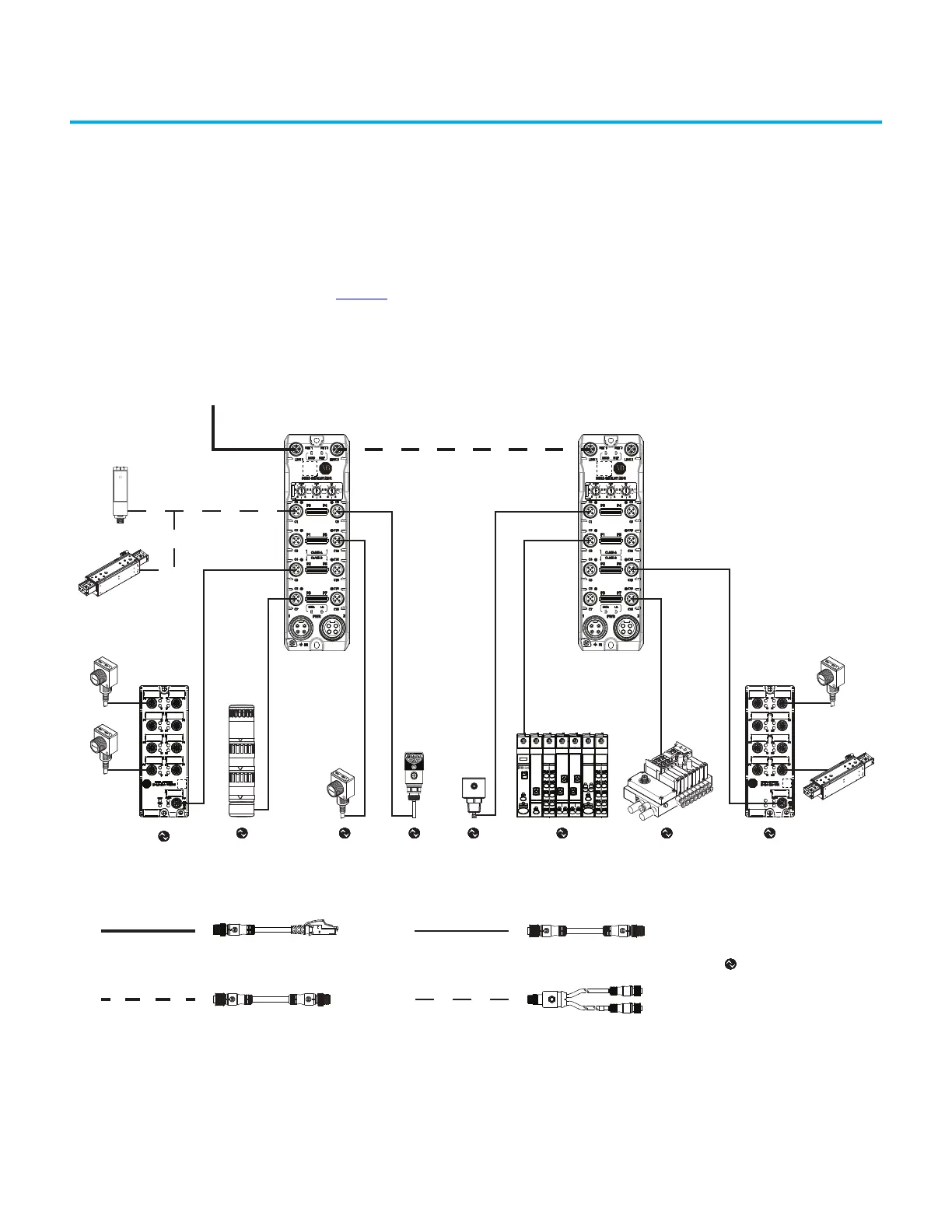

Example Diagram Figure 19 provides an example of the different IO-Link devices that you can connect to your
ArmorBlock 5000 8-channel IO-Link master module.
Figure 19 - IO-Link Connectivity Example
0V
LINE + 1
DC24V
40A
1694-PF1
L+
C/Q
L-
X81
0V
LINE
+1
DC24V
40A
1694-PFD
2.1 2.2
LOAD +
DC24V
Class 2
xA
xA
1694-PM2
2.1 2.2
LOAD +
DC24V
xA
xA
1694-PM2
DC24V
1694-PM1
2.1
LOAD +
xA
LOAD +
DC24V
20A
1694-DM2
2.5
2.4 2.9
2.3 2.8
2.2 2.7
2.1 2.6
2.10
LOAD +
DC24V
20A
1694-DM2
2.5
2.4 2.9
2.3 2.8
2.2 2.7
2.1 2.6
2.10
5032-8IOLM12DR
42EF RightSight™
photoelectric
sensor
Actuator
Configurable digital
input/output
Class A
1732IL-10X6M12
IO-Link hub
856T Control
Tower™
837T
temperature
sensor
Level
sensor
1694 electronic
circuit protectors
Valve terminal
Sensor
45LMS laser
measurement
sensor
To EtherNet/IP network
Actuator
Sensor
Class B
1732IL-10X6M12
IO-Link hub
5032-8IOLM12DR
Class A = 889D-F4ACDM-x
Class B = 889D-F5ACDM-x
IO-Link connection
Sensor
879D-F4ACT1M-x
1585D-M4UBJM-2
1585D-M4TBDM-2
Class A
Class B
