Chapter 5 Configure the IO-Link Master Module

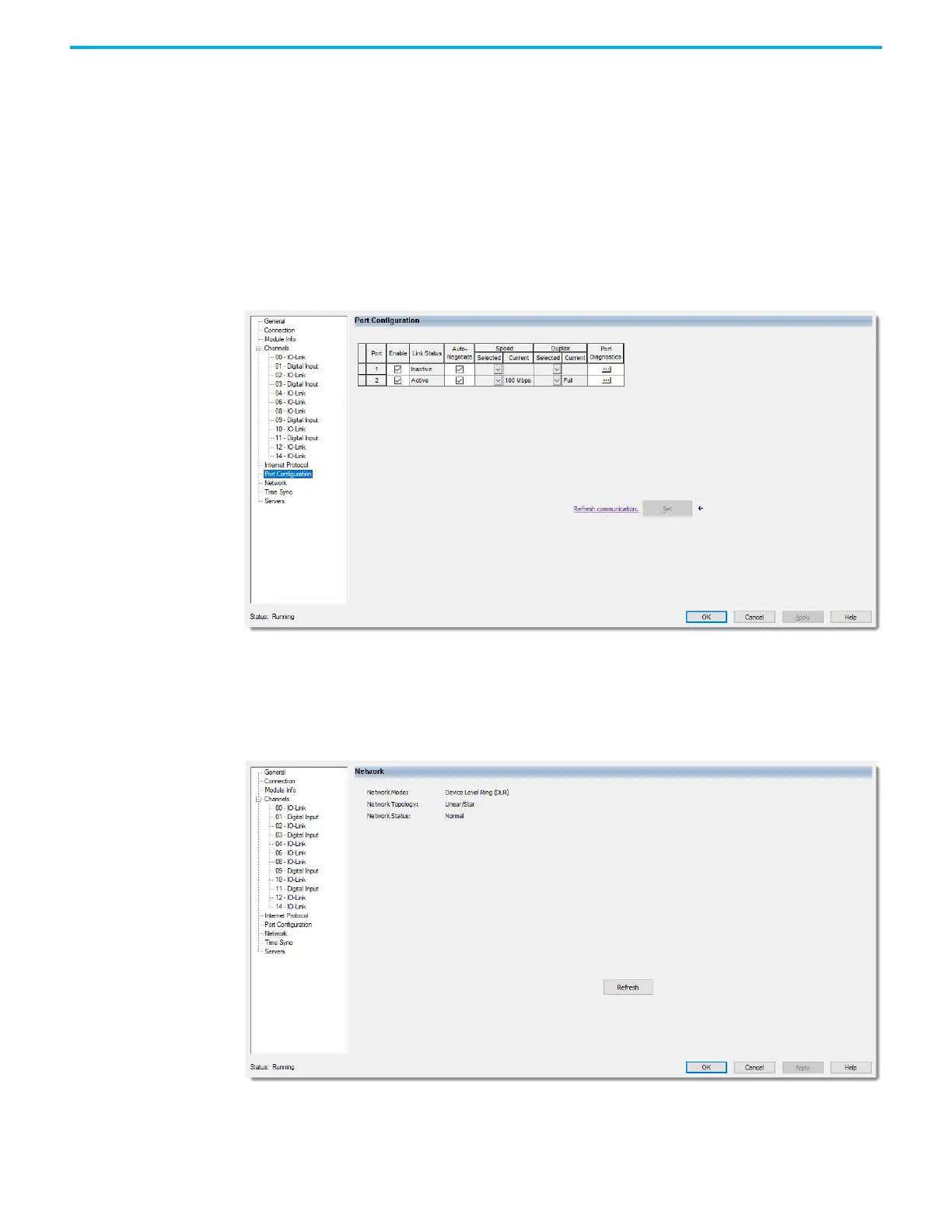

Port Configuration View
The Port Configuration view shows the status information of the network ports. You can
perform certain tasks only when the project is online.
Use the Port Configuration view to complete the following tasks:
• Enable/disable network ports.
• Enable/disable Auto-Negotiate.
• Select communication speed.
• Select Duplex mode.
• Access Port Diagnostics.
Network View
The Network view shows the status information that is related to the Device Level Ring (DLR)
Network Mode when the project is online.
