86 Rockwell Automation Publication 5032-UM001A-EN-P - April 2023
Appendix A Troubleshoot Your IO-Link Master Module
Channel Diagnostics

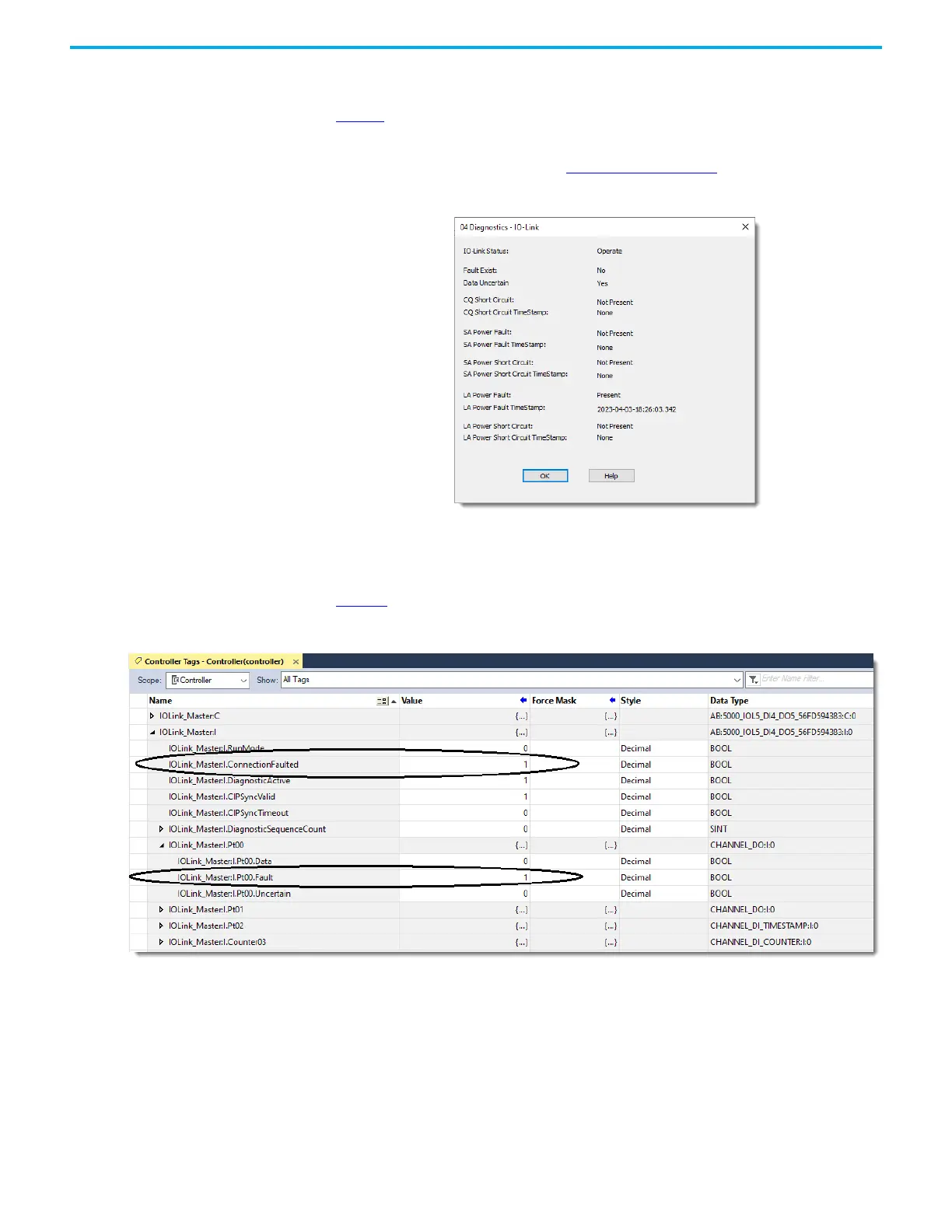

Figure 11 shows the Channel Diagnostics, which provide information on an individual channel
basis.
To access the Channel Diagnostics, see Channels View
on page 49.
Figure 11 - Channel Diagnostics
Studio 5000 Logix Designer Application Tag Editor
Figure 12 shows how fault conditions are indicated in the controller tags for the module.
Figure 12 - Fault Indication in Controller Tags for IO-Link Master Module
