Appendix A Troubleshoot Your IO-Link Master Module
Module Status on Module Properties Window

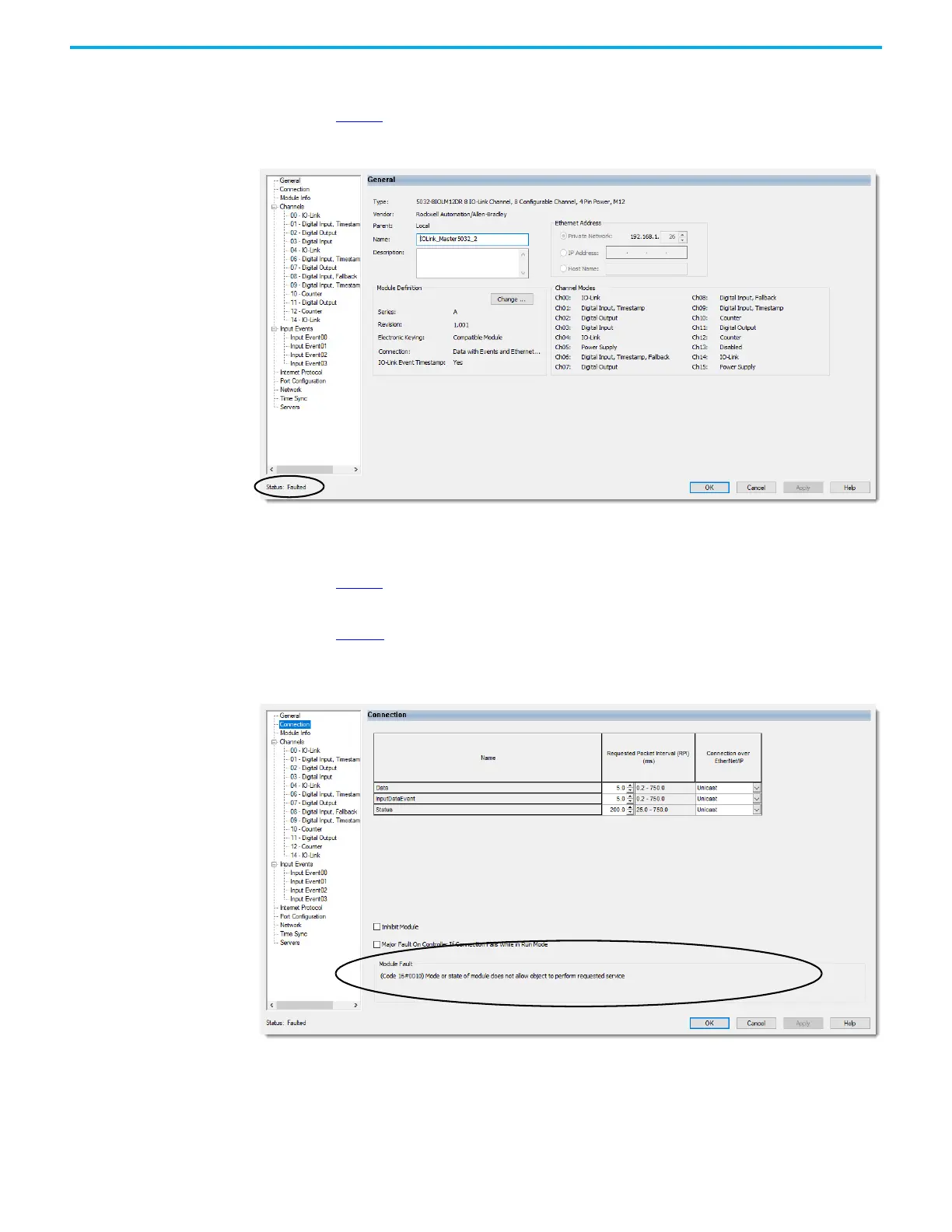

Figure 6 shows where the status of a module is indicated on the Module Properties window.
Figure 6 - Fault Message in Status Line
Module Fault Descriptions on Connection View
Figure 7 shows where a module fault description, which includes an error code that is
associated with the specific fault type, is indicated on the Connection view.
Table 22
describes the special connection error code for the ArmorBlock 5000 8-channel
IO-Link master module.
Figure 7 - Fault Description with Error Code
