Chapter 5 Configure the IO-Link Master Module

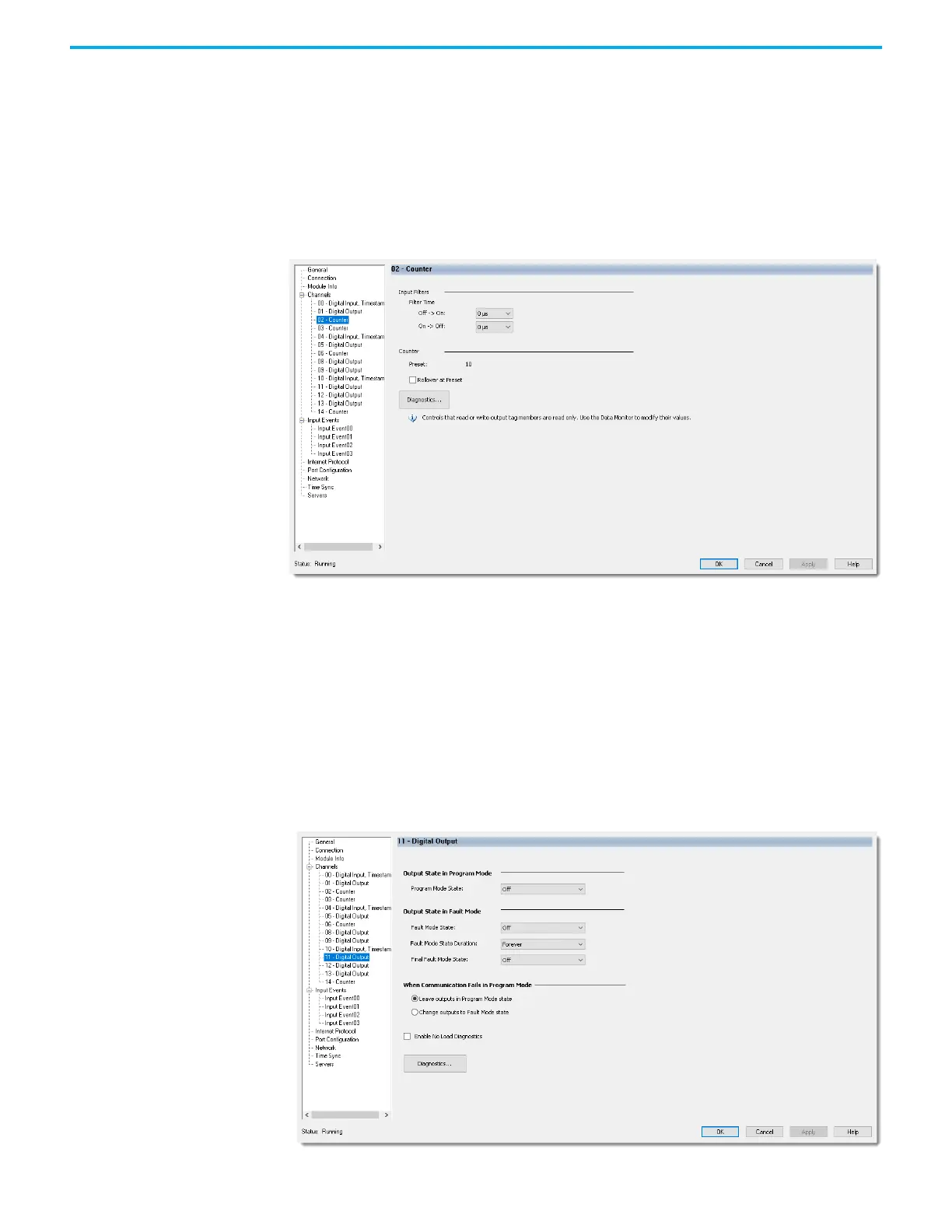

XX - Counter
This view is available when the channel is configured as “Digital Input, Counter”. You can
perform certain tasks only when the project is online.
Use this view to complete the following tasks:
• Select the Input Filter Time.
• Enable or disable Counter Rollover at Preset.
• Access the channel diagnostics.
XX - Digital Output
This view is available when the channel is configured as “Digital Output, Short Circuit”, “Digital
Output, Group Short Circuit” or “Digital Output, Short Circuit, No Load”. You can perform certain
tasks only when the project is online.
Use this view to complete the following tasks:
• Select the Program Mode and Fault Mode Output states.
• Enable or disable No Load Diagnostics only when the channel is configured as “Digital
Output, Short Circuit, No Load”.
• Access the channel diagnostics.
