Rockwell Automation Allen-Bradley IMPACT 1336 Series

6–4 Replacement Parts List
Publication 1336 IMPACT-6.8 – November, 2002

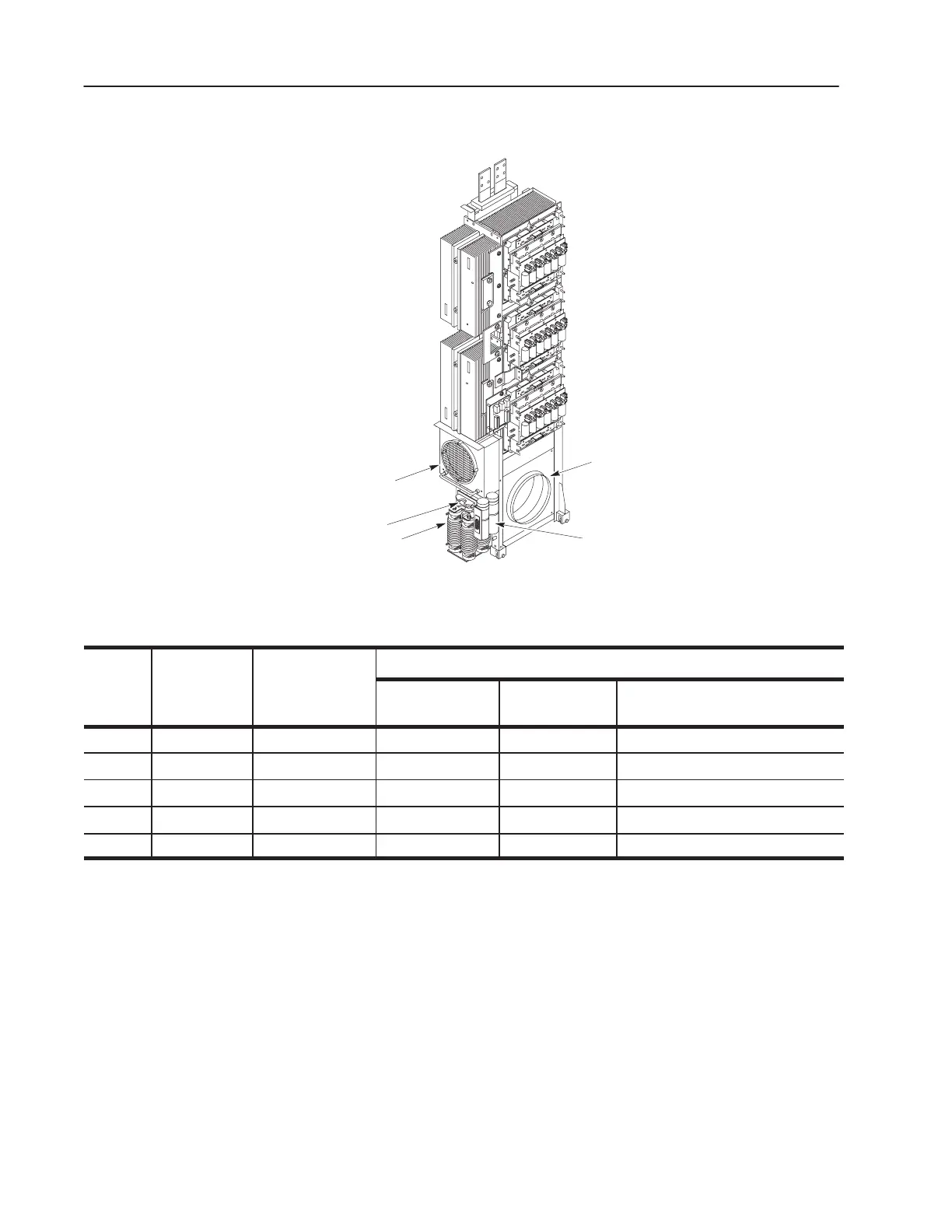

Figure 6.3
Fan Assembly Replacement Parts
22
21
23
24
25
Table 6.C
Fan Assembly Replacement Parts
Callout
Symbol on
Chapter
escr pt on
Procedures
Callout
S mbol on
Chapter 7
Schematics
Description
Access
1
(Ref: Ch. 3)
Test
(Ref: Ch. 4)
Replacement
(Ref: Ch. 5)
21 FAN1 Fan DNA DNA Replacing Inverter Bay Fan Assemblies
22 C38 – C39 Capacitor DNA DNA DNA
23 R10 – R13 Resistor DNA DNA DNA
24 F4 Fuse DNA DNA DNA
25 FAN2 Fan DNA DNA Replacing Inverter Bay Fan Assemblies
1. Access always requires the procedure: Opening the Drive Enclosure.
