Rotax 914 F - Engine Components, Engine Views, Numbering of Cylinders, Definition of Main Axes

Reference
Modification-No.
- 0 -
Page
18
Date
1996 05 10
Install
914 F
U ignition cover
I constant depression carb
O airbox
P engine suspension frame
{ stainless steel exhaust
system
} turbocharger
q turbo control unit (TCU)
w fuel pressure control
e servo motor
r servo cable
t cable assembly
y coolant pump
u expansion tank
i 2 separate oil pumps
7.3) Engine components, engine views, numbering of cylinders, definition of
main axes

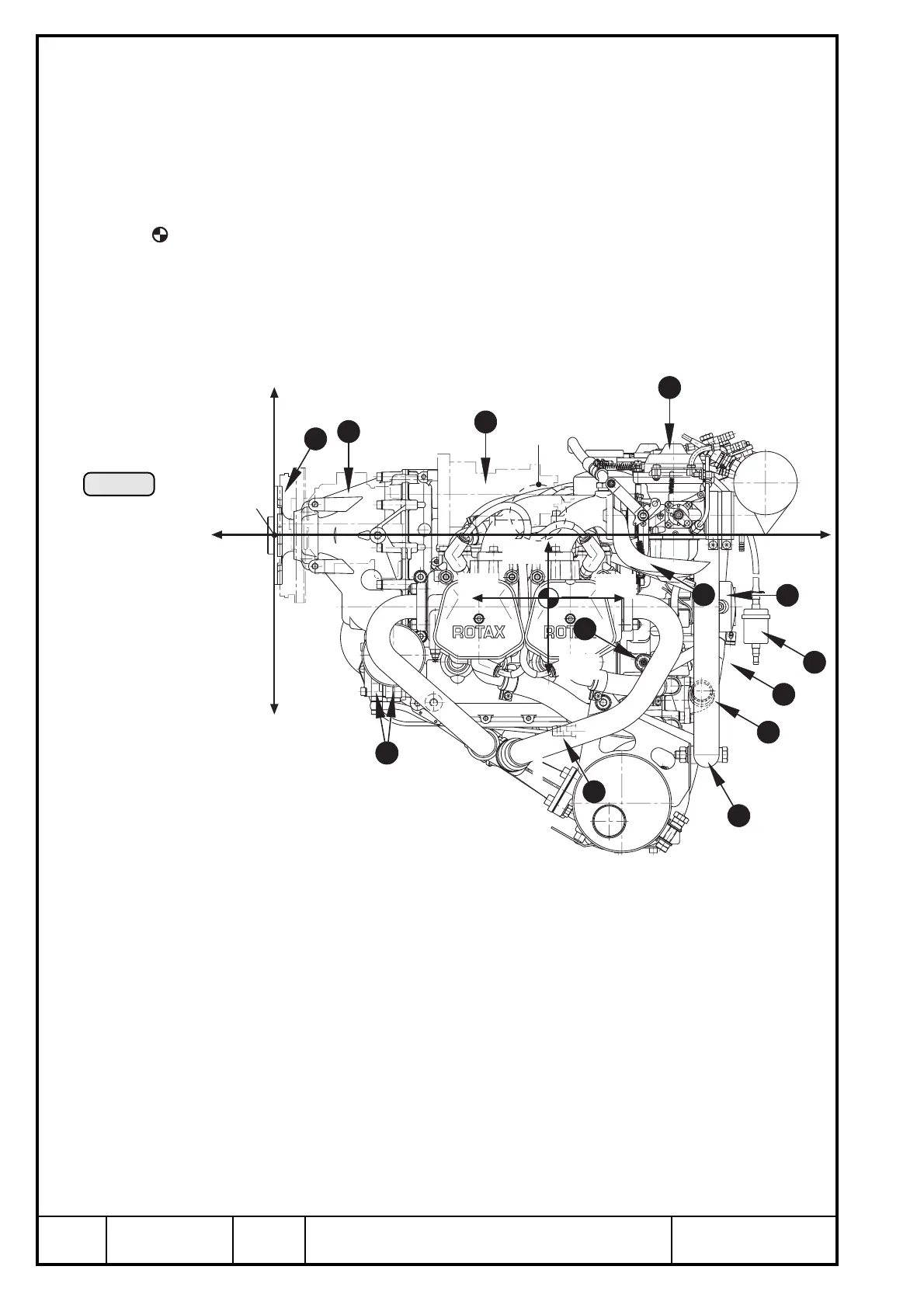

See illustration 2/3/4/5/6.
PTO power take off side
MS magneto side
A points of attachment for engine transport
centre of gravity
P zero reference point for all dimensions
◆ NOTE: Allow ±1 mm on all stated dimensions as manufacturing tolerance
x,y,z axes for system of coordinates
Cyl. 1 cylinder 1
Cyl. 2 cylinder 2
Cyl. 3 cylinder 3
Cyl. 4 cylinder 4
Q engine number
W propeller flange
E propeller gear
R vacuum pump or
hydraulic governor
for constant speed
propeller
T intake manifold
Y ignition housing
Ill. 2
J 2x pressure sensor
K connection for mechanical
rev-counter
L connection for additional
temperature sensor (airbox)
: drip tray
a water trap
s three way solenoid valve
d 2x electric fuel pump
f oil tank
g external alternator
o connection for oil return line
(engine)
p connection for oil return line
(turbo)
[ oil filter
] electric starter
A electronic modules for
ignition
S compensation tube
D connection for manifold
pressure
F sensor for oil pressure
G sensor for oil temperature
H sensor for cylinder head
temperature
