13.3) Requirements on the oil- and venting lines
Oil lines
Oil circuit, engine (main oil pump)
➪ Temperature durability: mind. 130°C (266 ° F)
➪ Pressure durability: mind. 10 bar (145 p.s.i.)
➪ Bending radius: mind. 70 mm (2,75 in.)
➪ Minimum inside dia. of oil lines in reference to total length
length up to ...1m (3 ') min. 11 mm ø (.43")
length up to ...2 m (6' 6") min. 12 mm ø (.47")
length up to ...3 m (10') min. 13 mm ø (.51")
Oil circuit, turbo charger (suction pump)
➪ Temperature durability: mind. 130°C (266 ° F)
➪ Pressure durability: mind. 10 bar (145 p.s.i.)
➪ Bending radius: mind. 70 mm (2,75 in.)
➪ Minimum inside dia. of oil lines in reference to total length
length up to ...1m (3 ') min. 11 mm ø (.43")
length up to ...2 m (6' 6") min. 12 mm ø (.47")
Venting line of oil tank
See ill. 22.
➪ Route the line without kinks and avoid sharp bends.
◆ NOTE: Water is a by-product of combustion. Most of this water will dissipate
from the combustion chamber with the exhaust gases.
A small amount will reach the crankcase and has to be disposed
through the venting line of oil tank via oil return line.

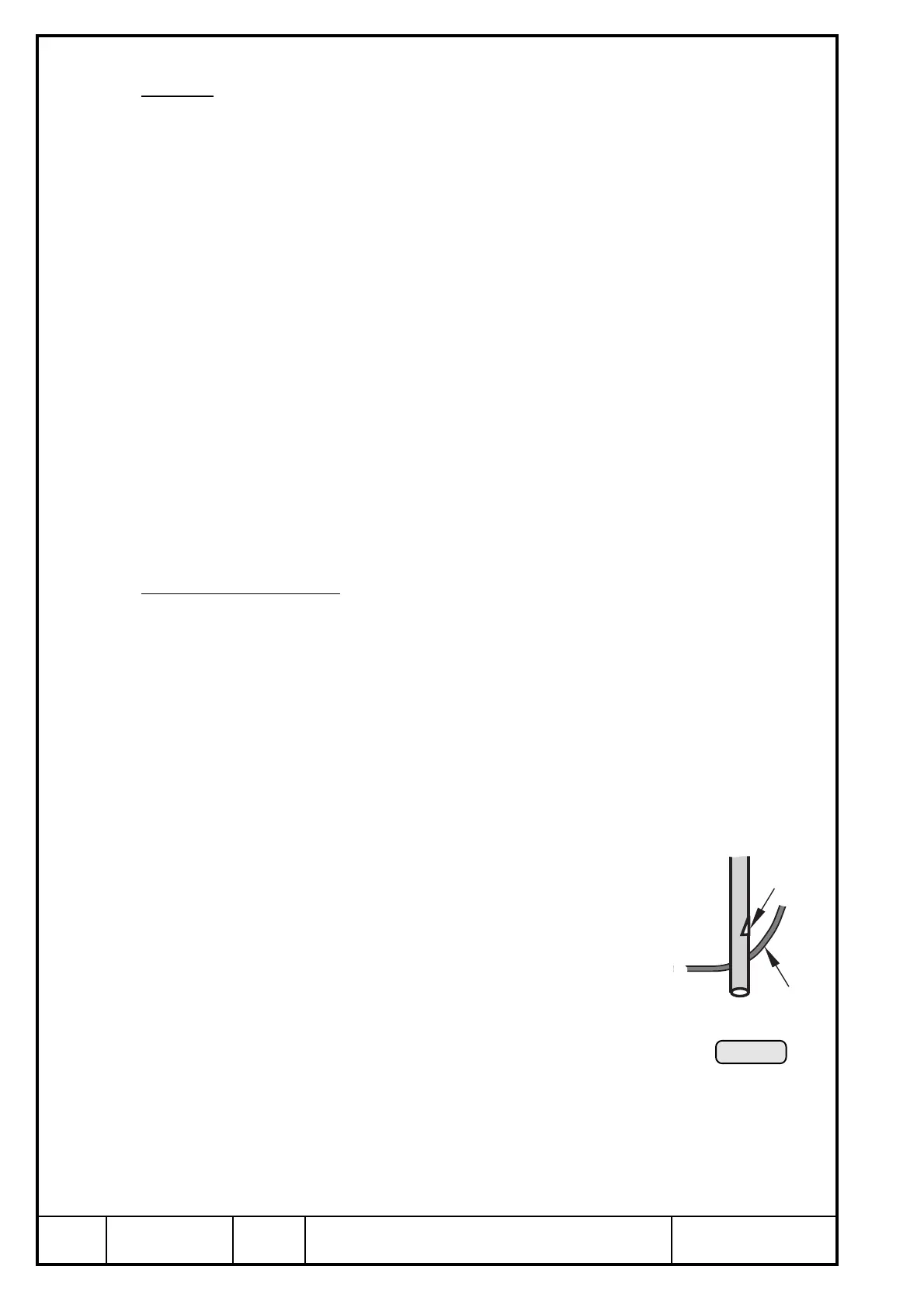

➪ The venting line must be routed in a continuous decline or furnished with a drain
bore at it's lowest point to drain possible condensate.
➪ The venting line has to be protected from any kind of ice
formation in the condensate. Protection by insulation, or routing
in a hose with hot air flow or by furnishing venting line with a
bypass opening Q before passing through cowling W. See ill.
23.
